Fruit Food Containers Thermoforming Machine
Model: TTF-520A
Station：Three station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-2mm
Forming Speed (Max.): 40times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
TTF-SERIES plastic thermoforming machine is forming-punching-cutting and stacking in one line. Our company 's multi-station hot forming machine can produce disposable plastic products widely used in food, cosmetics, electronics, hardware, toys, technology, medicine, health care products, daily necessities, stationery and other industries inside and outside packaging ; Various trays : fruits and vegetables / salad / eggs / meat / seafood trays Pet food containers Pastry, cooked food, chocolate, ready-to-eat food, margarine and other food used to plastic containers. Breeding plate, seedling plate, biodegradable fast food box.
Fruit Food Containers Thermoforming Machine of Paramonters：
| Model | TTF-520A |
| Station | Three station |
| Mould Size (Max.) | 520*400mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 40times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 120Kw |
| Heating power | 75Kw |
| Procedure | Forming-cutting-stacking |
| Dimension | L9300*W4200*H2800mm |
| Weight | About 9.0T |
Application for Fruit Food Containers Thermoforming Machine:
TTF series full-automatic thermoforming machine(fruit food containers thermoforming machine) is our latest developed core product. The machine combines forming, cutting, and stacking into process. widely used and suitable for most of the customer requested.This types of machine also use the servo motor,it will improve the effcient of the finished products.This machine is widely used by some plastic field,it can produce the plastic food containers,fruit food containers etc.
SUMMARY OF MACHINE
1. Every station is driven by the eccentric crank linkage structure.
2. Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.
3. The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.
4. The machine adopts PID temperature system, it shows high precision, and temperature control tolerance ＜1℃.
5. There is a rapid mould change device, which shortens the time for mould change extremely.
6. Each servo motor has overload protection for machine's overworking.
7. Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.
8. There is an alarm function of the sliding doors.

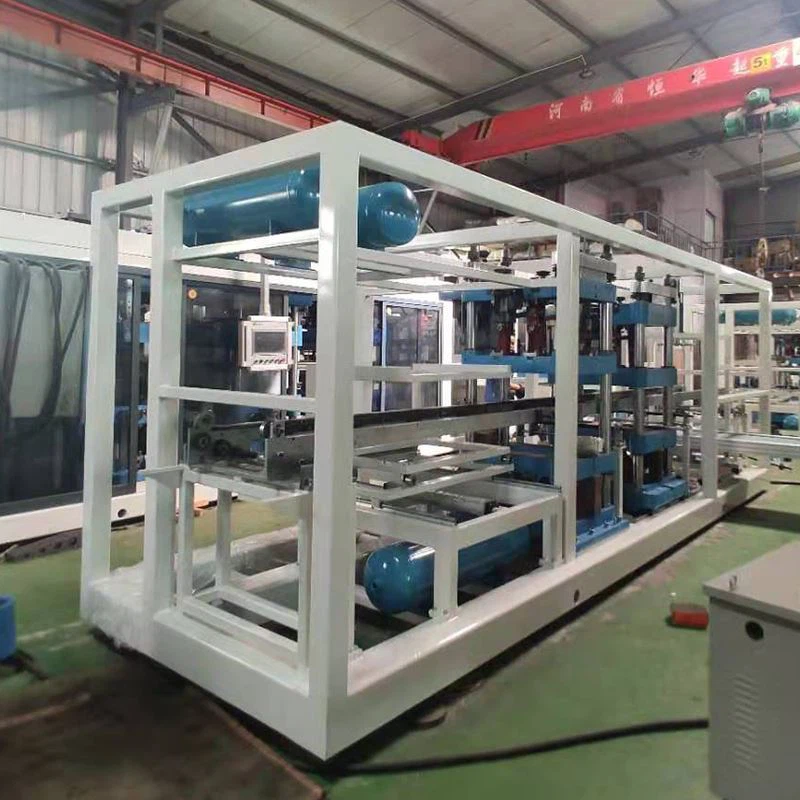

Structure & Design
Feeding Device
Heating Device
Operation Screen

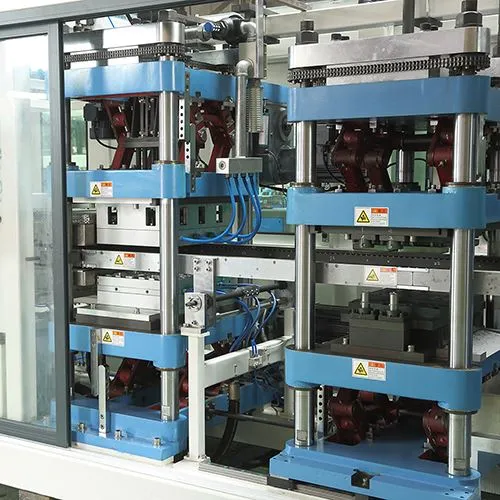

Forming Station
Cutting Station
Stacking Station
FAQ:
Q: Are you a factory or trading company?
A：We are a factory, and we export our machines to more than 80 countries since 2001.
Q: How does your factory do regarding quality control?
A: We have a professional QC department in charge of products' quality.
Q: How long will the machine finished?
A: In oridinary cases,the production period of one machine is around 2-3 month.
Q:Can we arrange inspection when the machine finished?
A: Yes,of course,when the machine finished,customer need to arrange inspection with us.
