TTF-520A Full Automatic Three-Station Plastic Thermoforming Machine

The three-station positive and negative pressure thermoforming machine is an efficient and automatic production machine to produce disposable trays, lids, lunch boxes, folding boxes and other products. This thermoforming machine has three stations, which are forming, cutting and palletizing. When forming, the plastic sheet is first heated to a temperature that makes it soft and malleable. Then, through the shape of the mold and the action of positive and negative pressure, the plastic material is formed into the desired product shape. Then the cutting station can accurately cut the formed plastic products according to the shape of the mold and the size of the product. The cutting process is automated to ensure cutting accuracy and consistency. Finally, there is the stacking and palletizing process. The cut plastic products need to be stacked and palletized according to certain rules and patterns. The three-station positive and negative pressure thermoforming machine can improve production efficiency and product quality through precise control of heating parameters and pressure, as well as equipped with cutting and automatic palletizing systems, to meet the market's demand for disposable plastic products, and also bring convenience and benefits.

Full Automatic Three-Station Plastic Thermoforming Machine of Parameter:

Application:

TTF series full-automatic thermoforming machine is our latest developed core product. The machine combines forming, cutting, and stacking into process. widely used and suitable for most of the customer requested, it can produce plastic trays, containers, boxes, lids, etc . The machine is completely driven by servo motor. stable operation, low noise, high efficiency, high quality.

Punching station

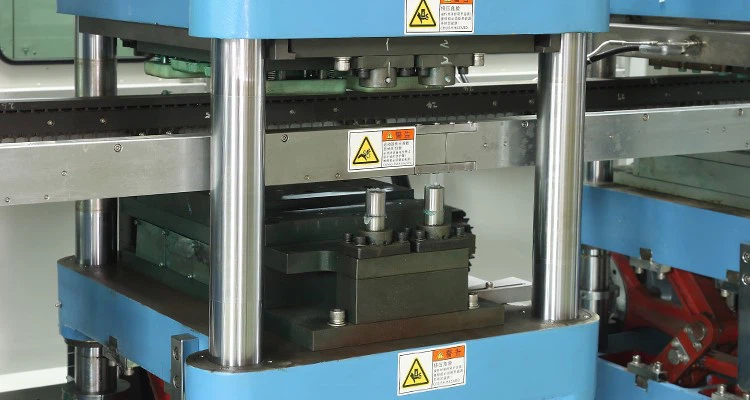

Working stations is driven by stable four guiding-pillars (GCr15 steel, outside is hard chrome plated) structure. Wear resistant, and extend equipment life.

Working station

Working station, sheet feeding and rolling part all completely driven by servo motor system, more accurate and efficient.

Ceramic heater

The ceramic heater (Germany·ELSTEIN) added vacuum insulation cotton, it shows quick response rate, short processing time, and save energy.

Console

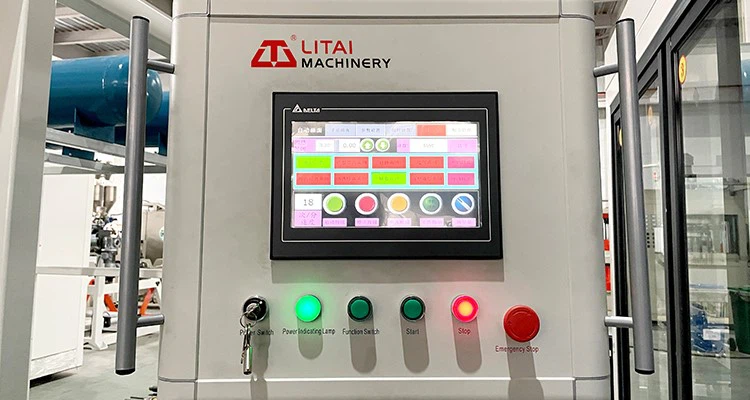

Industrial manual interface (Delta) has storage function. All parameters can be stored in recipes, it is convenient for the next-time operation.

SUMMARY OF MACHINE

1. Every station is driven by the eccentric crank linkage structure.
2. Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.
3. The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.
4. The machine adopts PID temperature system, it shows high precision, and temperature control tolerance ＜1℃.
5. There is a rapid mould change device, which shortens the time for mould change extremely.
6. Each servo motor has overload protection for machine's overworking.
7. Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.
8. There is an alarm function of the sliding doors.
