Product Introduction

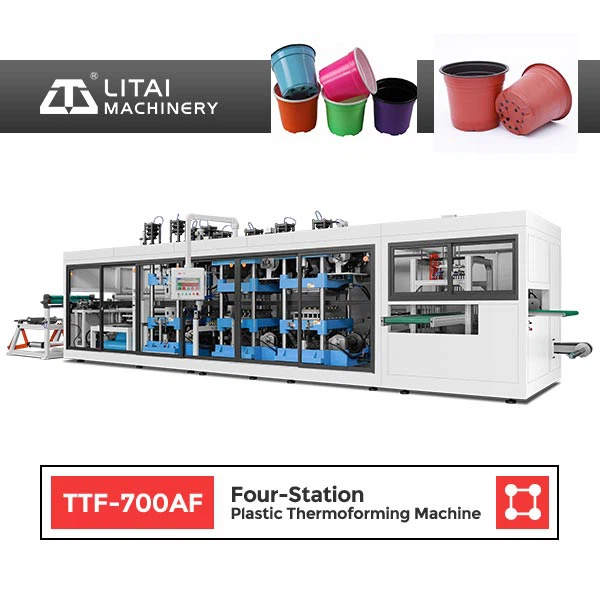

Plastic flower pot thermoforming machine
Application:
Plastic flower pot thermoforming machine is used to producing flower pot with hole or without hole
Features
①. The machine is full automatic only needs one labor to operate the whole machine②. Energy heater is imported from ELSTEIN Germany which saves 40% energy③. PLC and touch screen uses Delta brand④. stacking station uses servo motor and also has the counting function⑤. For cutting blade, it is imported from Japan and Australia⑥. the distance for each station can be adjusted7. Upper mould and lower mould are also driven by servo motor
Station
Four stations
Three station
Four stations
Three station
Model
TTF-700AF
TTF-700A
TTF-520AF
TTF-520A
Forming Area
700mm x 600 mm
520mm x 400 mm
Forming Depth (Max.)
135mm
110mm
Sheet thickness
0.2-2.0mm
Forming Speed (Max.)
30times/min
Air pressure
0.6-0.8mpa
Air consumption
3.6 m³/min
3.0 m³/min
Water consumption
0.7 m³/h
Sheet width (Max.)
730mm
570mm
Suitable Sheet
PP, PS, HIPS, PET, PVC, PLA etc.
Power supply
AC 380V, 50Hz, Three-phase, Four-wire
Used power
105Kw
95Kw
55Kw
50Kw
Rated power
210Kw
190kw
110Kw
100Kw
Heating power
118Kw
75Kw
Procedure
Forming-punching-cutting-stacking
Forming-cutting-stacking
Forming-punching-cutting-stacking
Forming-cutting-stacking
Dimension
L13000*W4700*H2750mm
L11500*W4700*H2750mm
L11000*W4600*H2700mm
L9700*W4600*H2700mm
Weight
About 25.0T
About 19.0T
About 11.0T
About 9.0T

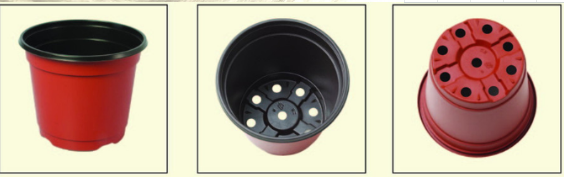

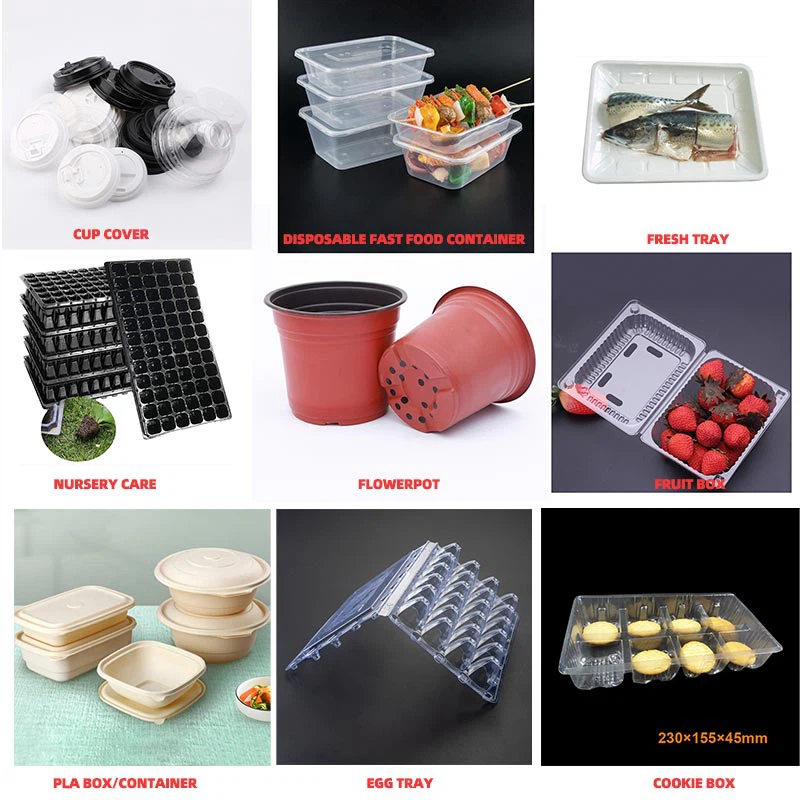

Sample:

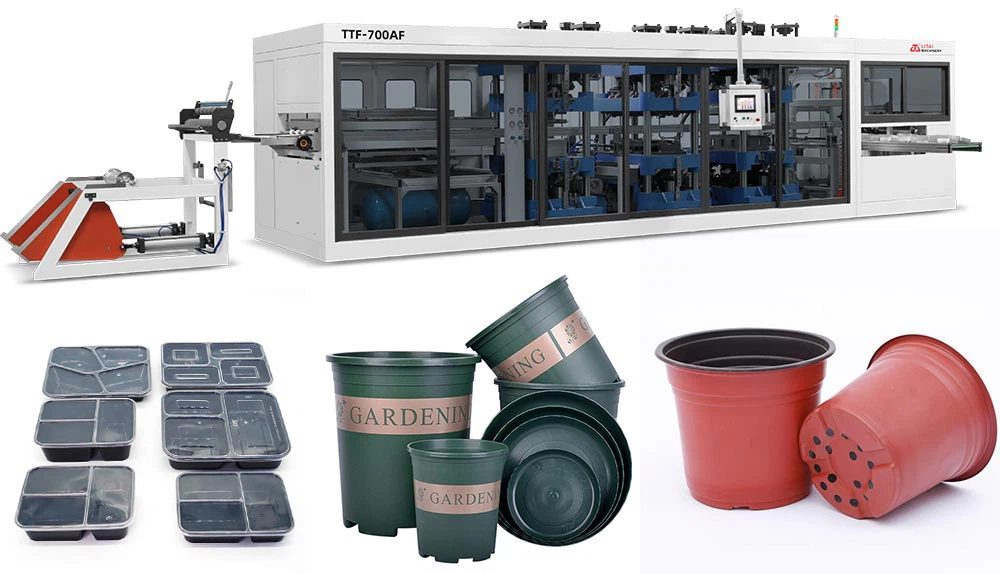

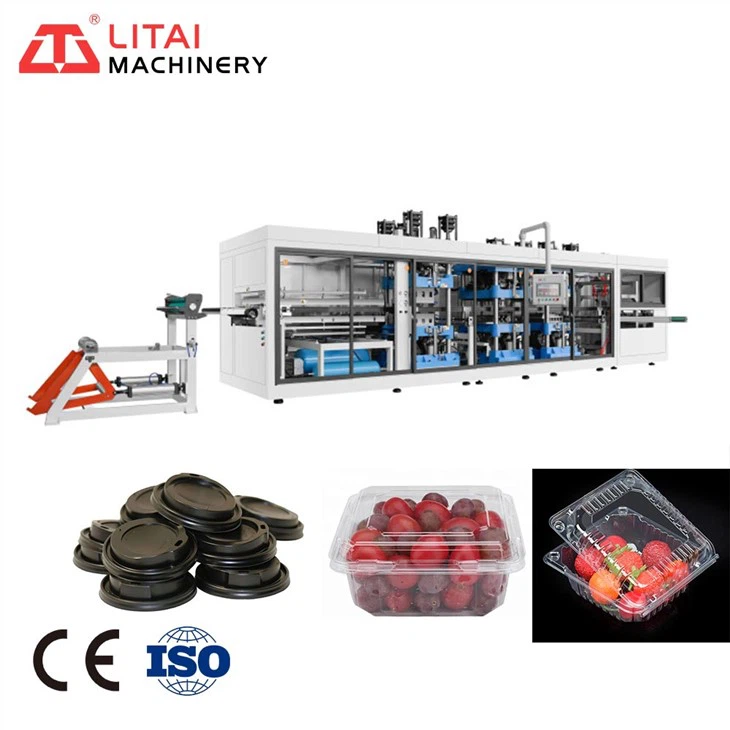

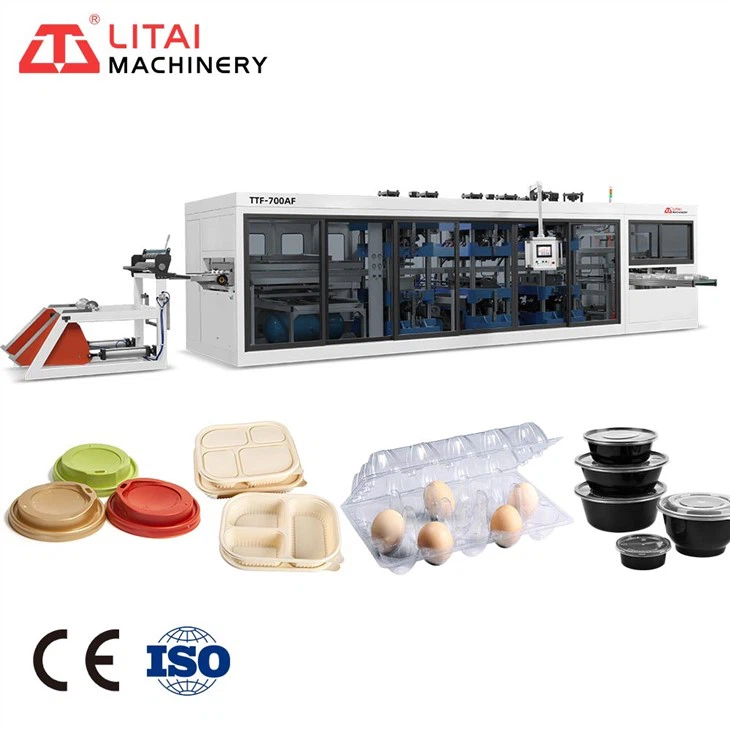

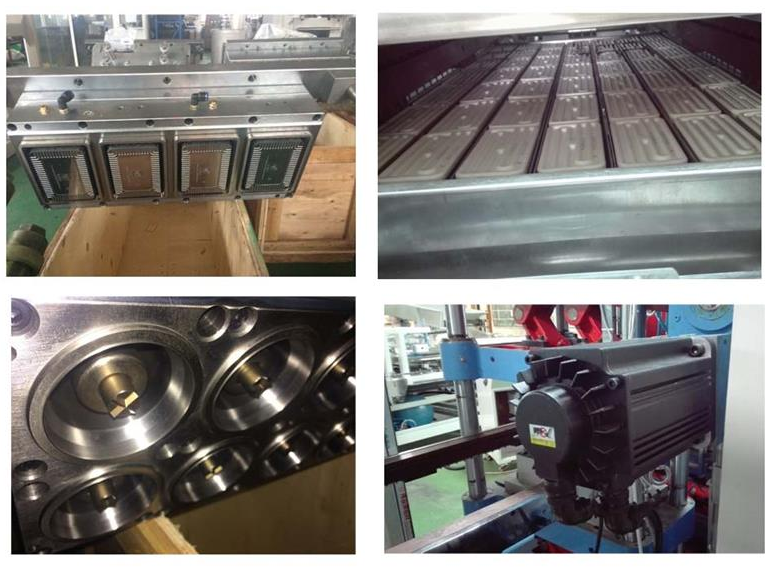

Machine detail
Exhibition
