High quality Plastic Container Forming Machine

High quality Plastic Container Forming Machine is suitable to handle different materials, such as A-PET, R-PET, C-PET, HIPS, PP, PLA, PVC, and barrier material, and to produce many items: trays, lids, fruits, and vegetable boxes, flower pots, clamshells, nursery trays, and plates. It can make some products that are unable to be made in one station thermoforming machine, like for example PLA products, plastic lids or containers which has holes, packing containers (fruit box, egg trays) with body and cover connected, etc.

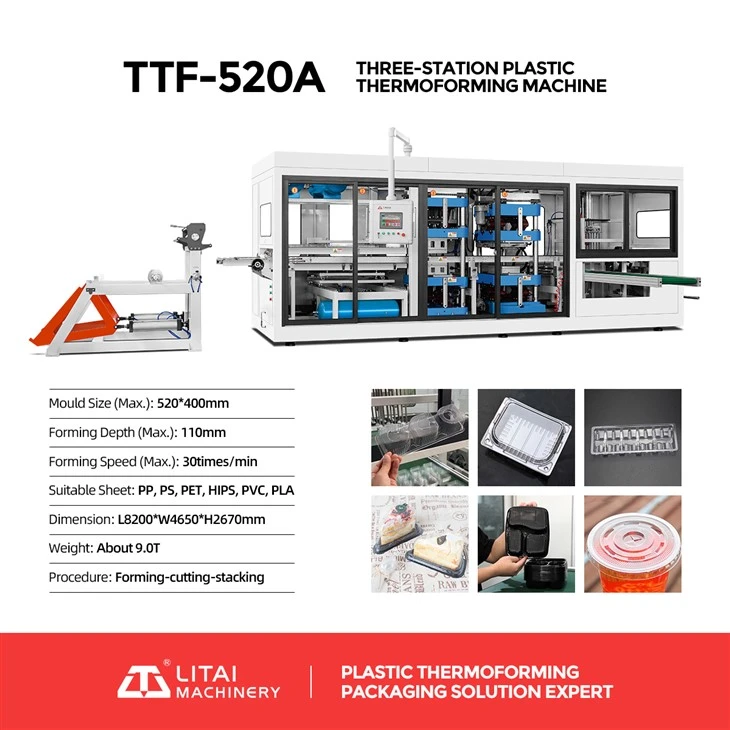

Plastic Container Forming Machine Technical Parameters

Plastic Container Forming Machine for APPLICATION

Plastic container forming machine is forming, cutting and stacking in one process. It produces lids, trays, egg trays, biscuit container, cake box, fruit trays and etc.



Machine detail

Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency

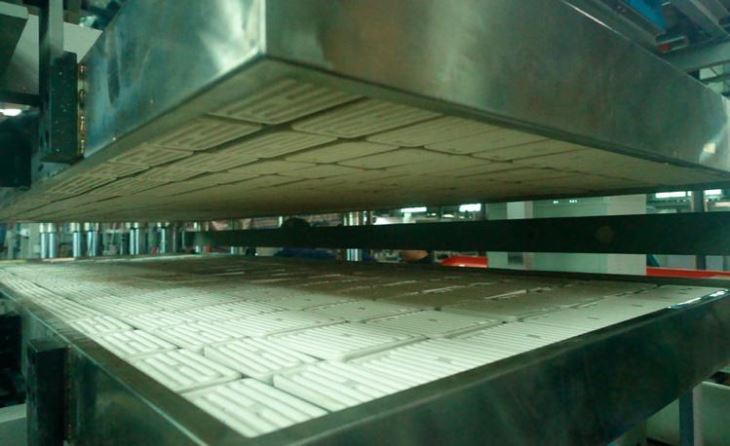

Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

Operation Screen

Live Data Display – Shows temperature, pressure, and cycle status in real time.

mergency Stop & Alarms – Ensures quick response to operational hazards.

Multi-Language Support – Accommodates global operators

Forming Station

Max mould size:520*400mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

Stacking Station

Different stacking schemes can be formulated according to the customer's requirements.

Waste Recycling

Edge trim is fed to the waste rewinding system for recycling. Its special clutch automatically cuts power when the roll becomes too large, preventing overload and extending motor lifespan.

FAQ

1. Can this thermoforming machine handle both vacuum and pressure forming methods?

Yes, the thermoforming machines support both vacuum forming and pressure forming techniques, allowing flexible production depending on mold complexity.

2. What thermoplastic materials are compatible with these thermoforming machines?

These machines are compatible with a wide range of thermoplastics including PET, PVC, Polypropylene (PP), and Polystyrene (PS).

3. Are fully automatic configurations available for these thermoforming machines?

Yes, the product range includes manual, semi-automatic, and fully automatic thermoforming machines featuring automatic sheet feeding, cutting, stacking, and inline quality control.

4. What industries commonly use these thermoforming machines?

Industries such as food packaging, automotive manufacturing, medical devices, electronics, and consumer goods extensively utilize these thermoforming machines.

5. How does the machine ensure precision for complex mold shapes?

The machines use precise temperature control and pressure regulation, combined with high-quality molds to achieve detailed and consistent product shapes.
