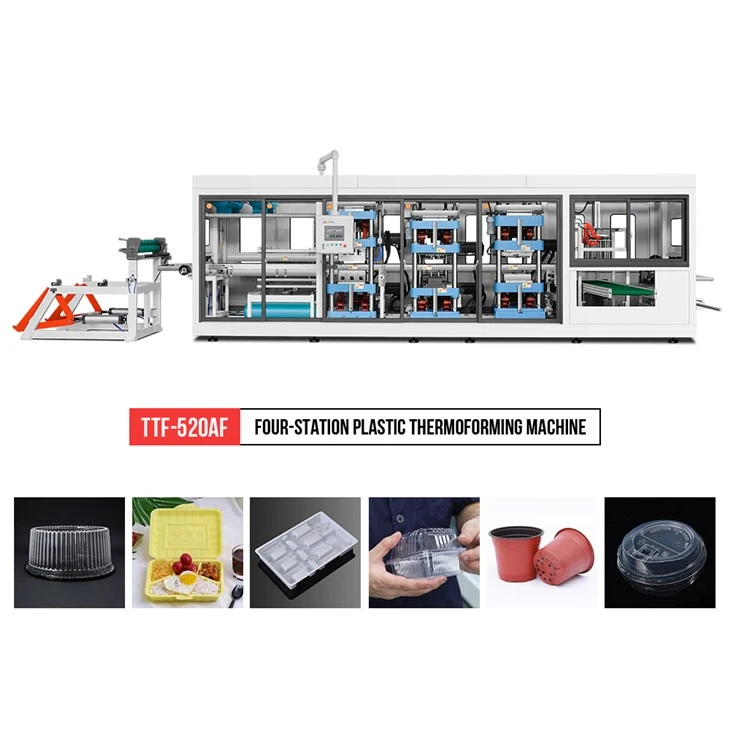

Four Station Multi-station Machine

Four Station Multi-station Machine is forming and cutting incorporated machine designed by our company is all-powerful. The main way is vacuum forming as well as press forming and synthetical forming. It can be used for forming kinds of plastic sheet. This machine adopt PLC control, it has group possesses reliable stability, large forming area, high production and automatic degree. The machine can mainly forming the PSP material which is used to produce food container, tray, bowl, cup etc. Forming, cutting, stacking are done in the same machine, saving labor, improving efficient, lowing labor intensity and reducing production cost. Production process is to put foam sheet into forming machine, and product and wastage will come out from the rear part.
Four Station Multi-station Machine is suitable for processing different materials, such as PP, PS, HIPS, PET, PVC, PLA etc. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.

Parameter of Four Station Multi-station Machine

SAMPLES

It is used to form plastic sheets such as PP PS HIPS PVC PET, etc. It can be widely used in the production of various plastic boxes, containers and other plastic products, such as ice cream cups, milk cups, chocolates, packaging boxes, candy boxes, fast food boxes, food boxes, etc.



Structure & Design

Feeding Device

Labor & Cost Savings
Improved Efficiency & Productivity
Able to work with double roll
Max.roll diameter: 1000mm

Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

Operation Screen

Live Data Display – Shows temperature, pressure, and cycle status in real time.

mergency Stop & Alarms – Ensures quick response to operational hazards.

Multi-Language Support – Accommodates global operators.

Forming Station

Max mould size:520*430mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

Punching Station

Servo motor driven, punching holes more accurate and complete Long-life, durable needle

Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

Stacking Station

Different stacking schemes can be formulated according to the customer's requirements.

Waste Recycling

Edge trim is fed to the waste rewinding system for recycling. Its special clutch automatically cuts power when the roll becomes too large, preventing overload and extending motor lifespan.

FAQ

1: What is a thermoforming machine used for?

A thermoforming machine is primarily used to shape plastic sheets into custom packaging, trays, containers, and product components. It is widely applied in industries such as food packaging, medical device production, automotive parts, and consumer goods. By heating plastic sheets and forming them over molds, thermoforming machines provide high-efficiency, cost-effective, and precise plastic forming solutions suitable for large-scale manufacturing.

2: What type of plastic is used for thermoforming?

The most commonly used plastics for thermoforming include PP, PS, HIPS, PET, PVC, PLA etc. These materials are selected for their excellent moldability, durability, and clarity, making them suitable for packaging, trays, and protective components. Material choice depends on factors such as product application, temperature resistance, and food safety requirements, ensuring reliable performance in industrial and consumer applications.

3: Is thermoforming safe for food packaging?

Yes, thermoforming is safe for food packaging when using FDA-approved plastics such as PET, PP, or PS. Thermoformed containers and trays provide hygienic, durable, and customizable solutions for fresh, frozen, and processed foods. Proper selection of materials and adherence to food safety standards ensure that thermoforming machines produce compliant packaging suitable for commercial and retail food applications.
