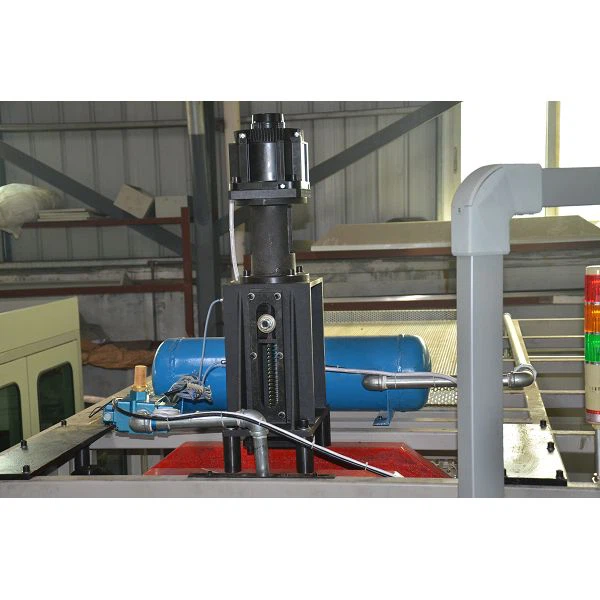

Plastic Air Pressure Thermoforming Machine

Model: TQC-650B
Mould Size (Max.): 650mm x 300 mm
Forming Depth (Max.): 125mm/180mm
Sheet width (Max.): 660mm
Main Motor Power: 98Kw
Heating power: 78KW
Dimension: L7000 x W2000 x H3100mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials

Send Inquiry

Product Introduction

Plastic Air Pressure Thermoforming Machine adopts servo motor for sheet feeding and stretching, PLC for program, touch screen for operation, stable, low noise, high efficiency. It is suitable for making the following products. cup bowl, lid tray container
The TQC-650B is a versatile Plastic Thermoforming Machine for PP, PS, HIPS, PET, PVC, PLA etc. Fully automatic PLC control for making cups, bowls, and lids. Speed: 35 cycles/min.

Parameters of Plastic Air Pressure Thermoforming Machine

Model	TQC-650B
Mould Size (Max.)	650*300mm
Sheet width	660mm(Max)
Max. Forming Depth	125-180mm(custom height)
Max. Forming Speed	30times/min
Sheet Thickness	0.3-1.8mm
Suitable Sheet Width	660mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Air Pressure	0.6-0.8mpa
Air Consumption	2.0m³/min
Water Consumption	0.5m³/h
Rated Power	98Kw
Heating Power	78Kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L7000W2000H3100mm
Weight	About 6T

Structure & Design

Material Conveying System

The sheet is smoothly guided into the conveyor chain through transition rollers, ensuring simple operation and more uniform heating across the sheet area.

Heating Device

Two brands of heating tiles are available to meet the needs of customers with different budgets. The heater is added with vacuum insulation cotton, which has fast heating feedback, short heating time and energy saving.

Forming Station

TQC-650B uses in-mold cutting technology, forming and cutting are done at the same station, the product cutting effect is better. The integrated station saves the machine's floor space and reduces customer costs.

Operation Screen

Operator-friendly HMl, and the system has the function of remote connection. lntelligent operation, the whole machine is equipped with formula storage and automatic adjustment without shutdown.

Waste Recycling

We have installed a waste reel device under the machine to reel up waste plastic sheets, making it easier for customers to handle waste sheets and reducing labor waste.

Belt-Type Cup Stacker

Optional belt-type cup stacker automatically arranges cups neatly as they drop into the machine, reducing the need for manual cup handling.
