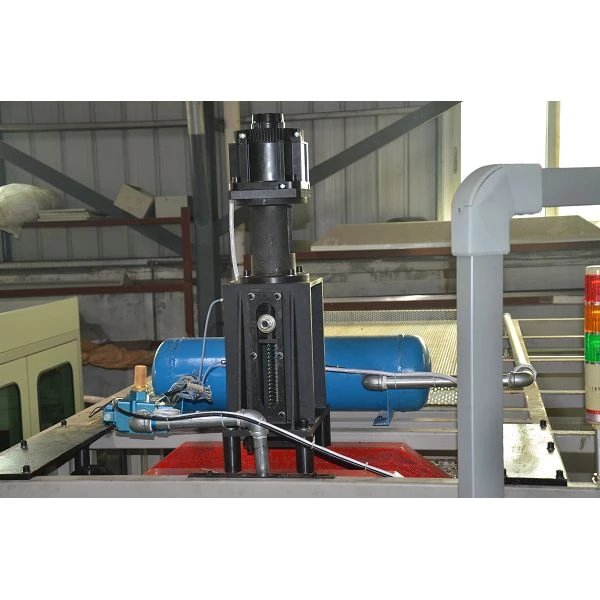

Automatic Tray Thermoforming Machine

Automatic tray thermoforming machine line adopts servo motor for sheet feeding and stretching, PLC for program, touch screen for operation, stable, low noise, high efficiency. It is the best choice for producing different kinds of plastic products.

The TQC-650B is a versatile Automatic tray thermoforming machine for PP, PS, HIPS, PET, PVC, PLA etc. Fully automatic PLC control for making cups, bowls, and lids. Speed: 35 cycles/min.

SAMPLES

Equipped with a cup stacking machine

Our hydraulically-driven plastic cup thermoforming machine features modular design, compatible with belt-type cup stackers (for cups) or robotic pick-and-place systems (for containers) to enable intelligent stacking and sorting. This fully integrated production line automates the entire process from forming to stacking and packaging, reducing manpower from4-6 operators to just 3-slashing labor costs by over 30% while boosting output by 20-50% (adjustable based on configuration).The system enhances hydraulic stability and mold-change efficiency, ensuring 24/7 continuous production with a defect rate below 0.3%. (Key advantages: flexible automation, high uptime, and precision manufacturing.)

Structure & Design







Feeding Device

The servo motor-driven automatic loading rack and the double sheet holding station can replace the new sheet roll without stopping the machine, which improves efficiency and saves time.







Heating Device

Two brands of heating tiles are available to meet the needs of customers with different budgets. The heater is added with vacuum insulation cotton, which has fast heating feedback, short heating time and energy saving.





Forming Station

TQC-650B uses in-mold cutting technology, forming and cutting are done at the same station, the product cutting effect is better. The integrated station saves the machine's floor space and reduces customer costs.





Hydraulic Drive

Exclusively used to drive the lower mold upward to close with the upper mold for product forming.



Waste Recycling

We have installed a waste reel device under the machine to reel up waste plastic sheets, making it easier for customers to handle waste sheets and reducing labor waste.



Belt-Type Cup Stacker

Optional belt-type cup stacker automatically arranges cups neatly as they drop into the machine, reducing the need for manual cup handling.
