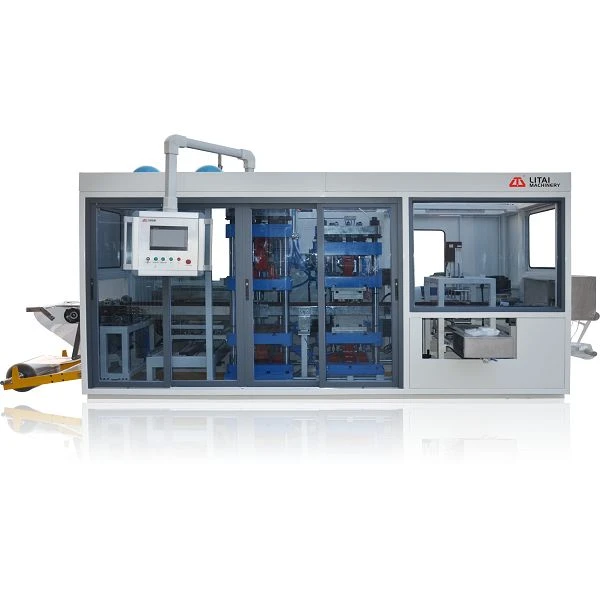

Three Station Plastic Thermoforming Machine
Model: TTF-700A
Max.Forming Area: 700*550 mm
Max.Forming Height: 120mm
Sheet thickness：0.2-1.6mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.

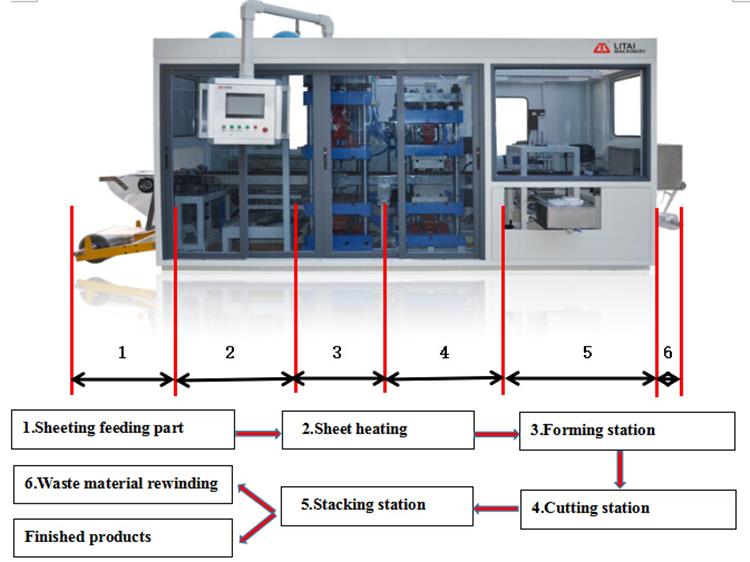

Three Station Plastic Thermoforming Machine uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product transportation, and edge material winding.

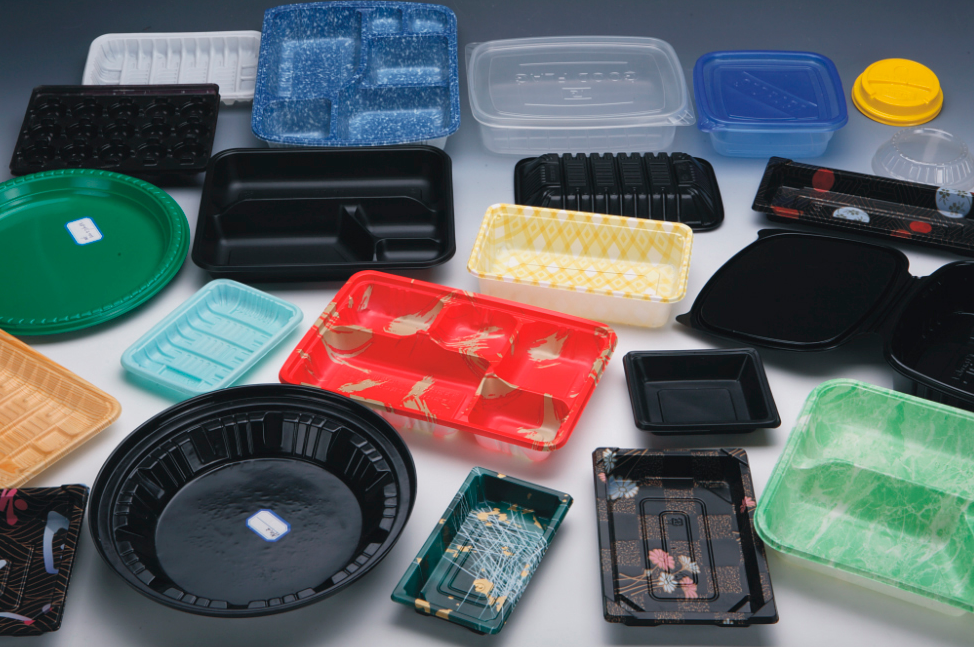

It is suitable for processing different materials, such as PP, PS, HIPS, PET, PVC, PLA etc. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.
Parameters of Three Station Plastic Thermoforming Machine:
| Model | TTF-700A |
| Station | Three station |
| Mould Size (Max.) | 700*600 mm |
| Forming Depth (Max.) | 120mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 35times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.6m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 730mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 188Kw |
| Heating power | 118Kw |
| Procedure | Forming-punching-cutting-stacking |
| Dimension | L11500*W4500*H2800mm |
| Weight | About 19.0T |
Application of Three Station Plastic Thermoforming Machine:
TTF-700A thermoforming machine is forming, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency, suitable for producing plastic trays, containers, boxes,lids,etc.
Characters:
1)Touch screen,PLC and servo motor adopts delta brand from Taiwan.
2)Heaters adopts "Elstein " from Germany,vacuum insulation cotton save more energy.
3)Forming,cutting,stacking working station and sheet feeding all adopts servo motor,Delta brand from Taiwan.

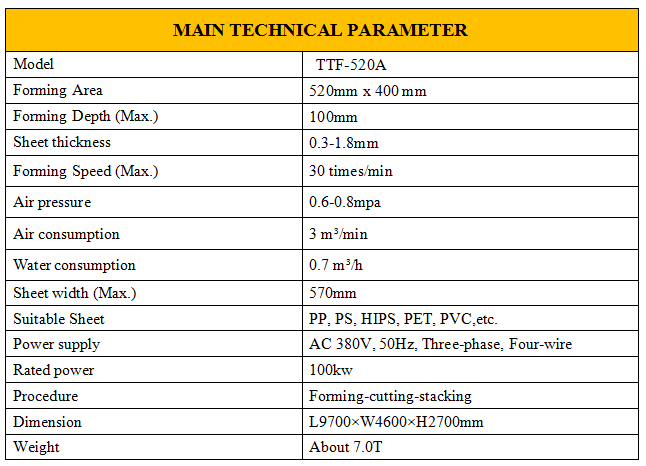

Specification:
|
FAQ |
|
|
Questions |
Answer |
|
The core strengths of the machine |
Patent product,new generation driven way,special energy-saving. |
|
What's the output |
TTF-400/TTF-520/TTF-780 series, according to your quantity requirement ,then choice the suitable one |
|
Machine adjustment and installation |
We can send technicians go to customers' country for machine adjustment and installation |
|
Guarantee time and after-sale |
One year guarantee time, after one year , we have professional after-sales department providing best service if any problems. |
