Three-Station Plastic Thermoforming Machine

TTF-520A is LITAI MACHINERY's star product, It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product transportation, and edge material winding. Its aluminum rail and chains bring higher heating-resistance.As for heating area,its uniform heating brings high efficiency. Lower noise,high effciency,high speed,easy to adjust stretching stroke and other advantages push TTF-520A a useful and popular machine. Equiped with chiller,air tank and air compressor,surely TTF-520A is a wothy choice for every client.
It is suitable for processing different materials, such as PP, PS, HIPS, PET, PVC, PLA etc. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.

Parameters of Three-Station Plastic Thermoforming Machine

Plastic Cup Forming Process

As shown in the figure below, the production process of plastic cups roughly includes sheet extrusion, heating, forming and trimming, stacking, forming, etc. A plastic cup making machine can complete the process from heating to forming the sheet. Sheet extruders process plastic pellets into sheet rolls.

Configuration Details

HMI touchscreen

User-friendly interface for full machine control

Large memory capacity with strong data storage functions

The operating language can be customised

Material loading

Automatic loading system powered by air cylinder

Stable and precise sheet feeding

Max. feed roll diameter of 1000mm

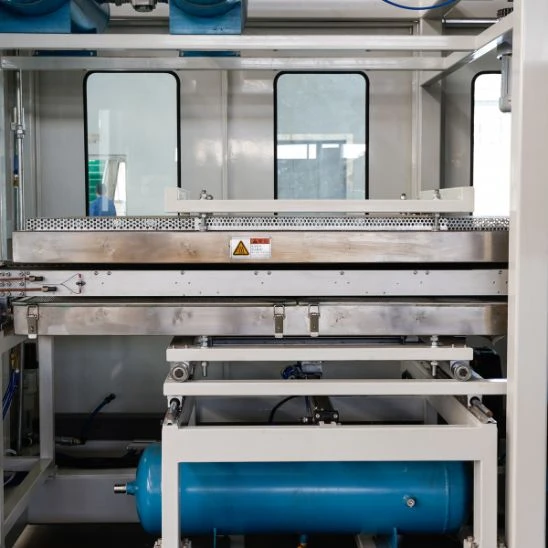

Heating system

Heating boards with integrated heating rods for fast, continuous heating

Low power consumption of 15-20 kW/h

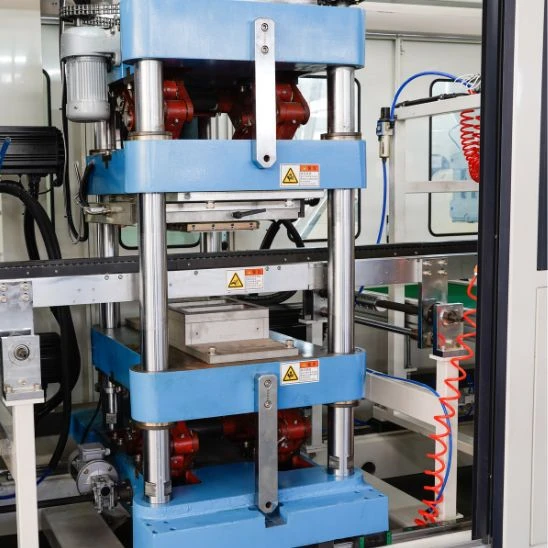

Forming station

Four-pillar support structure ensures stability
Upper and lower dies driven by fully servo-controlled system
Cutting dies employ premium laser blades; replace blades after 1.5-2 million cuts per mould

Chain-free feeding system

Full servo-driven feeding system

Static and dynamic auxiliary clamps for precise sheet handling

Eight guiding rollers ensure smooth sheet movement

Cutting station

Four-pillar support structure for stability
One-piece mold plates for accurate guiding
Upper and lower molds driven by full servo system
Quick mold change with safety lock mechanism

FAQ

1.Can this thermoforming machine handle both vacuum and pressure forming methods?
Yes, the thermoforming machines support both vacuum forming and pressure forming techniques, allowing flexible production depending on mold complexity.
2.What thermoplastic materials are compatible with these thermoforming machines?
These machines are compatible with a wide range of thermoplastics including PET, PVC, Polypropylene (PP), and Polystyrene (PS).
3.Are fully automatic configurations available for these thermoforming machines?
Yes, the product range includes manual, semi-automatic, and fully automatic thermoforming machines featuring automatic sheet feeding, cutting, stacking, and inline quality control.
4.What industries commonly use these thermoforming machines?
Industries such as food packaging, automotive manufacturing, medical devices, electronics, and consumer goods extensively utilize these thermoforming machines.
5.How does the machine ensure precision for complex mold shapes?
The machines use precise temperature control and pressure regulation, combined with high-quality molds to achieve detailed and consistent product shapes.
