Plastic packaging box forming machine production line

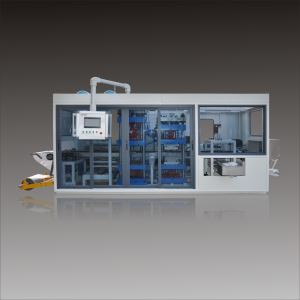

TTF-700AF is one of LITAI's hot sale models, totally driven by servo motor.And as a Plastic packaging box forming machine production line,it integrade four steps into one line. Its max forming are is 700mm*550mm,max sheet width is around 730mm,suitable for materials like PP,PS,HIPS,PET,PVC,PLA.Also, for Max forming depth is about 135mm,max forming spped is around 35 times per minute.Rated power 210Kw,and Wight about 25T.  It can produce various food packaging products such as plastic cups, plastic boxes, plastic plates, plastic trays, plastic bowls, and so on.
Square stell structure makes the machine more stable,automactic loading makes the machine efficient and convenient,and automatic feeding can reduce load of motor,improve precision of feeding dimension.Aluminum rail and chains provide with good running procedure.What's more:lower noise,high effciency,high spped,easy to adjust stretching stroke .With the auxiliary equipment of Chiller,air tank and air compressor,surely TTF-700AF will bring you greater feeling after use.

Parameters of Plastic Packaging Box Forming Machine Production Line

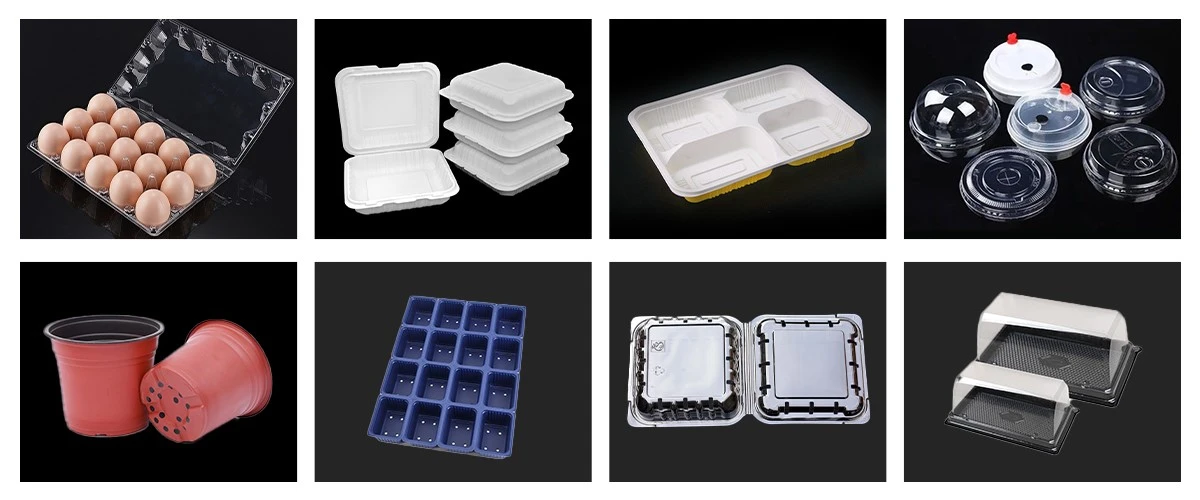

Finished Product Display

A plastic thermoforming machine is widely used in the processing of PP, PE, PVC, PS, PET, and other plastic sheets. It can produce various food packaging products such as plastic cups, plastic boxes, plastic plates, plastic trays, plastic bowls, and so on.

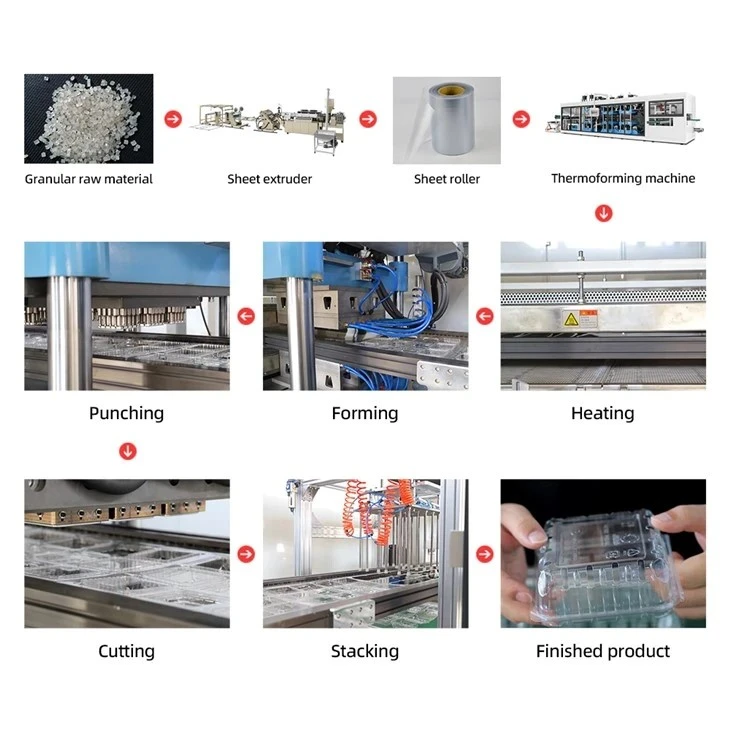

Plastic Cup Forming Process

The production of Plastic packaging box forming machine production line has roughly gone through forming, heating, plastic forming, edge trimming, stacking, and finished products. A plastic cup making machine can complete the process from heating to forming the sheet. Sheet extruders process plastic pellets into sheet rolls



Structure & Design

Feeding Device

Labor & Cost Savings
Improved Efficiency & Productivity
Able to work with double roll
Max.roll diameter: 1000mm

Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

Operation Screen

Live Data Display – Shows temperature, pressure, and cycle status in real time.

mergency Stop & Alarms – Ensures quick response to operational hazards.

Multi-Language Support – Accommodates global operators.

Forming Station

Max mould size:700*550mm
Max depth:120mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

Punching Station

Servo motor driven, punching holes more accurate and complete Long-life, durable needle

Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force



Stacking Station

Different stacking schemes can be formulated according to the customer's requirements.

Waste Recycling

The edge material is sent to the waste rewinding system for recycling by the conveying system.

FAQ

1. Can this thermoforming machine handle both vacuum and pressure forming methods?

Yes, the thermoforming machines support both vacuum forming and pressure forming techniques, allowing flexible production depending on mold complexity.

2. What thermoplastic materials are compatible with these thermoforming machines?

These machines are compatible with a wide range of thermoplastics including PET, PVC, Polypropylene (PP), and Polystyrene (PS).

3. Are fully automatic configurations available for these thermoforming machines?

Yes, the product range includes manual, semi-automatic, and fully automatic thermoforming machines featuring automatic sheet feeding, cutting, stacking, and inline quality control.

4. What industries commonly use these thermoforming machines?

Industries such as food packaging, automotive manufacturing, medical devices, electronics, and consumer goods extensively utilize these thermoforming machines.

5. How does the machine ensure precision for complex mold shapes?

The machines use precise temperature control and pressure regulation, combined with high-quality molds to achieve detailed and consistent product shapes.
