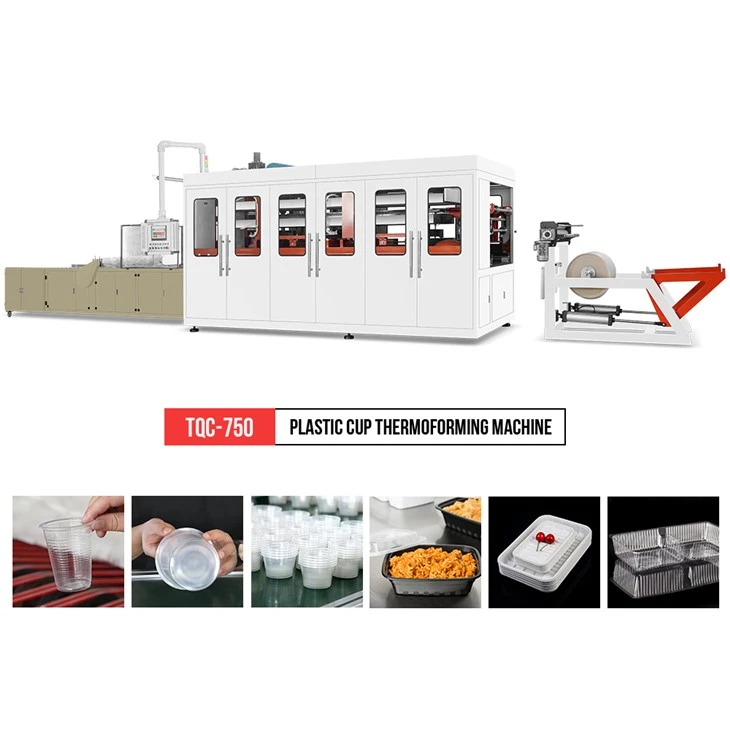

Plastic Water Cup Making Machine

Plastic Water Cup Making Machine


Model: TQC-750
Mould Size (Max.): 750mm x 480 mm
Forming Depth (Max.): 180mm
Sheet width (Max.): 770m
Main Motor Power: 188.55KW
Heating Power: 146KW
Dimension: L8500*W2200*H3200mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
Send Inquiry
Product Introduction

Plastic water cup making machine is a highly efficient equipment specially used for producing various plastic cups, beverage cups, disposable cups and other products. It adopts advanced automation technology, has the advantages of high precision, high efficiency, low energy consumption, etc., and can meet the needs of large-scale production. The machine is widely used in food, beverage, daily consumer goods and other industries, providing stable and reliable production solutions.

Plastic Water Cup Making Machine of Features:

  1. Automated Production: Fully automatic control with no manual intervention. Handles feeding, heating, molding, cooling, and demolding for consistent quality.
  2. Efficient Molding Technology: Advanced thermoforming with precise speed, pressure, and temperature control ensures smooth surfaces and perfect shapes.
  3. Multifunctional Production: Flexibly produces cups of different sizes and shapes, including standard cups and cups with lids.
  4. Energy Saving & Eco-friendly: High-efficiency motor and heating system save over 30% energy. Low emissions and noise pollution.
  5. High-Precision Mold Design: Customizable molds ensure dimensional accuracy and excellent appearance.
  6. Intelligent Control System: Touchscreen interface with fault self-diagnosis and alarm functions for safe, smooth operation.
  7. Stable & Durable: High-strength materials and robust structure for long-term stability and durability.

Plastic Water Cup Making Machine of Parameters

Model TQC-750
Mould Size (Max.) 750*480mm
Max. Forming Depth 125-180mm(custom height)
Max. Forming Speed 30times/min
Sheet Thickness 0.3-1.8mm
Suitable Sheet Width 770mm
Suitable Sheet PP, PS, HIPS, PET, PVC, PLA etc.
Air Pressure 0.6-0.8mpa
Air Consumption 3.0m³/min
Water Consumption 0.7m³/h
Rated Power 173Kw
Heating Power 146Kw
Power Supply AC 380V,50Hz, Three-phase, Four-wire
Dimension L8500*W2300*H3300mm
Weight About 8T

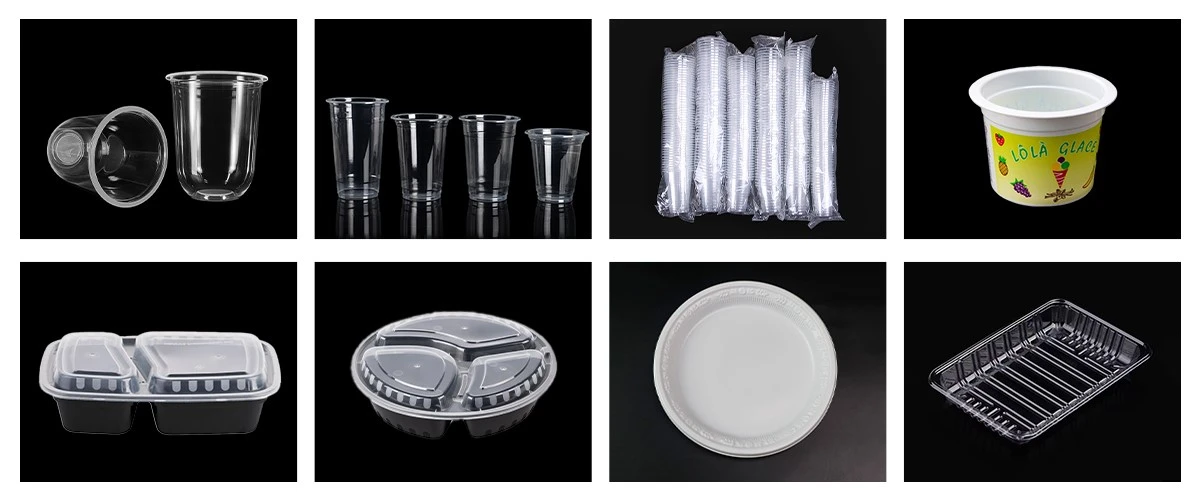

Plastic Water Cup Making Machine of Application

  • Food and beverage industry: used to produce various disposable beverage cups, juice cups, coffee cups, etc.
  • Daily consumer goods: produce plastic water cups suitable for home and office places.
  • Advertising and promotional products: customize various brand promotional cups or promotional cups according to customer needs.

product-1200-500

After-sales service:

We provide a professional after-sales service team, including equipment installation and commissioning, operation training, regular maintenance and troubleshooting services. After purchasing the equipment, customers enjoy a one-year warranty period, and can provide long-term technical support and services as needed.
