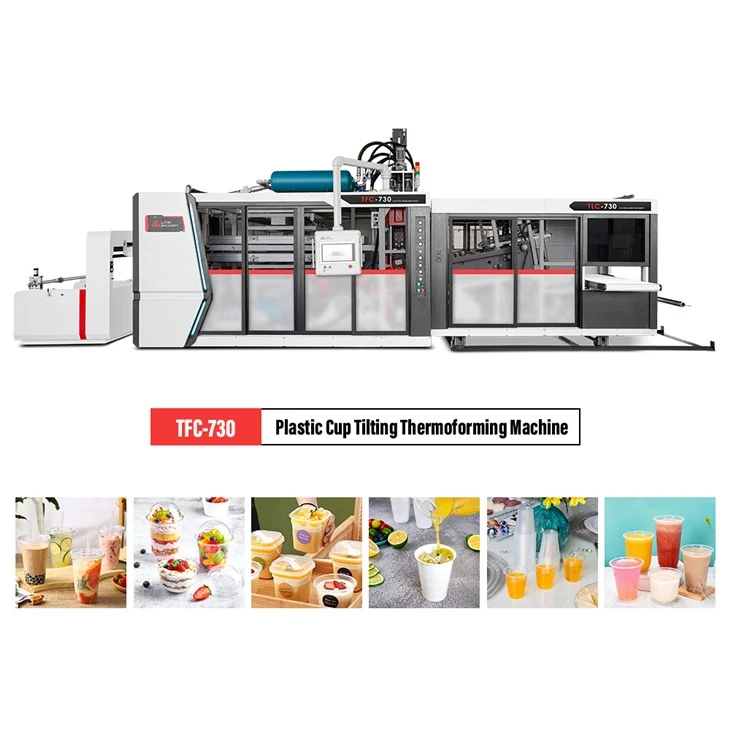

PLA Cup Making Machine
Model: TFC-730
Mould Size (Max.): 730×320mm
Forming Depth (Max.): 180mm
Sheet width (Max.): 510-760mm
No-load Speed: 48 Cycles/Min
Main Motor Power: 11.8KW
Heating power: 150.2KW
Dimension: L11000*W2900*H3500mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
PLA cup making machine is an efficient and environmentally friendly automated equipment specially used to produce environmentally friendly cups made of polylactic acid (PLA) material. PLA, as a degradable bioplastic, is widely praised as an environmentally friendly material because it comes from plants (such as corn, sugar cane, etc.), and has gradually become an ideal choice to replace traditional petroleum-based plastics. PLA cup making machine combines modern automation technology with precision technology to provide an efficient, green and reliable production solution, which is widely used in food and beverage packaging, disposable products and environmentally friendly product manufacturing.
PLA Cup Making Machine of Parameters
| Model | TFC-730 |
| Mould Size (Max.) | 730*320mm |
| Max. Forming Depth | 180mm |
| Max. Forming Speed | 16-42times/min |
| Sheet Thickness | 0.3-2.0mm |
| Suitable Sheet Width | 510-760mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.8-1.0mpa |
| Air Consumption | 4-5m³/min |
| Water Consumption | 15.6m³/h |
| Rated Power | 188.5Kw |
| Heating Power | 151.7Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L10700*W3000*H3215mm |
| Weight | About 15T |
PLA Cup Making Machine of Application

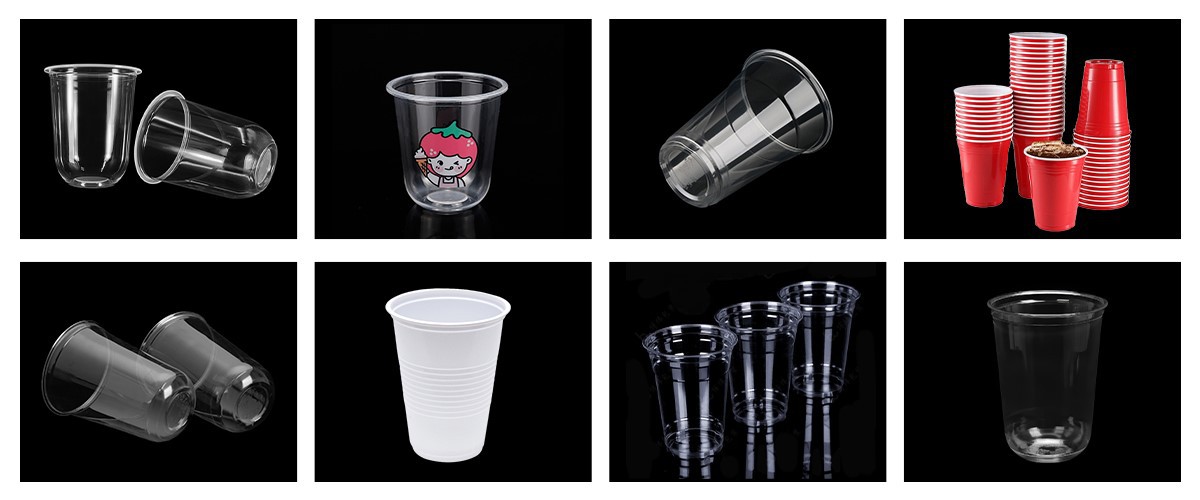

- Food and beverage industry: production of environmentally friendly cups for the catering industry, suitable for various packaging needs such as take-out, cold drinks, hot drinks, etc.
- Environmentally friendly products: production of various environmentally friendly disposable products, such as cold drink cups, hot drink cups, tableware, etc.
- Advertising and promotion: the cup body pattern can be customized as an effective carrier for corporate promotion and brand publicity.
- Household items: PLA cups can also be used to produce daily household items, such as small storage cups, pet food bowls, etc.
Structure & Design
Sheet Conveying
Heating device
Operation screen
Mould part
Flipping Cup Receiving Device
Cup Sweeping and Pushing Device
Cup Conveyor Belt
Waste Recycling
PLA Cup Making Machine for Features
Efficient production
Adopting advanced automation technology, the PLA cup making machine can achieve high-speed continuous production, greatly improving production efficiency and meeting the needs of large-scale production.
Precision control
Through the PLC control system and precise sensor equipment, the key parameters such as temperature, pressure and speed in the production process are accurately controlled to ensure the quality stability of the product.
Environmentally friendly material support
The equipment is specially designed for PLA materials and has good adaptability. It can efficiently process PLA cups of various specifications and shapes, and maximize the environmental advantages of PLA materials.
Energy-saving design
Adopting energy-saving motors and optimized heating systems, the PLA cup making machine reduces energy consumption while ensuring production speed and stability, which helps to save production costs.
Intelligent operation
Equipped with a touch screen operation interface, the operation is simple and intuitive, and remote monitoring and fault diagnosis can be performed through software, reducing human operation errors and improving production safety.
High-precision mold
The high-precision mold technology is used to ensure that the size and shape of each cup are consistent, reducing the scrap rate while improving the product's aesthetics and market competitiveness.
The PLA cup making machine, with its high efficiency, environmental protection and intelligent characteristics, meets the market demand for green and degradable packaging products, and is an important tool for the production of modern environmentally friendly products. Choosing a PLA cup making machine can not only effectively reduce production costs, but also help companies enhance their sense of social responsibility and respond to global environmental protection trends.
Hot Tags: pla cup making machine, China, suppliers, manufacturers, factory
