Plastic Coffee Cup Lids Machine

Model: TQC-650B
Mould Size (Max.): 650mm x 300 mm
Forming Depth (Max.): 125mm/180mm
Sheet width (Max.): 660mm
Main Motor Power: 98Kw
Heating power: 78KW
Dimension: L7000 x W2000 x H3100mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials

Send Inquiry

Product Introduction

Plastic coffee cup lids machine adopts servo motor for sheet feeding and stretching, PLC for programme, touch screen for operation, stable, low noise, high efficiency.it is used for forming PP,PS,HIPS,PVC,AND PET plastic sheets,which can be widely used to produce all kinds of plastic boxes,containers and other plastic wares,such as ice-cream cups,milk cups,chocolate package boxes,candy boxes and fast-food boxes etc.

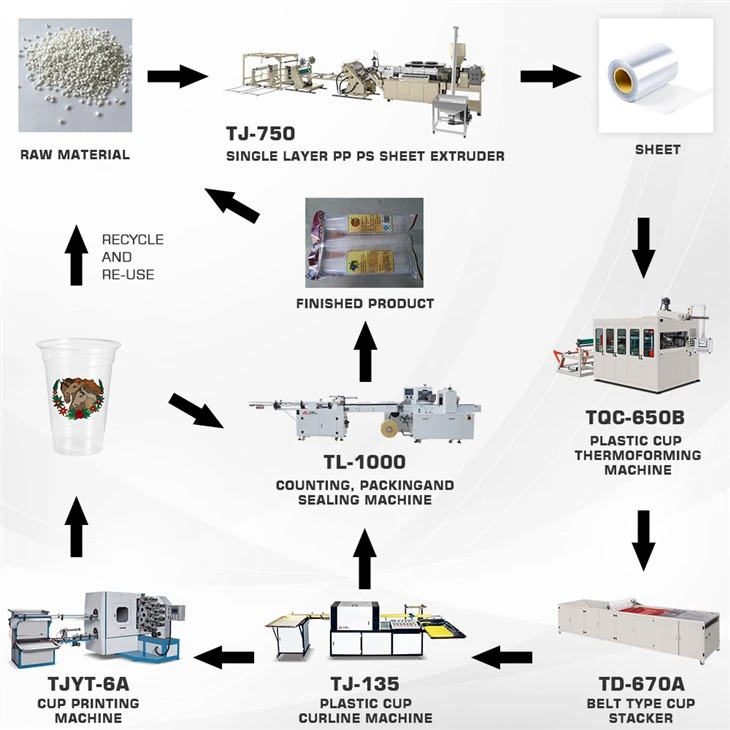

Machine is a combination of mechanical,electrical and pneumatic components,and the whole system was controlled by micro PLC.it is operates with man-interface,which can works all by itself.it combines the material feeding,heating,drawing,forming,cutting and transporting into one process

product-750-400

Plastic Coffee Cup Lids Machine --- Technical Parameter

Model	TQC-650B
Max Forming Area	650*320mm
Max Forming Depth	125mm
Sheet Thickness	0.3-1.8mm
Suitable Sheet Width	660mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Air Pressure	0.6-0.8mpa
Air Consumption	2.0m³/min
Water Consumption	0.5m³/h
Rated Power	98Kw
Heating Power	78Kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L7000W2000H3100mm
Weight	About 6T

Auxiliary machines required for this thermoforming machine. Due to the machine running needs air so it requires AIR COMPRESSOR. As well as the mold need to through the cold water to cooling down when it's running, so it to be equipped INDUSTRIAL CHILLERalso.

What's thisthermoforming machinecan do?

It is widly used for thermoforming packaging container, such as PP/PET cups, boxes, bowls, all thin wall thickness containers. Also milk cups, jelly cups, snow cake cups, disposable drinking water cup, instant noodles bowl, snack box, food box etc.
