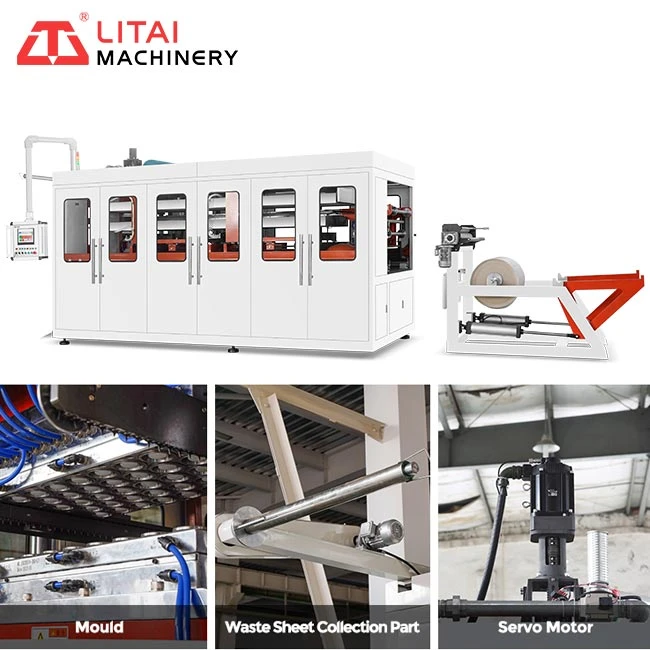

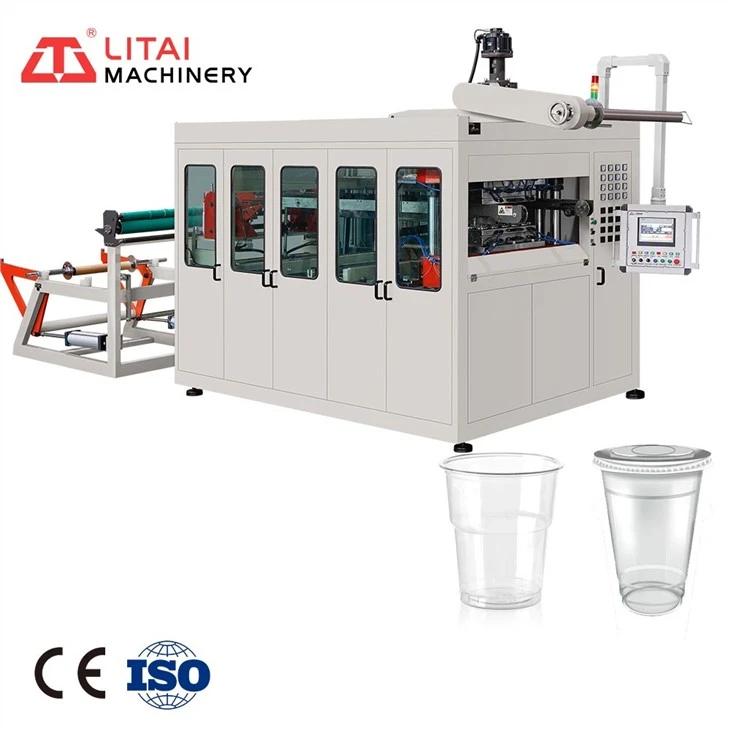

Plastic Coffee Cup Machine
Model: TQC-750
Mould Size (Max.): 750mm x 480 mm
Forming Depth (Max.): 180mm
Sheet width (Max.): 770m
Main Motor Power: 188.55KW
Heating Power: 146KW
Dimension: L8500*W2200*H3200mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
Send Inquiry
Product Introduction

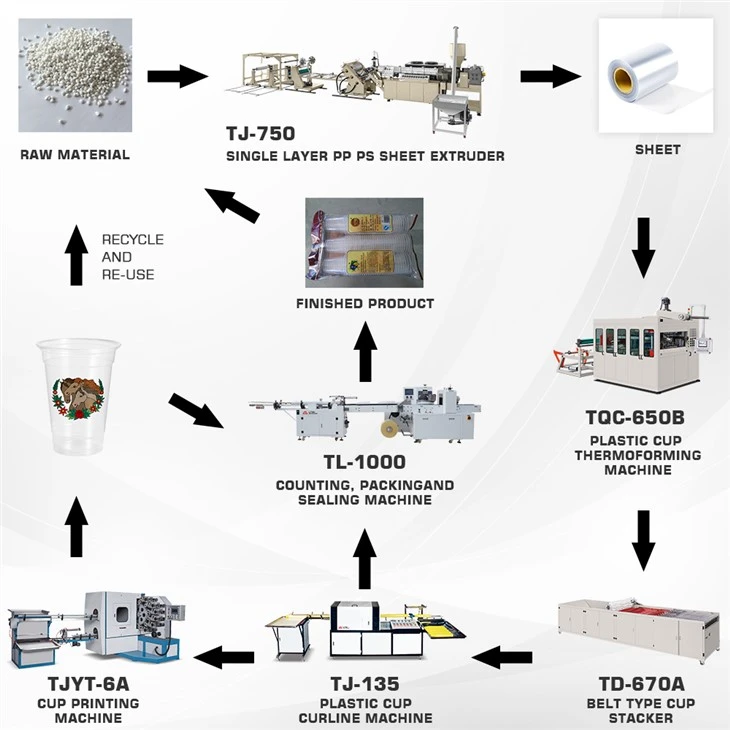

LITAI offers a range of plastic coffee cup machine designed for high-speed production of disposable cups using materials such as PP, PS, HIPS, PET, PVC, PLA etc. These machines utilize thermoforming technology, combining heating, forming, cutting, and stacking into a seamless process.
They are ideal for producing cold drink cups, ice cream cups, yogurt containers, deli cups, and even custom packaging lids, meeting the needs of both large-scale factories and OEM/ODM lines..
Plastic Coffee Cup Machine of Parameters
| Model | TQC-750 | TQC-650B |
| Max. Forming Area | 750*480mm | 650*320mm |
| Max. Forming | 125-180mm(custom height) | |
| Sheet Thickness | 0.3-1.8mm | |
| Sheet Width | 760mm | 650mm |
| Max. Forming | Speed 30 times/min | |
| Air Pressure | 0.6-0.8mpa | |
| Air Consumption | 3.0m³/min | 2.0m³/min |
| Water Consumption | 0.7m³/h | 0.5m³/h |
| Rated Power | 140Kw | 98Kw |
| Used Power | 98Kw | 72Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire | |
| Dimension | L8500*W2200*H3200mm | L7000*W2000*H3100mm |
| Weight | About 6.5T | About 5T |

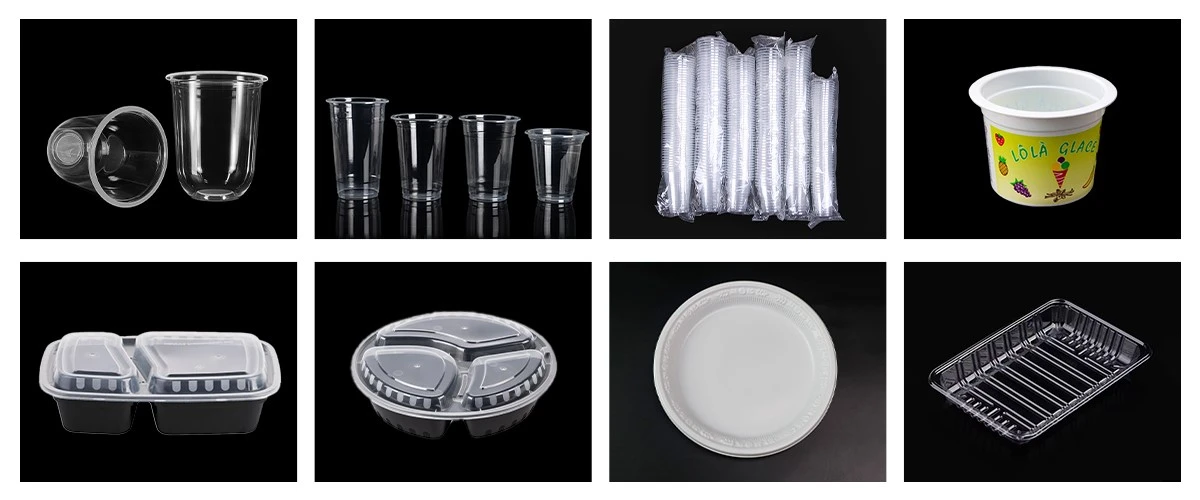

Ideal Applications

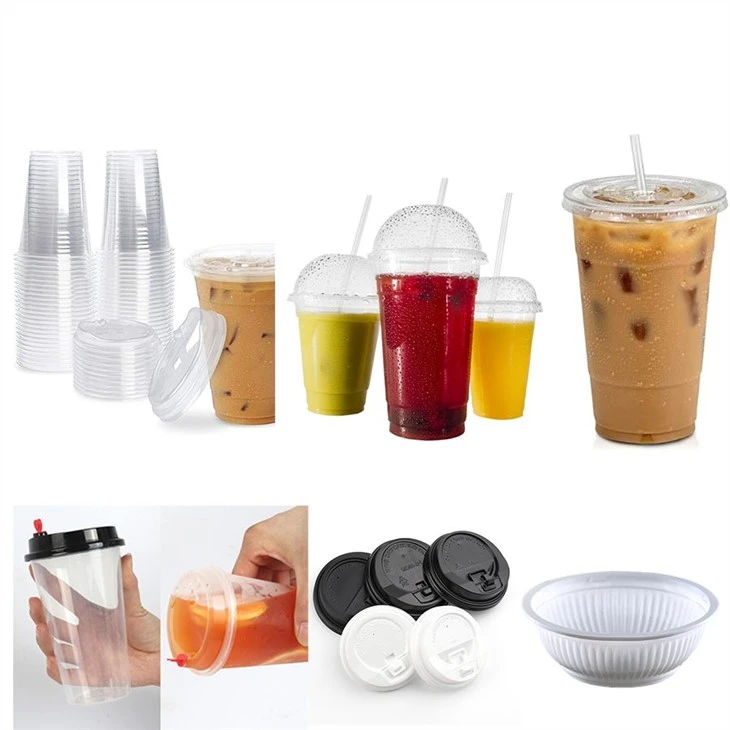

- Beverage Cups: Water cups, Coffee cups, Bubble tea cups (PP/PET).
- Dairy Packaging: Yogurt cups, Ice cream cups, Jelly cups.
- Eco-Friendly Packaging: PLA biodegradable cups and bowls.
Invest in High Speed: Ready to upgrade your output to 42 cycles/minute?
Plastic Coffee Cup Machine of Features
- Five-station simultaneous production of unwinding, forming, punching, punching, cutting, and rewinding, simple operation, and high production output.
- Realize GMP/QS dual standard dust-free purification production, improve product hygiene and safety, and solve cross-contamination.
- Suitable for a wide range of raw materials and finished products, processing of HIPS, PS, PVC, PET, and other plastic sheets.
- PLC man-machine interface operation, visual operation, simple operation.

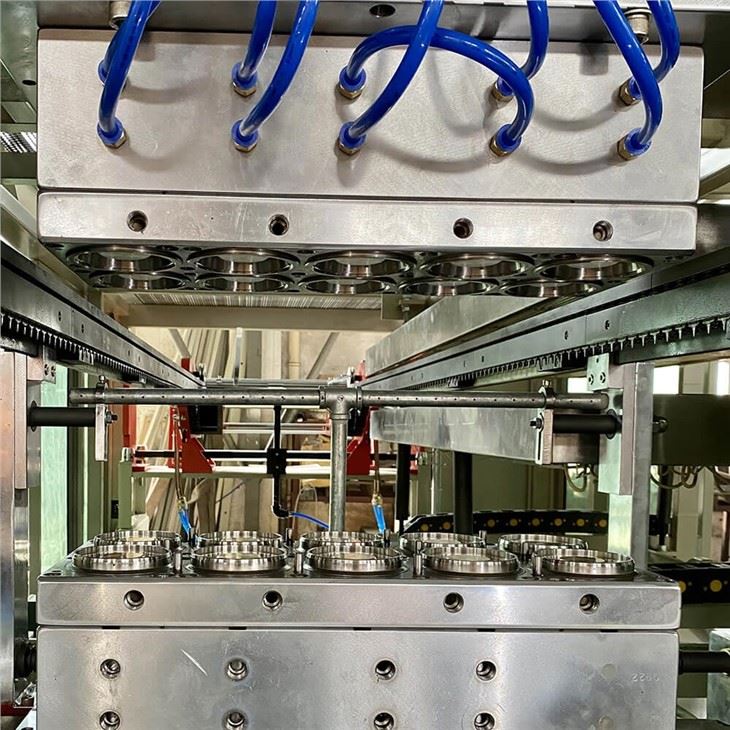

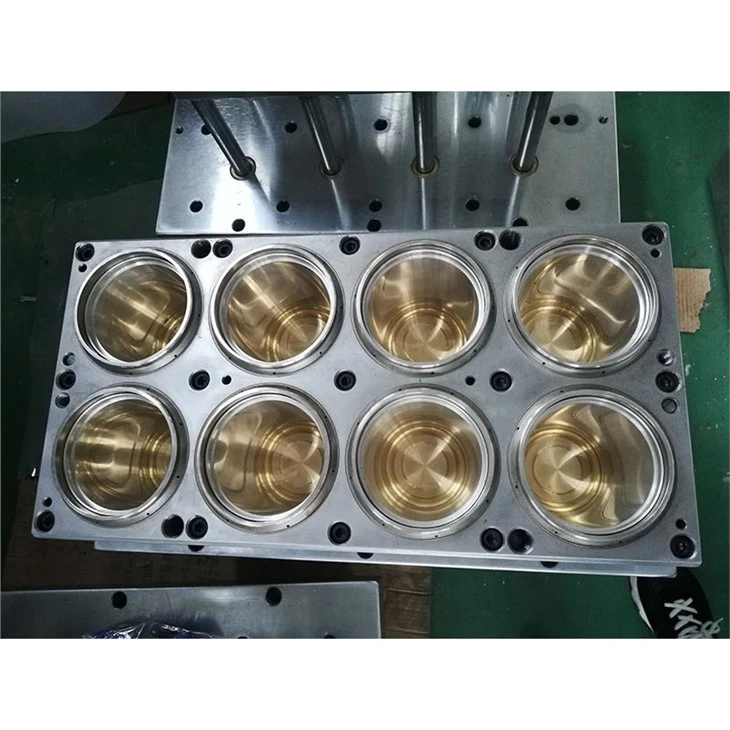

- The stroke is adjustable, the mold replacement is easy, and the mold can be customized according to customer needs.
- Special feeding device and blanking device to save electricity and materials.
- Stepless speed regulation, mechanical hand traction, reliable operation.
Plastic Coffee Cup Machine---- Partner
