PET Plastic Cup Machine

This PET plastic cup machine is designed to process PP, PS, HIPS, PET, and PVC sheets into a wide range of products such as plastic cups, lids, bowls, trays, plates. It is ideal for manufacturing disposable tableware and plastic cups such as cold drink cups, yogurt cups, jelly cups, ice cream cups, snack boxes, plastic bowls, and milk tea lids.
The TQC-750 is a PET plastic cup machine with 6-Axis Servo Control. Max speed 42 cycles/min. Supports PP, PET,PVC,PS, HIPS and Biodegradable PLA sheets.

PET plastic cup machine manufacturer-----Application Area

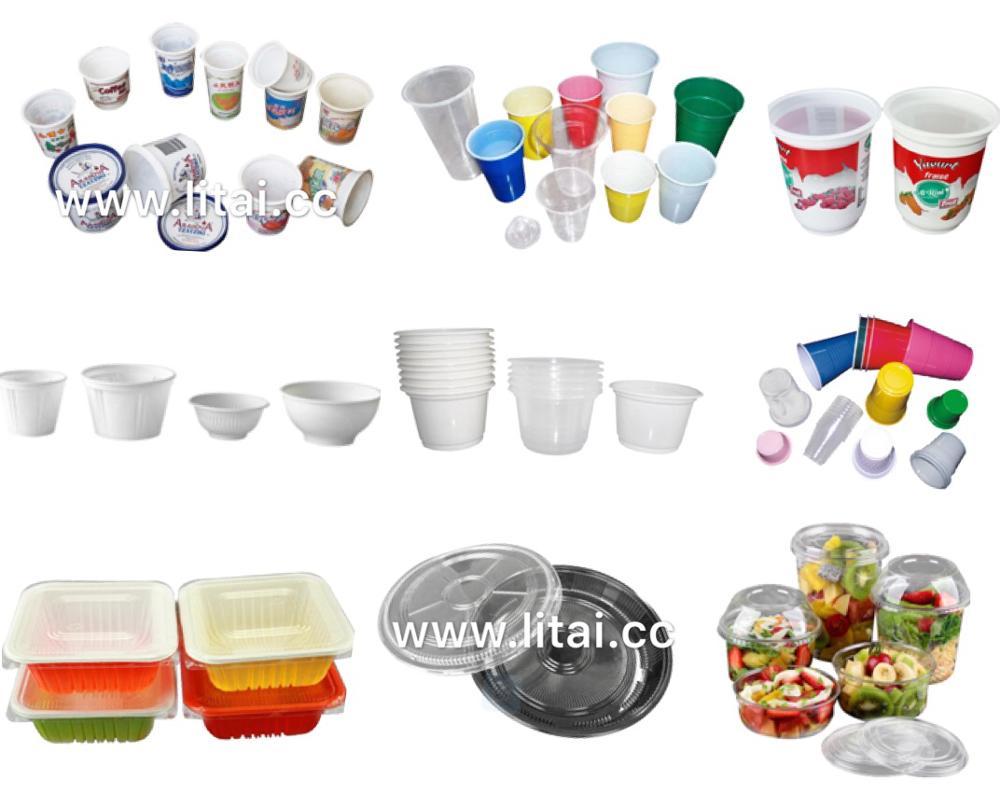

It is used for forming PP,PS,HIPS,PVC,AND PET plastic sheets,which can be widely used to produce all kinds of plastic boxes,containers and other plastic wares,such as ice-cream cups,milk cups,chocolate package boxes,candy boxes and fast-food boxes etc.

High accuracy and high yield products

Pick-up stacking system for more sanitary and save labor

Servo motor for plug assist and sheet feeding system

Two -station unwinder system

Rapid mould changing device

Mould automatic memory system

PLC design with easy operation.

PET plastic cup machine -- Parameters

FAQ

1. Can this machine produce Biodegradable (PLA) cups?

Yes, absolutely. PLA material is sensitive to temperature. The TQC-750S features German Heaters with Segment Control, allowing for precise temperature management to form PLA sheets perfectly without melting or deforming them.

2. What is the actual production capacity?

The machine runs at a maximum speed of 42 cycles per minute. Your total output depends on the mold layout (cavities). For example, if you use a 32-cavity mold for small water cups, the output would be 32 x 42 = 1,344 cups per minute.

3. How does the control system work?

The machine uses a Micro PLC system combined with a Man-Machine Interface (touchscreen). This allows the entire operation-from material feeding to cutting-to be automated and easily monitored by a single operator.
