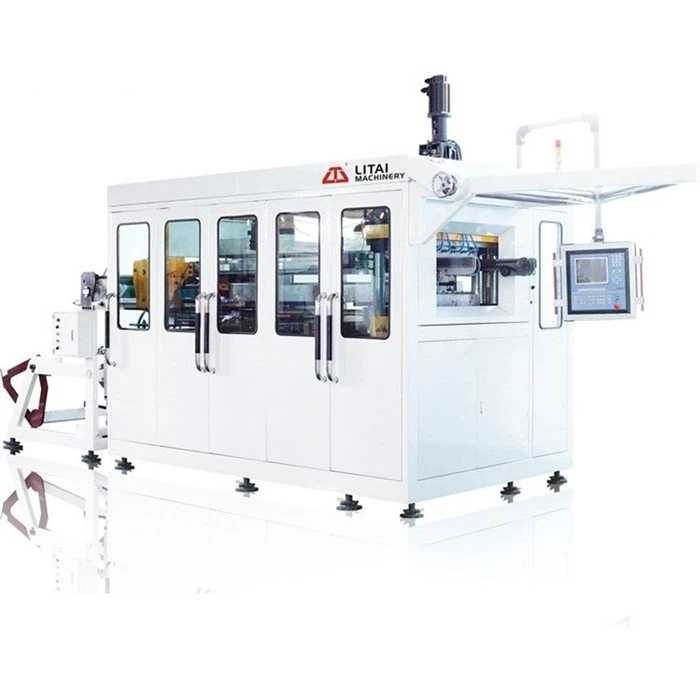

Hydraulic Plastic Cup Making Machine

TQC-650 plastic thermoforming machine(hydraulic plastic cup making machine hydraulic cup making machine) produyce plastic products like disposable plastic cups,ice cream cups,cold drinking cups,yoghurt cups,fast food box,bowls for convenience noodles,fruit trays, cup lids,food box,ect.

Working Theroy and process

First, put the sheet on sheet loarder. Motor drives sheet to electric furnace,after heat the sheet by heater, transmit sheet to forming part, then stretch the piston and compress the air so that the thermoplastic  can be closely attached to the mould and take  shape  finally,  the  products  come  into  being  after  die  cutting  and  automatic blowing, motor drive to rewind waste sheet. The TQC-750S is a fully automatic Plastic Cup Thermoforming Machine with 6-Axis Servo Control. Max speed 42 cycles/min. Supports PP, PET,PVC,PS, HIPS and Biodegradable PLA sheets.

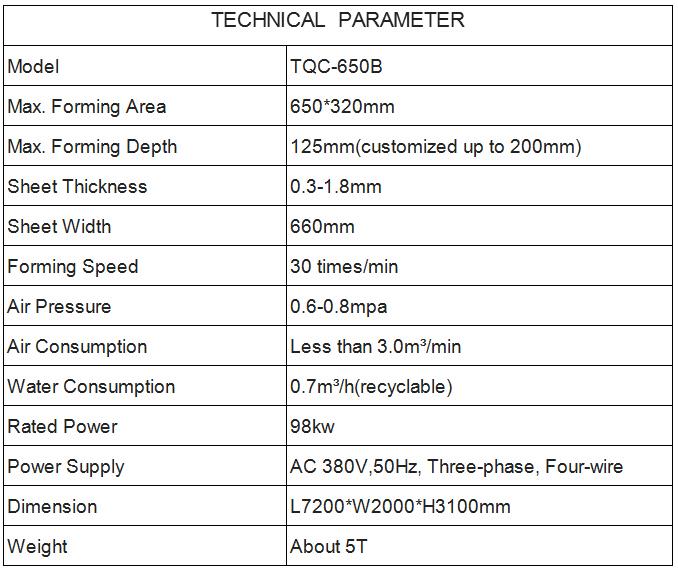

Hydraulic Plastic Cup Making Machine-----Mian Parameters:

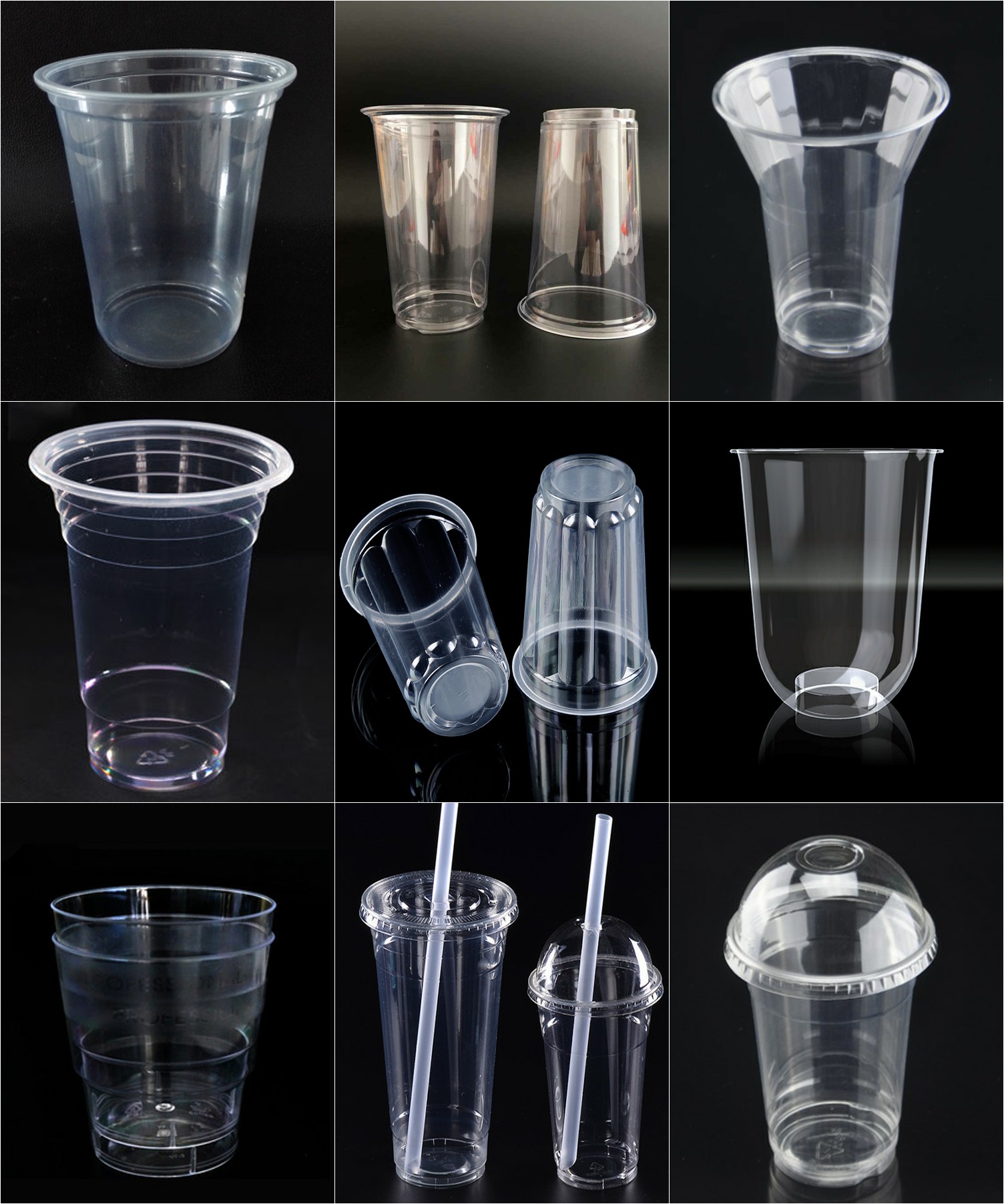

Hydraulic Plastic Cup Making Machine-----Finished Products:

Hydraulic Plastic Cup Making Machine Feature

1.Auto-unwinding rack:

Disposable plastic cup making machine designed for overweight material by using pneumatic structure. Double feeding rods are convenient for conveying materials, which not only improves the efficiency but reduces the material waste.

2.Heating:

Plastic glass making machine upper and down heating furnace, can move horizontally and vertically to ensure that the temperature of the plastic sheet is uniform during the production process. Sheet feeding is controlled by servo motor and the deviation is less than 0.01mm. The feeding rail is controlled by closed-loop waterway to reduce the material waste and cooling.

3.Mechanical arm:

Plastic cup forming machine can automatically match the molding speed. The speed is adjustable according to different products. Different parameters can be set. Such as picking position, unloading position, stacking quantity, stacking height and so on.

4.Waste winding device:

Plastic Cup Thermoforming Machine adopts automatic take-up to collect surplus material into a roll for collection. Double cylinder structure makes the operation easy and convenient. The outer cylinder is easy to take down when the surplus material reach a certain diameter, and the inner cylinder is working at the same time. This plastic glass machine operation will not interrupt the production process.
