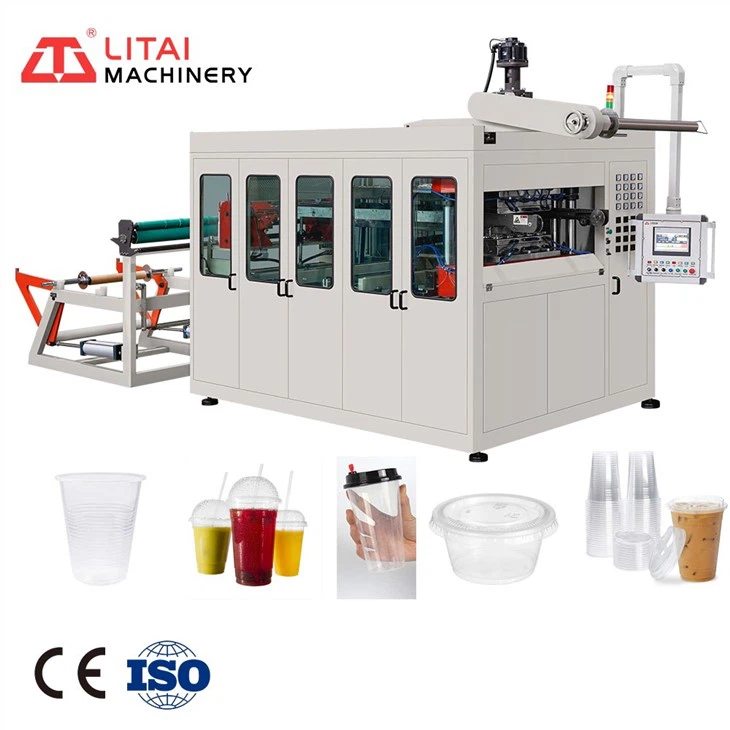

Pet Cup Maker Machine

Pet Cup Maker Machine

Plastic thermoforming machine adopts Japan Yaskawa servo motor for sheet feeding and stretching, Germany Siemens PLC for programme, touch screen for operation, stable, low noise, high efficiency, suitable for producing disposable products like plastic bowls, ice cream cups, cold drinking cups, yogurt cups, trays, plates, covers, lids, containers, etc.
Send Inquiry
Product Introduction

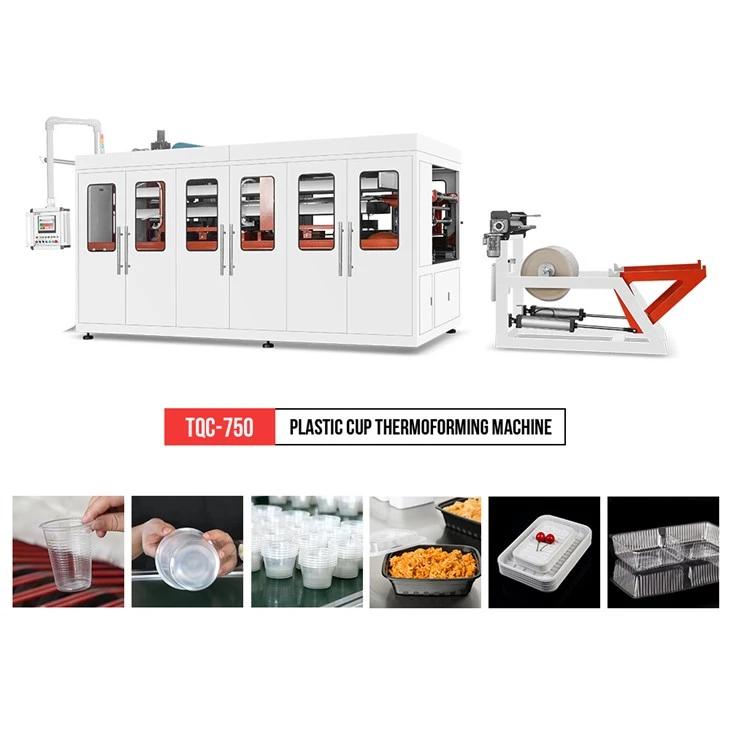

Chinese PET cup maker machine on sales

Machine Video Link


750

PET Cup Maker Machine ---- Features

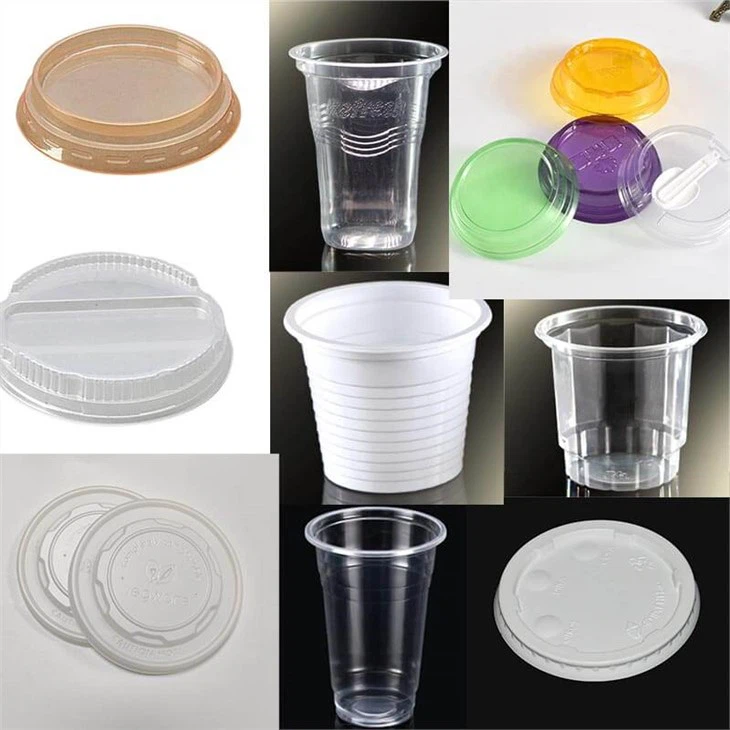

* It is suitable to make palstic cups ,bowls,trays,plates,covers,lids,containers.

* It adopts servo motor for sheet feeding and plug stretching.

* Chain exit device to ensure the stable forming precision

* Different products can be produced with different molds.

* German design, max output, high quality, low noise, easy operation .

*ompact configuration\calm run\easy manipulation\convenient maintenance.

*steplessly variable frequency speed regulating,PC circuit control qanel.

*adjustable travel, convenient for replacing mould.

*adopts manipulator grip,has accurate synchronization.

*can design any mauldand feeder according to customersadvice

.

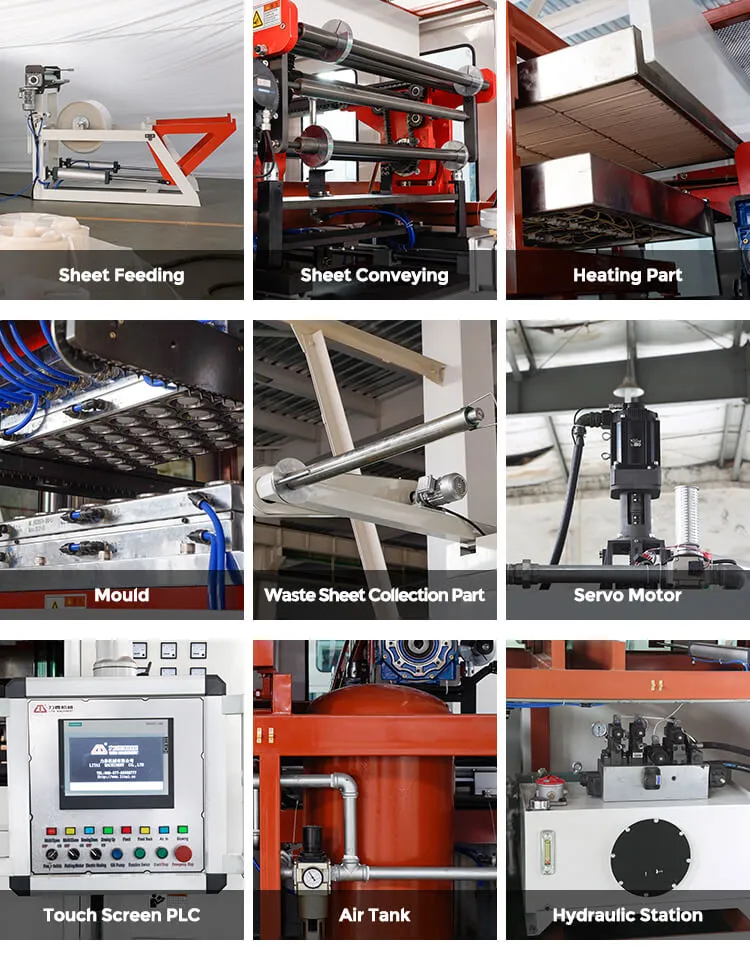

PET Cup Maker Machine ---- Main parts

750


MACHINE MAIN PARTS

Touch ScreenPLC

Siemens, Germany

Servo Motor

Yaskawa, Japan

AC ContactorCircuit Breaker

Schneider,France

Proximity Switch

TURCK, Germany

Solenoid Directional Valve

Yuken, Taiwan



Solenoid Overflowing Valve

Counterbalance valve

Forming Valve

MAC, America

Solenoid Valve

SMC/Mindman, Japan/Taiwan

PET Cup Maker Machine ---- Technical Parameter

Technical Parameters
Model
TQC-750
TQC-650B
Max. Forming Area
750*480mm
650*320mm
Max. Forming Depth
125-180mm(custom height)
Sheet Thickness
0.3-1.8mm
Sheet Width
760mm
650mm
Max. Forming Speed
30 times/min
Air Pressure
0.6-0.8mpa
Air Consumption
3.0m³/min
2.0m³/min
Water Consumption
0.7m³/h
0.5m³/h
Rated Power
140Kw
98Kw
Used Power
98Kw
72Kw
Power Supply
AC 380V,50Hz, Three-phase, Four-wire
Dimension
L8500*W2200*H3200mm
L7000*W2000*H3100mm
Weight
About 6.5T
About 5T

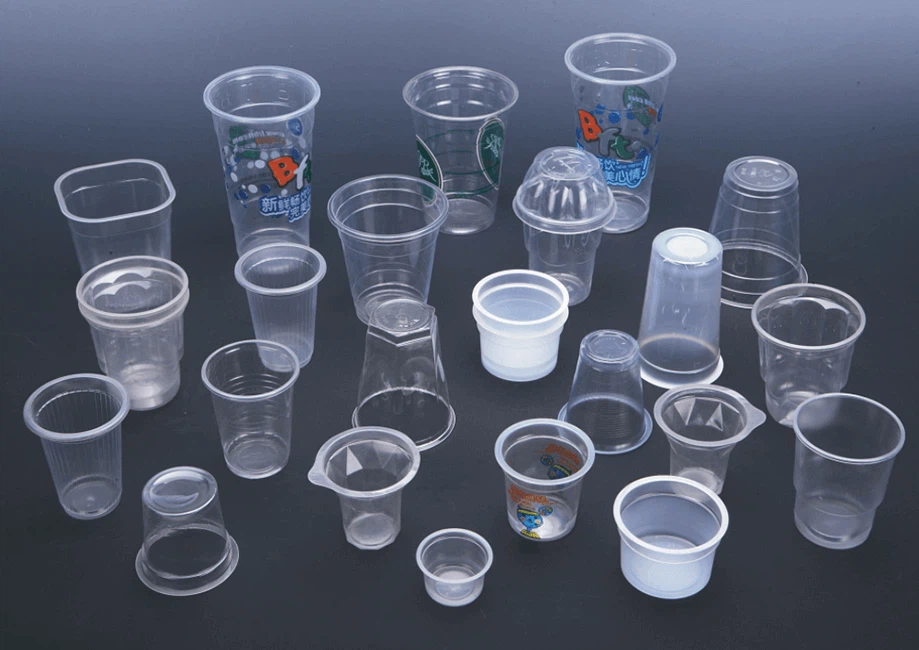

PET Cup Maker Machine ---- Samples




201807131322385958661 (1) (1)

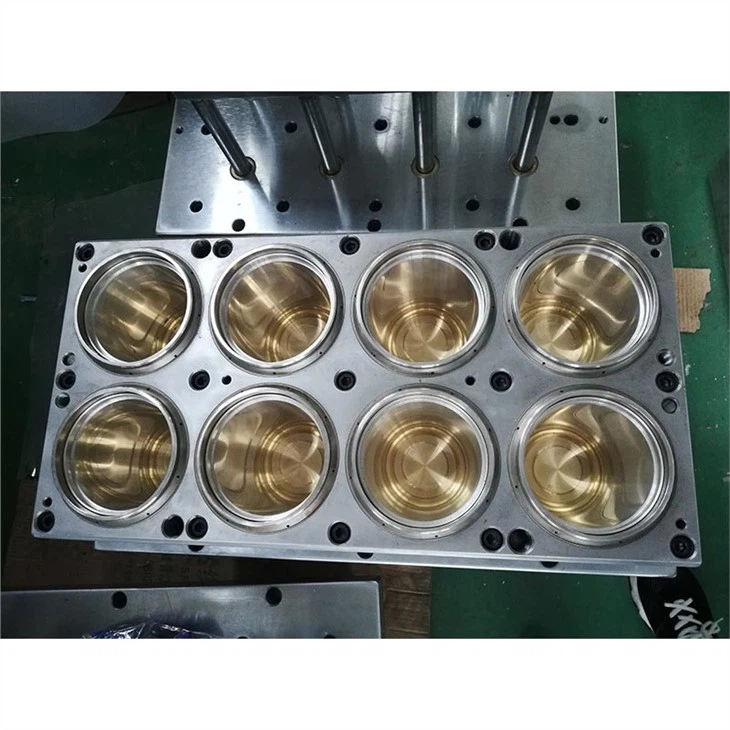

Mould

 (1)


Cast aluminium molds are cast at a foundry and typically have temperature control lines running through them.


Our Partners


1. Q: Are you a factory or trading company?

 A: We are a factory.We have been in making plastic thermoforming machine and plastic sheet extruder over 20years.

2. Q: Could you send engineer go to our factory adjust and install machine ?

A: YES,we can send engineer go to your factory adjust and install machine .teach your worker how to operate machine

3. Q: How long is the warranty period?

A: One year warranty period.We have professional after-sales department providing best service and make action within 24hours

4. Q: Can we visit your factory watch machine running on live?

A: Of course.Welcome to visit our factory!

5.Q.How can I get the samples?

A: We have many samples in stock that was made by the machine customers bought from our company, we can take the picture for you to choose suitable samples.

Q.Can you give me discount?

A:Yes, of course. If you contact me, you'll get more.

Q:How about you ensure the quality of snacks food serving tray thermoforming machine?
