Disposable Cup Forming Line

A Disposable Cup Forming Line is an industrial machine that is used to produce disposable and semi-disposable plastic products, e.g. cups, bowls, plates, trays, boxes and other thermoplastic containers. These machines are commonly employed in the food packaging and beverage service industry, dairy, and fast-moving consumer goods sectors, where mass production that is highly standardized is critical.

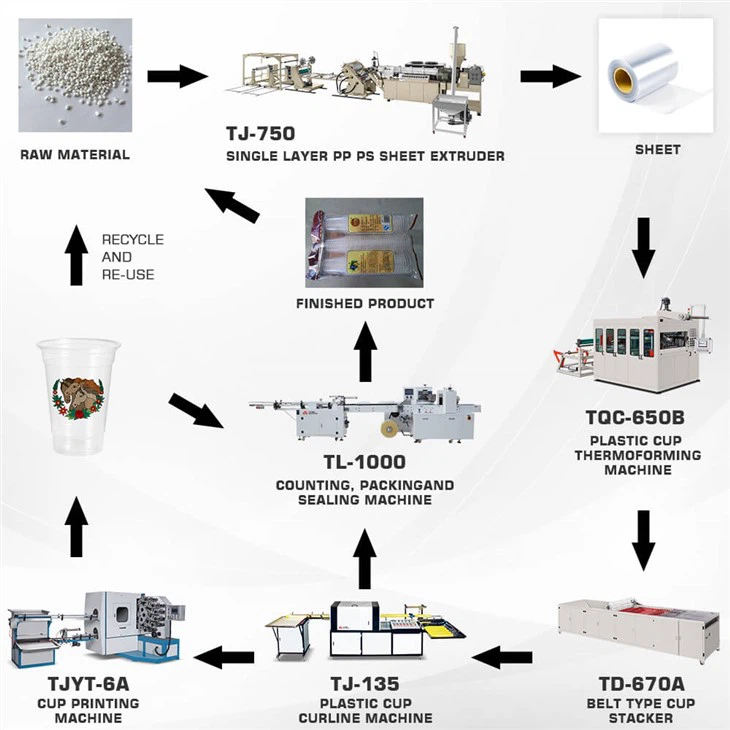

Structurally, a Disposable Cup Forming Line normally comprises a machine body, sheet feeding and conveying system, heating unit, forming station, cutting system and finished product stacking mechanism. A combination of these elements allows uninterrupted and automated manufacturing of a plastic sheet to a finished container.

Disposable Cup Forming Line

Plastic thermoforming machine is integrated design of machine, electricity and gas. It adopts microcomputer programmable controller (PLC) control, man-machine interface operation, chain drive feed, tunnel heating, cam type stroke upper and lower mold forming, mold edge Fully-automatic high-efficiency plastic sheet forming equipment for cutting, that is, feeding, heating, stretching, forming, and trimming.

• Key Features and Technologies

1. 1. Minimize plastic waste by using servo drive system accurate index accuracy

2. 2. Independent electrical cabinet to avoid damage caused by any vibration

3. 3. Automatic central lubrication and chain refueling

4. 4. High-stress component design is very strong, casting molding table

5. 5. Low maintenance workload and long maintenance intervals

6. 6. Most components come from multinational suppliers, ensuring reliability and global compatibility

Disposable Cup Forming Line Technical Parameters

Main Features:

1. The max forming area of the machine is 650x320mm or 750x480mm

2. Disposable cup forming machine sheet thickness is 0.3-1.8mm

3. The max forming depth is 125mm-180mm

4. PLC and Touch screen are using simens brand

Samples:
