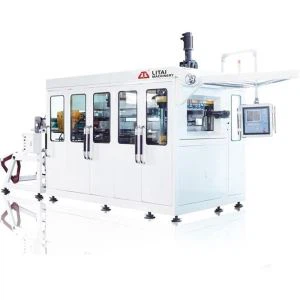

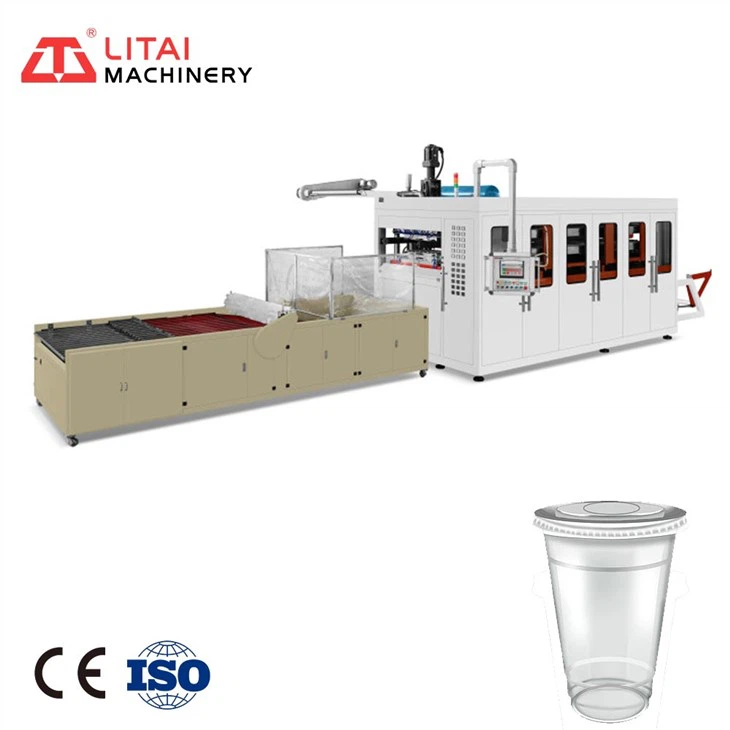

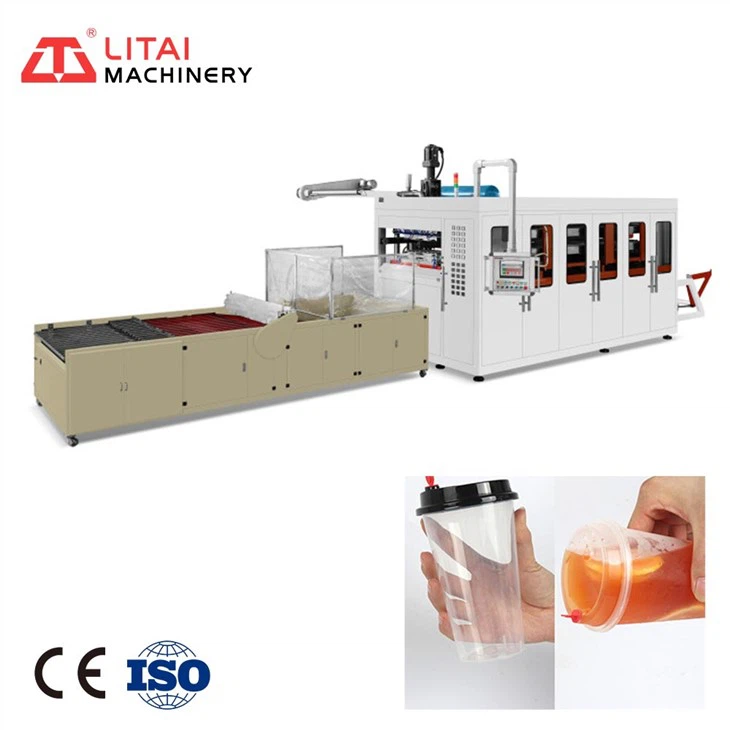

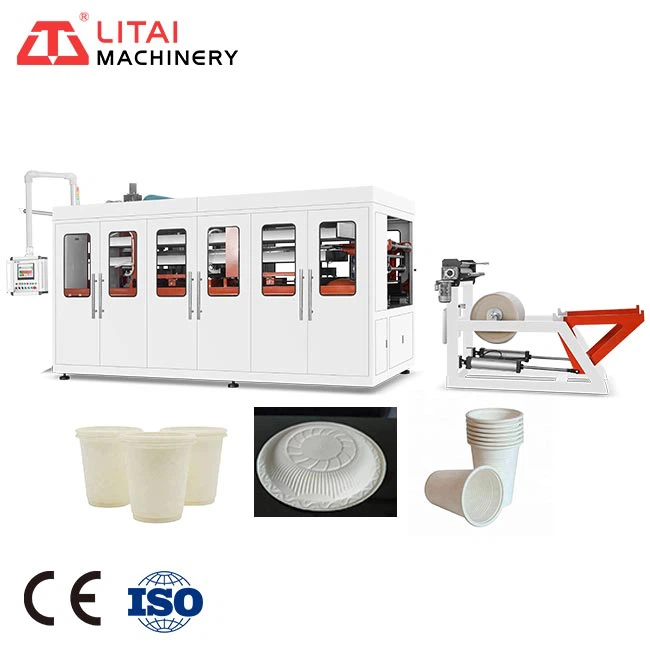

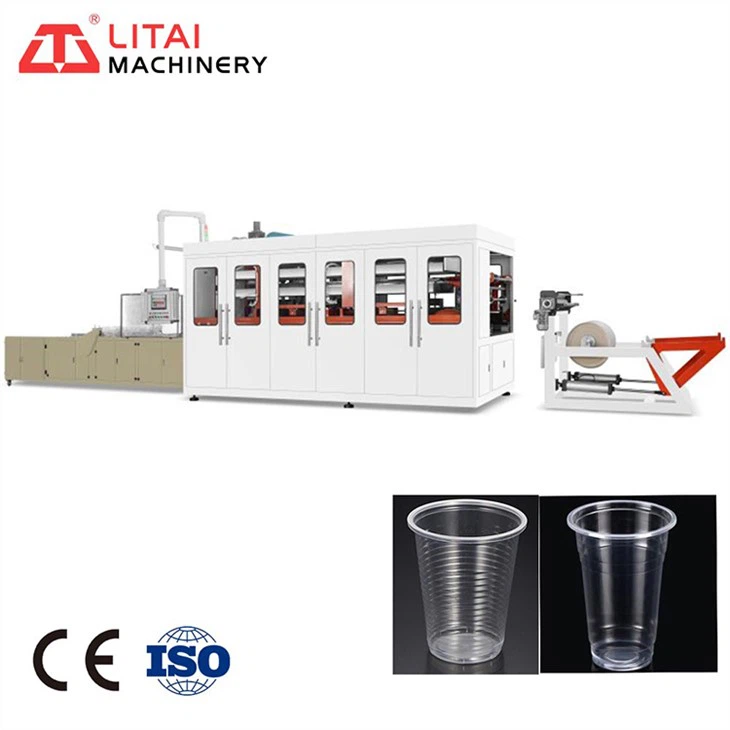

Disposable Pet Cup Machines

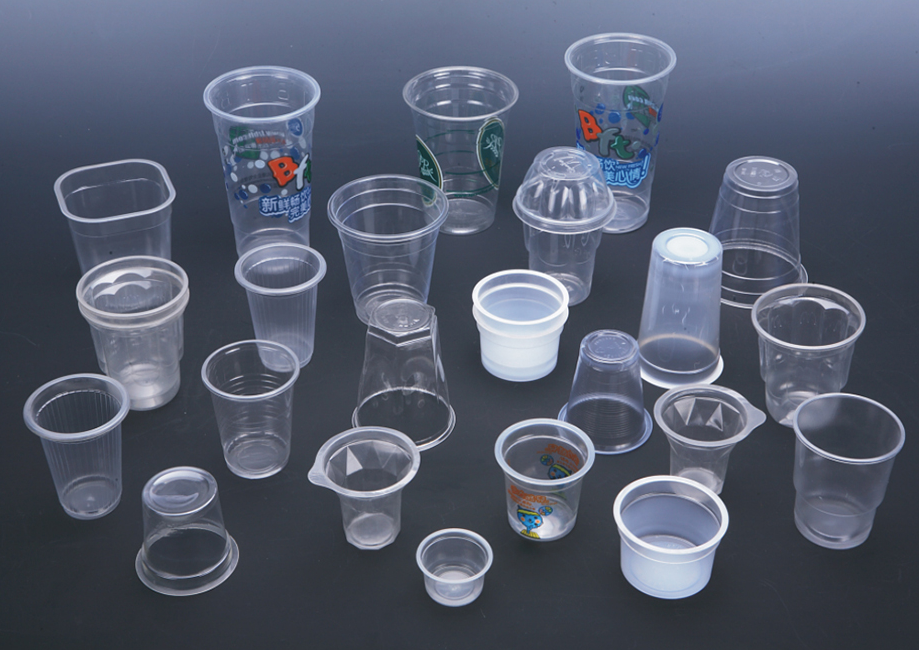

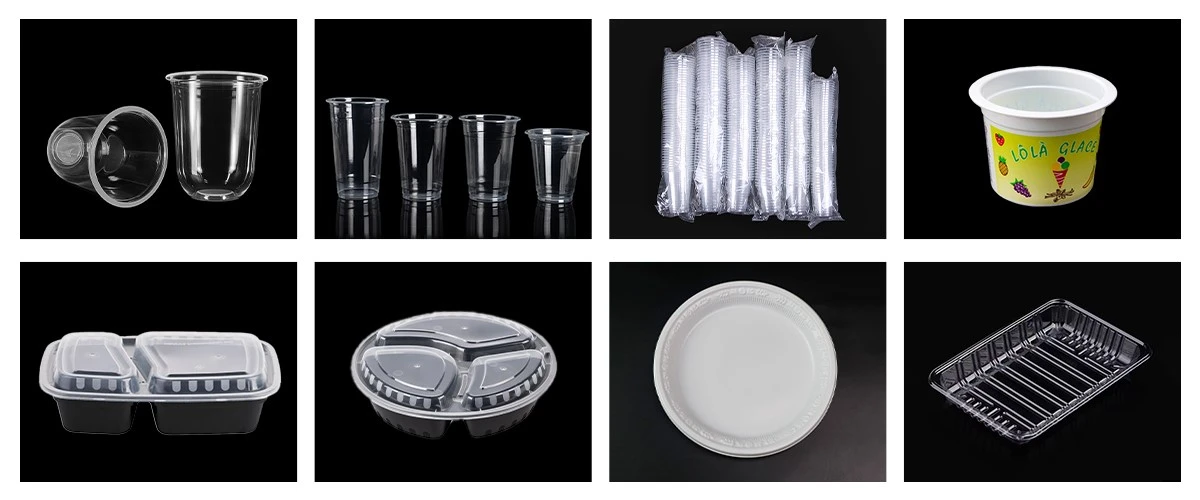

Plastic thermoforming machine adopts Japan Yaskawa servo motor for sheet feeding and stretching, Germany Siemens PLC for programme, touch screen for operation, stable, low noise, high efficiency, suitable for producing disposable products like plastic bowls, ice cream cups, cold drinking cups, yogurt cups, trays, plates, covers, lids, containers, etc.

Send Inquiry

Product Introduction

750

Disposable Pet Cup Machines------Specification

Mould is fixed by four pillars, which makes it more stable, precision, lower noise and high speed.
Touch screen and PLC use Siemons, Germany technology.
Sheet feeding use servo motor.
Mould streching use servo motor.
Auto mechanism movement lubricant automatically at certain times.
Automatic sheet feeder with square steel structure, stable,energy-saving and high effciency.
Hydraulic driven system, enough movement speed and strong punching power.
Material holder combines with the machine, it can save workshop space, avoid electrostatic precipitation, easy to control.
This part, driven by hydraulic system, is whole together part, more reliable and steady.
Heating tile adopts vacuum insulation cotton, can save more energy.

Disposable Pet Cup Machines Technical Parameters

Model	TQC-750S	TQC-750	TQC-650B
Mould Size (Max.)	750*480mm	750*480mm	650*300mm
Max. Forming Depth	180mm	125-180mm(custom height)	125mm
Max. Forming Speed	30times/min
Sheet Thickness	0.3-1.8mm
Suitable Sheet Width	770mm		660mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Air Pressure	0.6-0.8mpa
Air Consumption	3.0m³/min		2.0m³/min
Water Consumption	0.7m³/h		0.5m³/h
Rated Power	207Kw	173Kw	98Kw
Heating Power	180Kw	146Kw	78Kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L7900W2300H3400mm	L8500W2300H3300mm	L7000W2000H3100mm
Weight	About 8.2T	About 8T	About 6T

What is thermoforming?

Thermoforming is the process of the heating a plastic sheet and shaping it with air pressure or vacuum on a mold. After the sheet is formed, it is cooled to obtain the final form. In vacuum forming a negative pressure is used in the molding step.

In our more than 20 years of designing and engineering economical machines for these processes, we have received thousands of calls and heard them called many things. Among the more common names these machines have been call are: vacuum forming machines, thermoforming machines, sheet fed vacuum formers, vac formers, roll fed thermo formers, blister packaging machines, pressure formers, and many, many others.
