Full Automatic Cup Producing Machine

The TQC-750S is engineered for mass production of:
Beverage Cups: Water cups, Coffee cups, Bubble tea cups (PP/PET).
Dairy Packaging: Yogurt cups, Ice cream cups, Jelly cups.
Eco-Friendly Packaging: PLA biodegradable cups and bowls.
Invest in High Speed: Ready to upgrade your output to 42 cycles/minute?

Send Inquiry

Product Introduction

Full Automatic Cup Producing Machine---- Description

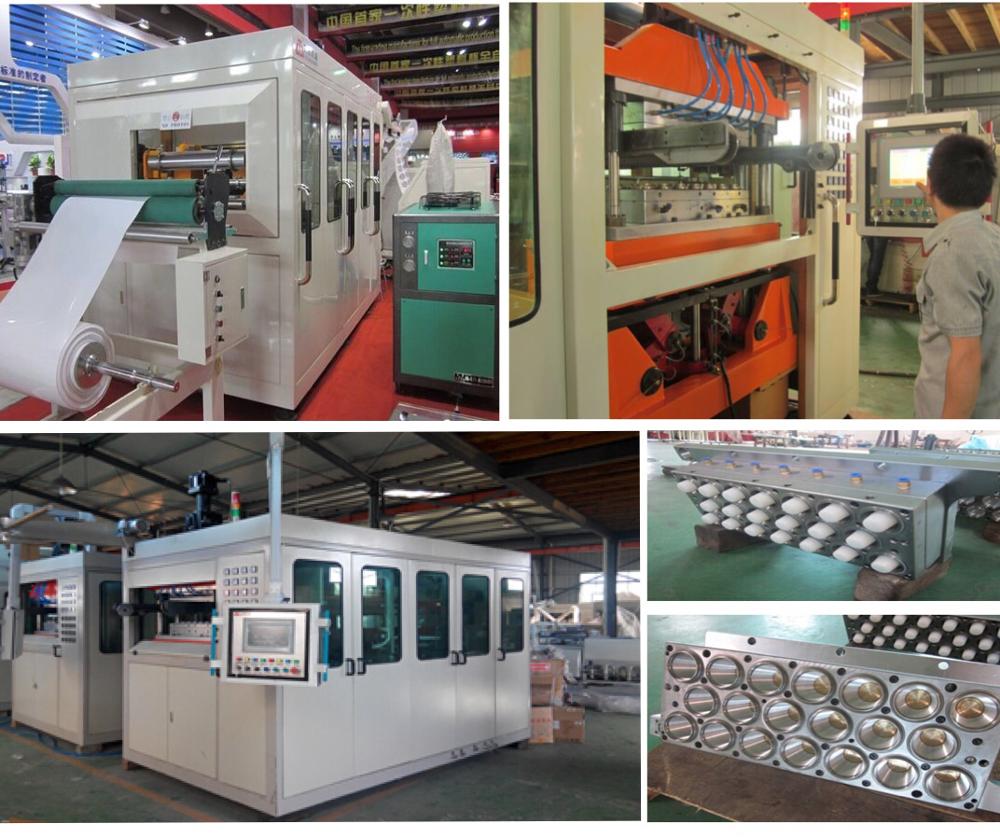

The TQC-750S is a fully automatic Plastic Cup Thermoforming Machine with 6-Axis Servo Control. Max speed 42 cycles/min. Supports PP, PET,PVC,PS, HIPS and Biodegradable PLA sheets.
TQC Plastic thermoforming machine adopts Japan Yaskawa servo motor for sheet feeding and stretching, Germany Siemens PLC for programme, touch screen for operation, stable, low noise, high efficiency, suitable for producing disposable products like plastic bowls, ice cream cups, cold drinking cups, yogurt cups, trays, plates, covers, lids, containers, etc.

Features of Full Automatic Cup Producing Machine

1. The using of Touch screen and PLC control makes the simple,safe and automaitic operation.
2. The using of the PLC, MAC results in products of worldwide compatibility and reliability
3. We assure the excellent service including maintenance.
4. Robot and forming part of machine will be synchronous, max speed can be 25circles/min.
5. With 2 collecting way for finished products, one is collecting by robot, second is by air blowing.
6. Conveyor unit installed with wheels, and can be moved if not used.
7. 4 columns for forming station.

Full Automatic Cup Producing Machine-Technical Parameters

Model	TQC-750S
Mould Size (Max.)	750*480mm
Max. Forming Depth	180mm
Max. Forming Speed	30times/min
Sheet Thickness	0.3-1.8mm
Suitable Sheet Width	770mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Air Pressure	0.6-0.8mpa
Air Consumption	3.0m³/min
Water Consumption	0.7m³/h
Rated Power	207Kw
Heating Power	180Kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L7900W2300H3400mm
Weight	About 8.2T
