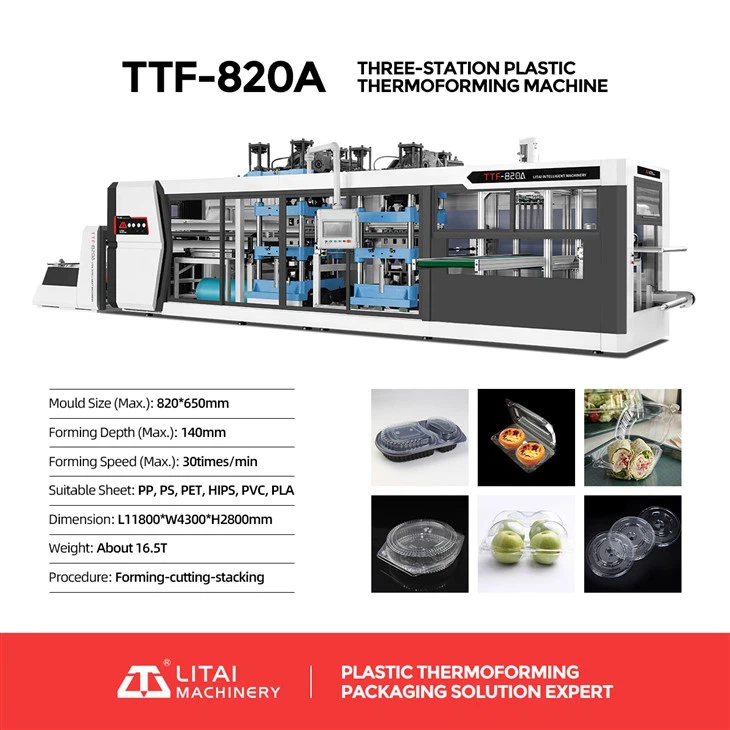

Automatic Plastic Box Making Machine
Model: TTF-820A
Max.Forming Area: 820*650mm
Max.Forming Height: 140mm
Max.Sheet Thickness(mm): 1.2 mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
The three-station positive and negative pressure thermoforming machine is an efficient and automatic production machine to produce disposable trays, lids, lunch boxes, folding boxes and other products. This thermoforming machine has three stations, which are forming, cutting and palletizing. When forming, the plastic sheet is first heated to a temperature that makes it soft and malleable. Then, through the shape of the mold and the action of positive and negative pressure, the plastic material is formed into the desired product shape. Then the cutting station can accurately cut the formed plastic products according to the shape of the mold and the size of the product. The cutting process is automated to ensure cutting accuracy and consistency. Finally, there is the stacking and palletizing process. The cut plastic products need to be stacked and palletized according to certain rules and patterns. The three-station positive and negative pressure thermoforming machine can improve production efficiency and product quality through precise control of heating parameters and pressure, as well as equipped with cutting and automatic palletizing systems, to meet the market's demand for disposable plastic products, and also bring convenience and benefits.
Application:
Automatic Box Making Machine(TTF series thermoforming machine) is forming punching, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency. Its finished products are widely used in sealed package of toys, hardware, cosmetics, electronic products (batteries, electronic components and so on), foodstuff (fruits pallets, snack boxes, biscuit boxes, food dishes, trays, lids, etc.).
Automatic Plastic Box Making Machine parameters:
| Model | TTF-820A | TTF-700A | TTF-520A |
| Mould Size (Max.) | 820*650mm | 700*550 mm | 520*400mm |
| Forming Depth (Max.) | 140mm | 120mm | 110mm |
| Sheet thickness | 0.2-1.6mm | ||
| Forming Speed (Max.) | 30times/min | ||
| Air pressure | 0.6-0.8mpa | ||
| Air consumption | 4.0m³/min | 3.4m³/min | 3.0m³/min |
| Water consumption | 0.7m³/h | ||
| Sheet width (Max.) | 850mm | 730mm | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | ||
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire | ||
| Rated power | 199Kw | 188Kw | 120Kw |
| Heating power | 140Kw | 118Kw | 75Kw |
| Procedure | Forming-cutting-stacking | ||
| Dimension | L11800*W4300*H2800mm | L11500*W4500*H2800mm | L8200*W4650*H2670mm |
| Weight | About 16.5T | About 19.0T | About 9.0T |

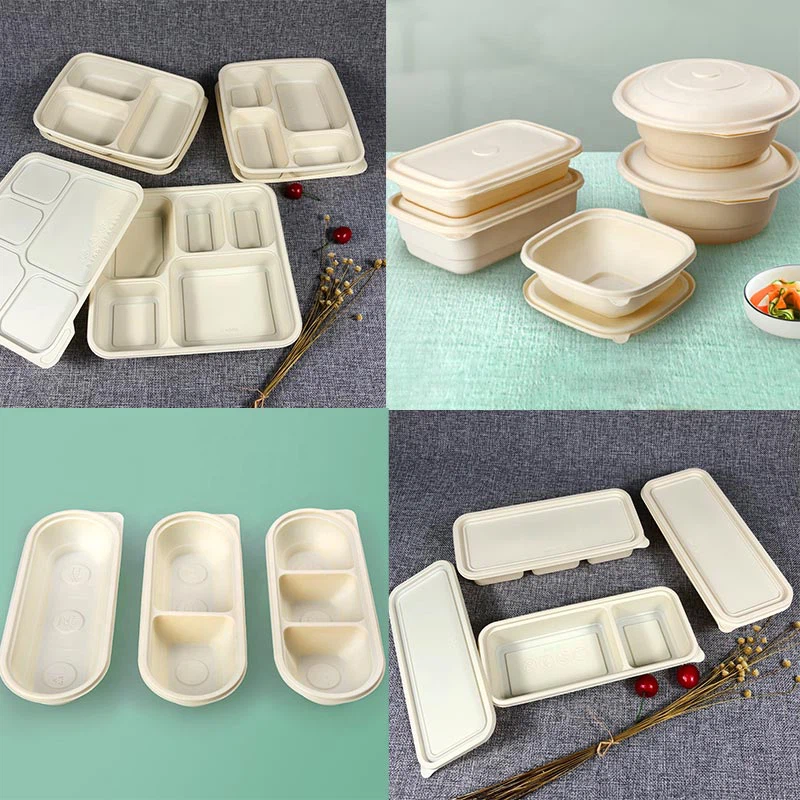

Samples
Detail
Mobile is fixed four pillars, which makes this machine more stable, precision, lower noise,high speed.
Touch screen and PLC use Siemens, Germany Brand
Sheet feeding use servo motor, Yaskawa, Japan brand.
The Guiding part, Driven by hydraulic system, is whole together part, more reliable and steady, long life time.
