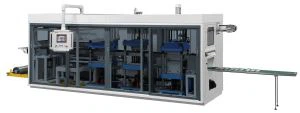

Good Price Plastic Lid Machine Punched Machine for Plastic Lids

Good Price Plastic Lid Machine Punched Machine for Plastic Lids uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product transportation, and edge material winding.

It is suitable for processing different materials, such as PP, PS, HIPS, PET, PVC, PLA etc. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.

It can make some products which unable to be made in one station thermoforminging machine, like for example: PLA products, plastic lids or containers which has holes, the packing containers (fruit box, egg trays) with body and cover connected etc.

Plastic Lid Machine Punched Machine for Plastic Lids Technical Parameters

APPLICATION AREA

This Good Price Plastic Lid Machine Punched Machine for Plastic Lids is automatic forming equipment for thermoforming plastic sheet includes feeding, heating, forming, cooling, mold unloading, cutting at one blow. It is suitable for thermoforming PS, HIPS, PVC, PET, PP that can produce varieties of blister package and blister tray. Our machines are fully automated and all setup operations are implemented on the touch screen. When the operator places the material in place, the entire process is finished by pressing the start-up process until the all material is finished.

Structure & Design

Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency



Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

Operation Screen

Live Data Display – Shows temperature, pressure, and cycle status in real time.

mergency Stop & Alarms – Ensures quick response to operational hazards.

Multi-Language Support – Accommodates global operators.



Forming Station

Max mould size:700*550mm
Max depth:120mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

Punching Station

Servo motor driven, punching holes more accurate and complete Long-life, durable needle



Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

Stacking Station

Different stacking schemes can be formulated according to the customer's requirements

FAQ

1. Can this thermoforming machine handle both vacuum and pressure forming methods?

Yes, the thermoforming machines support both vacuum forming and pressure forming techniques, allowing flexible production depending on mold complexity.

2. What thermoplastic materials are compatible with these thermoforming machines?

These machines are compatible with a wide range of thermoplastics including PET, PVC, Polypropylene (PP), and Polystyrene (PS).

3. Are fully automatic configurations available for these thermoforming machines?

Yes, the product range includes manual, semi-automatic, and fully automatic thermoforming machines featuring automatic sheet feeding, cutting, stacking, and inline quality control.

4. What industries commonly use these thermoforming machines?

Industries such as food packaging, automotive manufacturing, medical devices, electronics, and consumer goods extensively utilize these thermoforming machines.

5. How does the machine ensure precision for complex mold shapes?

The machines use precise temperature control and pressure regulation, combined with high-quality molds to achieve detailed and consistent product shapes.
