Plastic Lid Ps Machine

Model: TQC-750S
Mould Size (Max.): 750 x 480mm
Forming Depth (Max.): 180mm
Sheet width (Max.): 770mm
Total Power: 215KW
Heating power: 180KW
Dimension: L7900 x W2300 x H3450mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials

Send Inquiry

Product Introduction

This Plastic Lid Ps Machine is designed to process PP, PS, HIPS, PET, and PVC sheets into a wide range of products such as plastic cups, lids, bowls, trays, plates. It is ideal for manufacturing disposable tableware and plastic cups such as cold drink cups, yogurt cups, jelly cups, ice cream cups, snack boxes, plastic bowls, and milk tea lids.
The TQC-750S is a Plastic Lid Ps Machine with 6-Axis Servo Control. Max speed 42 cycles/min. Supports PP, PET,PVC,PS, HIPS and Biodegradable PLA sheets.

APPLICATION of Plastic Lid Ps Machine

Plastic lid PS machine is fully automatic to produce disposable plastic cups, containers, packing box using PP/PS/PET/HIPS/PVC/Corn starch material.

1. Plug stretching uses servo motor for YASKAWA

2. Sheet feeding uses servo motor

3. The machine is driven by Hydraulic system

4. Each area has temperature control system.

Plastic Lid Ps Machine of Parameters

Model	TQC-750S
Mould Size (Max.)	750*480mm
Sheet width	770mm(Max)
Max. Forming Depth	180mm
Max. Forming Speed	30times/min
Sheet Thickness	0.3-1.8mm
Suitable Sheet Width	770mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Air Pressure	0.6-0.8mpa
Air Consumption	3.0m³/min
Water Consumption	0.7m³/h
Rated Power	215Kw
Heating Power	180Kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L7900W2300H3400mm
Weight	About 8.2T

Machine detail

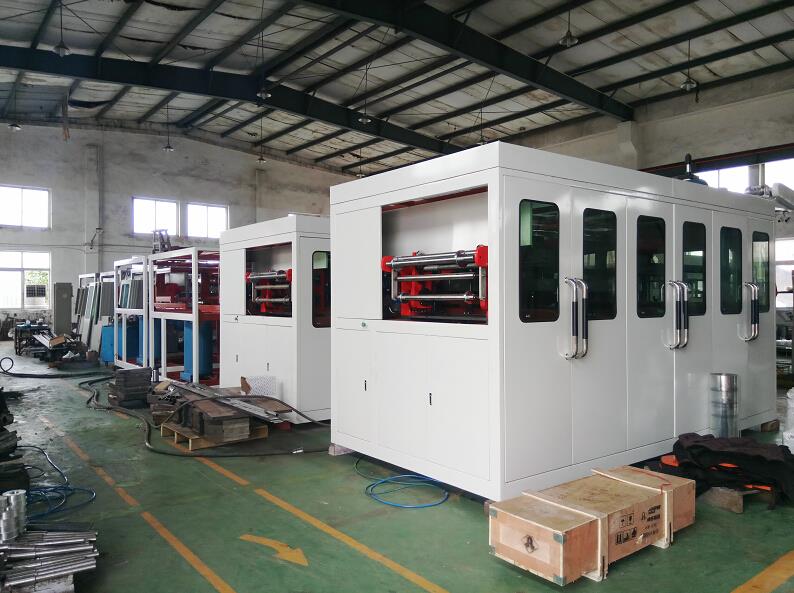

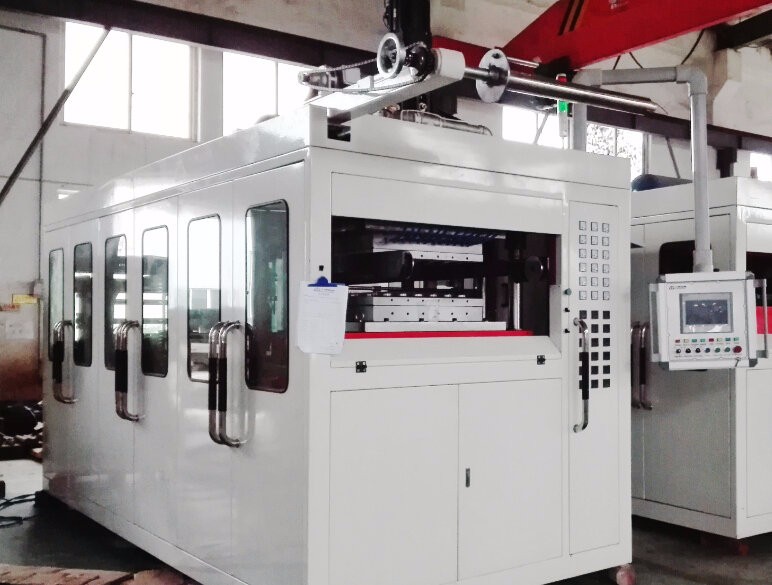

Automatic Drinking Yoghurt Coffee Hot Ice cream Jelly Cup Forming Producing Machine

Features of Plastic Cup Making Machine

1. Suitable for Multiple Plastic Materials

The machine supports PP, PET, PLA, PVC, HIPS, BOPS, and other thermoforming materials, making it suitable for disposable food packaging and eco-friendly biodegradable cup production.

2. Full Servo Hydraulic Control System

The machine adopts a full servo hydraulic control system to ensure smooth operation, stronger forming power, and more stable product quality during high-speed production.

3. Large Forming Area and High Production Speed

With a maximum forming area of 750 × 480mm and production speed up to 35 strokes per minute, the machine is suitable for medium and large-scale disposable cup manufacturing.

4. PLC Intelligent Touch Screen Control

The touch screen control system supports electrical adjustment, recipe storage, temperature control, and remote maintenance, helping operators reduce workload and improve production efficiency.
