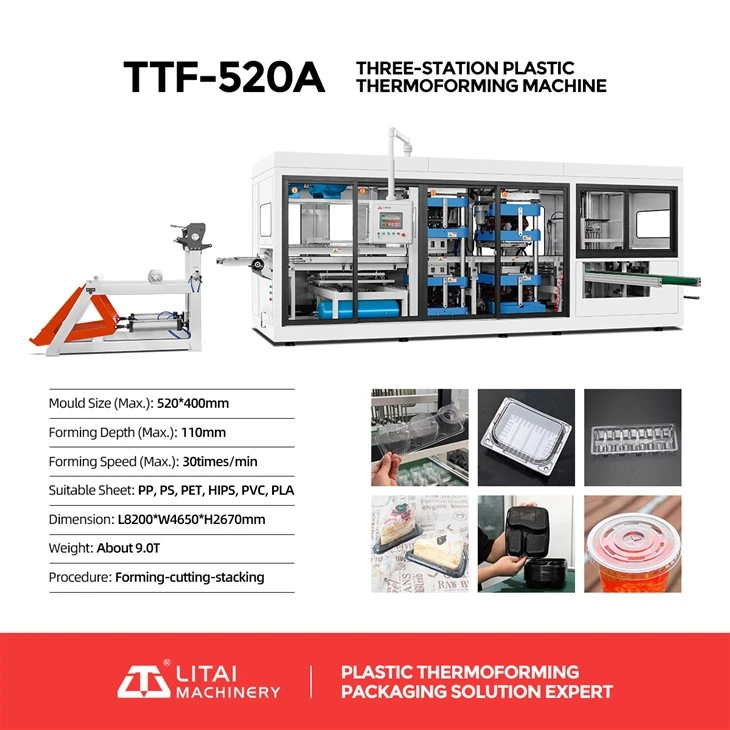

Disposable Container Forming Machine

LITAI is a China Disposable Container Forming Machine manufacturer specializing in multi-station and automatic thermoforming machines for cups, trays, lids, bowls and food packaging products. Our systems support PP, PET, PVC, PLA and other thermoplastic sheet materials for high-speed, stable production.
Wide material compatibility: Suitable for PP, PE, PVC, PET and other thermoplastic materials, processing sheet thickness from 0.15 mm films to 2 mm sheets.
Multi-station production process: Integrates forming, punching, cutting and related production steps to support efficient packaging manufacturing.
Stable forming performance: Designed for precise production, reliable operation and consistent product quality across different thermoforming applications.
Flexible application range: Suitable for food packaging, disposable plastic products and other thermoformed packaging needs.

Disposable Container Forming Machine of Parameters

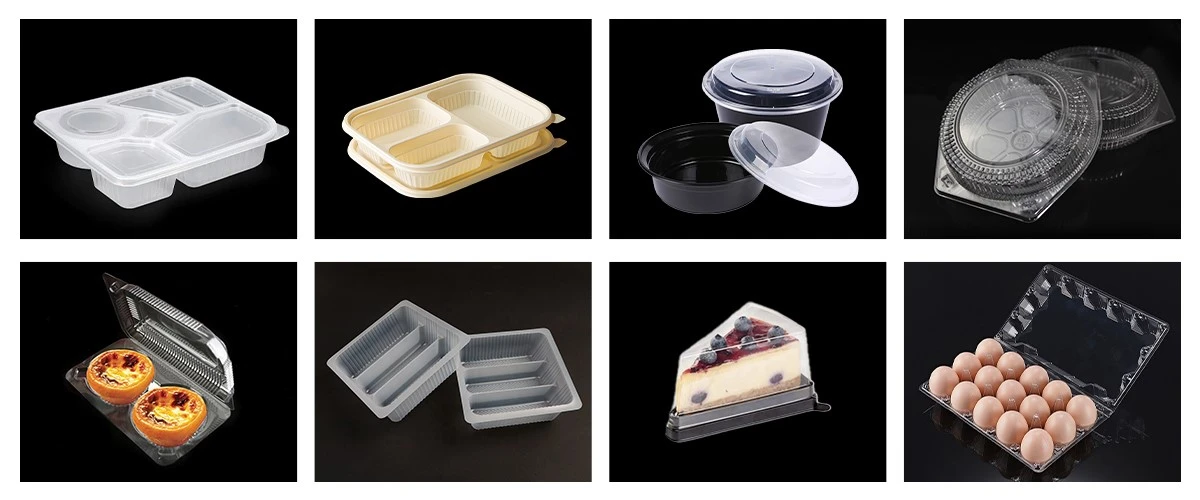

SAMPLE

Disposable container forming machine is forming, cutting and stacking in one process. It is used to produce different kinds of disposable plastic boxes, containers, trays, lids and etc.

Features of Disposable Container Forming Machine

1.sheet thickness:0.2-2mm

2. It's automatic for sheet loading, saving human labor, just need one person to operate, more efficiency.

3. All stations adopt servo motor: Simens from Germany, low noise, high speed.

4.Servo motor control upper and lower mould movement.

Structure & Design

Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency



Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

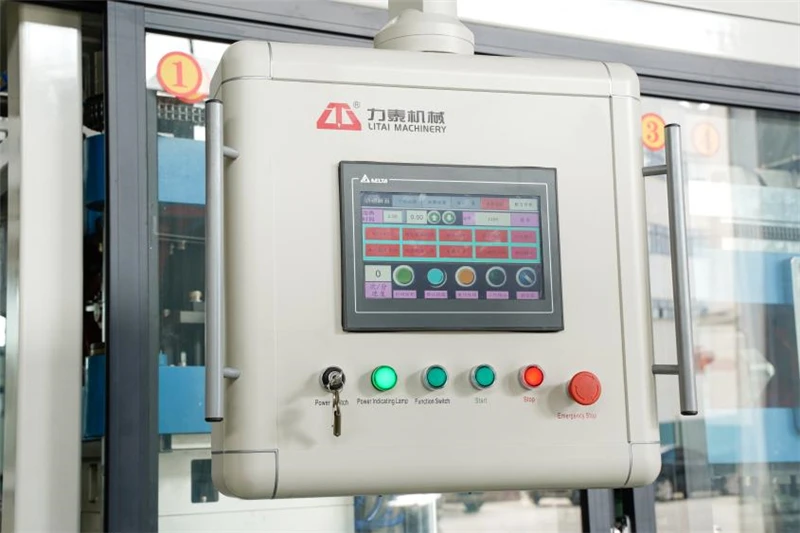

Operation Screen

Live Data Display – Shows temperature, pressure, and cycle status in real time.

mergency Stop & Alarms – Ensures quick response to operational hazards.

Multi-Language Support – Accommodates global operators.

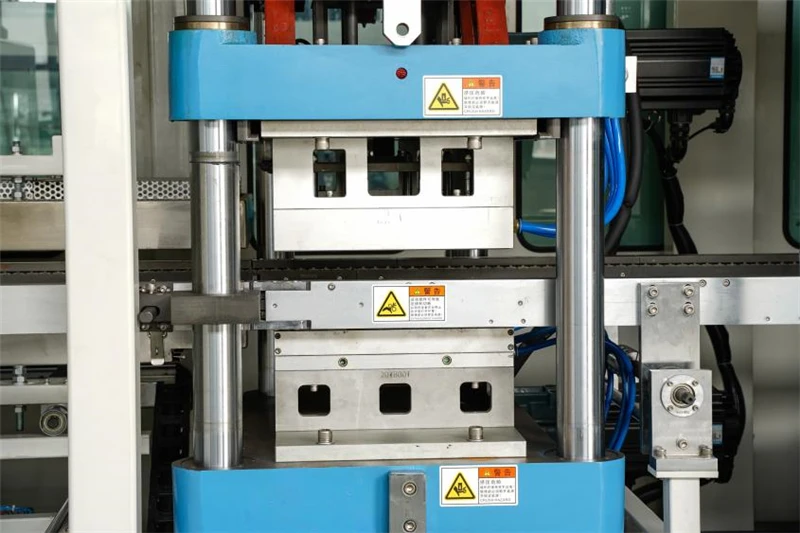

Forming Station

Max mould size:520*400mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

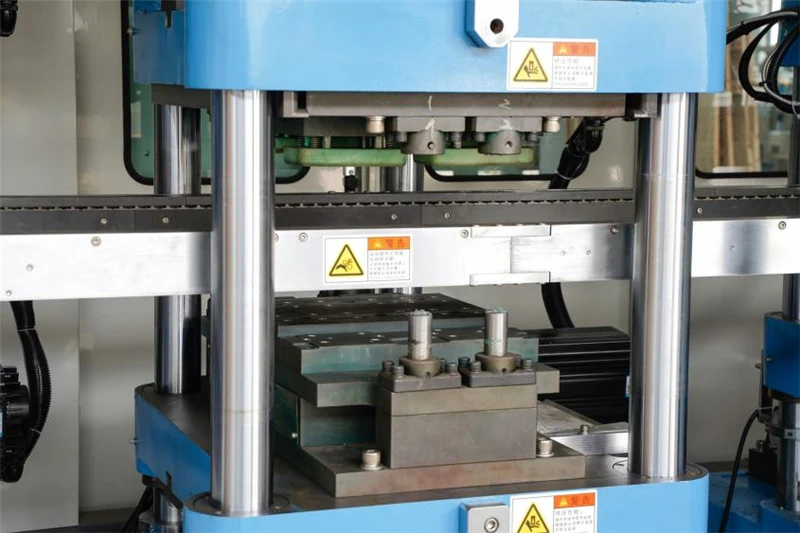

Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

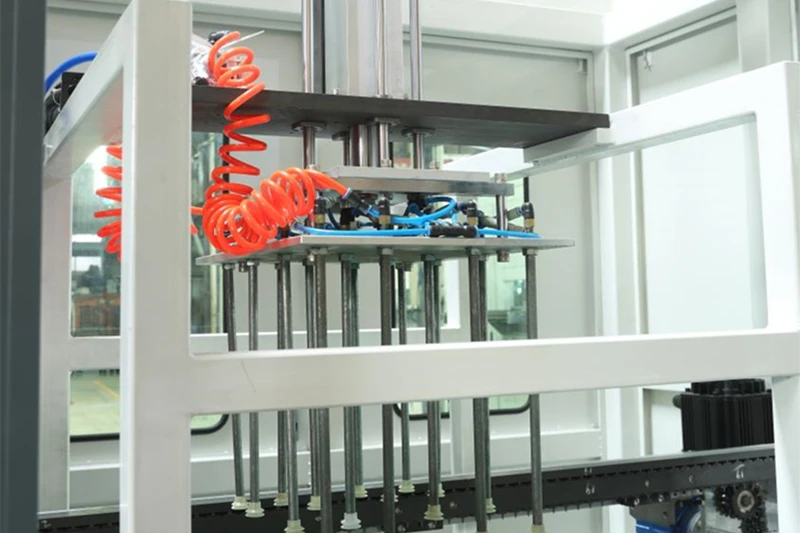

Stacking Station

Different stacking schemes can be formulated according to the customer's requirements.

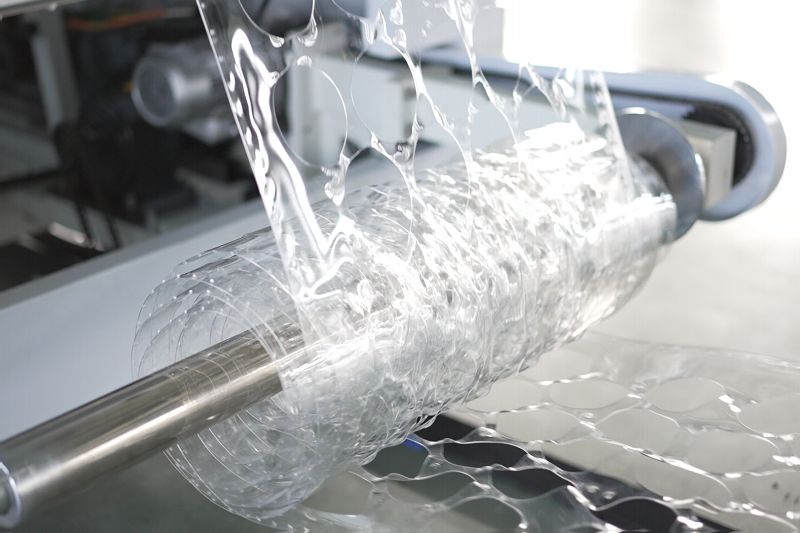

Waste Recycling

Edge trim is fed to the waste rewinding system for recycling. Its special clutch automatically cuts power when the roll becomes too large, preventing overload and extending motor lifespan.
