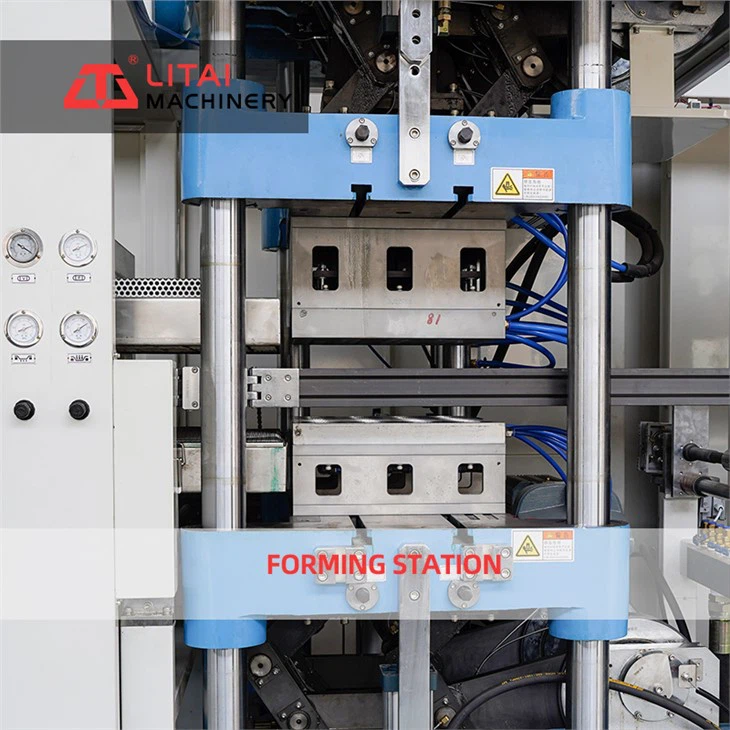

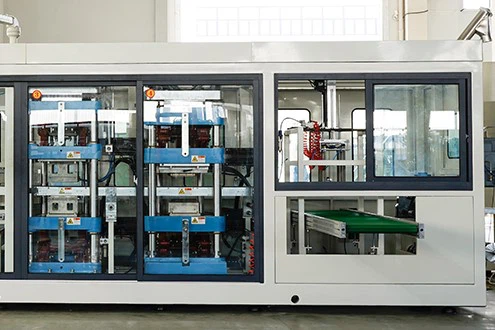

Hips Plastic Box Forming Machine
TTF 520A HIPS Plastic Box Forming Machine | LITAI Machinery
Your Complete Plastic Packaging Solution
Experience end-to-end automation with our advanced forming machine
3-Station Integration: Seamless forming, cutting & stacking.
Delta Smart System: Taiwan-made servo motors ensure ±0.1mm precision.
24/7 Production: Heavy duty 200*200mm square steel frame supports continuous operation.
|
MAIN TECHNICAL PARAMETER |
|
|
Model |
TTF-520A |
|
Forming Area |
520mm x 400 mm |
|
Forming Depth (Max.) |
110mm |
|
Sheet thickness |
0.2-1.6mm |
|
Forming Speed (Max.) |
30times/min |
|
Air pressure |
0.6-0.8mpa |
|
Air consumption |
3.0 m³/min |
|
Water consumption |
0.7 m³/h |
|
Sheet width (Max.) |
550mm |
|
Suitable Sheet |
PP, PS, HIPS, PET, PVC, PLA etc. |
|
Power supply |
AC 380V, 50Hz, Three-phase, Four-wire |
|
Used power |
50Kw |
|
Rated power |
120Kw |
|
Heating power |
75Kw |
|
Procedure |
Forming-cutting-stacking |
|
Dimension |
L8200*W4650*H2670mm |
|
Weight |
About 9.0T |
Key Technical Advantages
Five features and advantages of TTF-520A plastic box forming machine.
✔ Four-Pillar Structure
Enhanced stability for micron-level precision.
01
✔Delta Control System
Taiwan-made touchscreen with intuitive operation.
02
✔ Servo-Driven Feeding
15% faster material handling than conventional systems.
03
✔Square Steel Structure Frame
Heavy duty 200*200mm square steel frame supports continuous operation.
04
✔ Vibration-Free Base
Ensures consistent product quality (≤0.3mm tolerance)
05
Why Global Manufacturers Trust Us?
Technical Specifications:
Max Forming Area: 520×400mm
Material Thickness: 0.2-2.0mm (HIPS/PP/PS/PET/PLA)
Production Speed: Up to 30 cycles/min
Power: 120kW (Energy-saving mode available)
Procedure:Forming-cutting-stacking
Power supply:AC 380V, 50Hz, Three-phase, Four-wire
Dimension:L8200*W4650*H2670mm
Weight:About 9.0T
30% Energy Savings with intelligent heating control.
Quick Mold Change (Under 40 minutes).
CE & ISO Certified for international standards compliance.
Self-lubricating components reduce downtime and save 50% of labor costs.
Products Description
Free Sample Production with your materials
We will give priority to molds similar to yours for product proofing.
We provide free material proofing, customers can make product proofing according to the materials they need.
We will send samples to customers for free (freight is paid by the customer, and the freight will be reduced after signing the order).
On-Site Training Program worth $5,000
We provide customers to learn equipment operation at Litai Machinery Factory (free food and accommodation).
We provide free online learning installation and debugging operation.
We will arrange engineers to come to the door for installation, debugging and operation learning (paid).
Applications

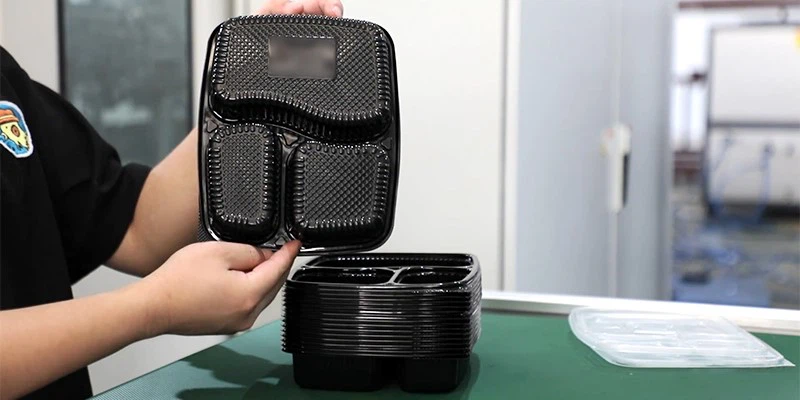

Perfect for food packaging, medical containers, Agriculture,and industrial parts packaging. Request samples to experience the precision of our HIPS thermoforming technology firsthand!
Food packaging

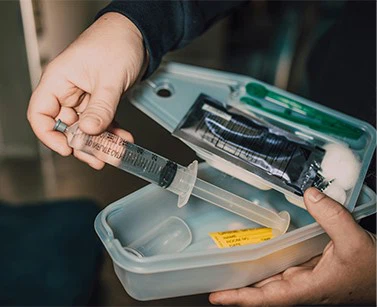

Medical containers
Agriculture

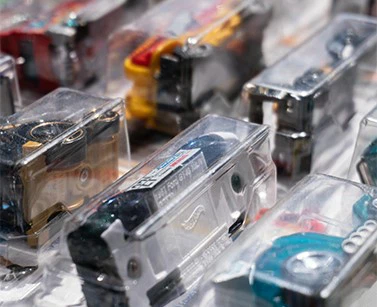

Industrial parts packaging
Client Testimonial
"After switching to LITAI's TTF 520A, our packaging line efficiency increased by 40% while reducing scrap rate to under 1%." - Packaging Solutions Europe.
FAQ
Q: Q: Minimum order quantity?
A: Single machine available
Q: Q: Lead time?
A: Standard 6 weeks (Express shipping option)
Q: Q: After-sales service?
A: 18-month warranty with global support network
