Plastic Trays Food Machinery
Model: TTF-520A
Station：Three station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-2mm
Forming Speed (Max.): 40times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
Plastic trays food machinery is suitable to high demand of food packaging products: Lid, fresh, tray, moon cake tray, disposal food tray and boxes, instant noodle bowl lid, the tea/coffee cup lid, ice creams cups, jelly cups, household plastic packaging containers and etc.
Plastic Trays Food Machinery Technical Parameter
| Model | TTF-520A |
| Station | Three station |
| Mould Size (Max.) | 520*400mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 40times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 120Kw |
| Heating power | 75Kw |
| Procedure | Forming-cutting-stacking |
| Dimension | L9300*W4200*H2800mm |
| Weight | About 9.0T |

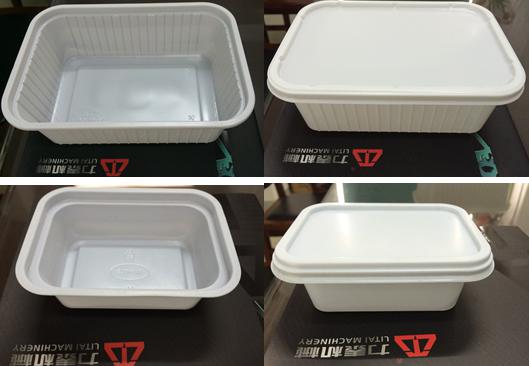

Finished Product Display
A plastic cup thermoforming machine is widely used in the processing of PP, PE, PVC, PS, PET, and other plastic sheets. It can produce various food packaging products such as plastic cups, plastic boxes, plastic plates, plastic trays, plastic bowls, and so on.
Plastic Trays Food Machinery of Features
1. can achieve multi-purpose in one machine
2. adopting hydraulic four-colum structure, more stable and high efficiency.
3. operated smoothly with low noise and strong mould clamping force.
4. high capacity with labor cost saving
5. Each area temperature is controlled by one Temperature controller
6. All processing steps (sheet feeding,heating , stretching , forming , in-mould cutting ) are full-automatic
7. Machine frame adopts Square steel, more stronger and steady.
8.One machine can produce different kinds of products with different moulds.
9. The operation is controlled by PLC & Touch Screen
Structure & Design
Heating Device
Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly
Operation Screen
Live Data Display – Real-time temperature, pressure, and cycle status.
Emergency Stop & Alarms – Quick response to hazards.
Multi-Language Support – For global operators.
Forming Station
Max mould size:520*400mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming
Cutting Station
Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force
Stacking Station
Different stacking schemes can be formulated according to the customer's requirements.
Waste recycling
Edge trim is fed to the waste rewinding system for recycling. Its special clutch automatically cuts power when the roll becomes too large, preventing overload and extending motor lifespan.
