PP/PS Sheet Extruder Machine
Model: TJ-750E
Sheet width (Max.): 750mm
The Range of Sheet Thickness: 0.3~1.8mm
Rated Power: 320KW
Screw Rod Diameter: 125mm
Suitable Materials: PP/PS
The TJ-750E is a high-efficiency PP/PS Sheet Making Machine for PP, HIPS, and PE. Max output 350kg/h with energy recovery system. Ideal for thermoforming sheets and stationery.
The PP/PS Sheet Making Machine is a robust manufacturing solution designed for producing high-quality plastic rolls. It is specifically engineered to process Polypropylene (PP), High Impact Polystyrene (HIPS), and Polyethylene (PE) resins. With a high output capacity of 350kg/h, this machine produces sheets with uniform thickness and excellent surface finish, making it the primary equipment for supplying material to thermoforming machines and stationery manufacturers.

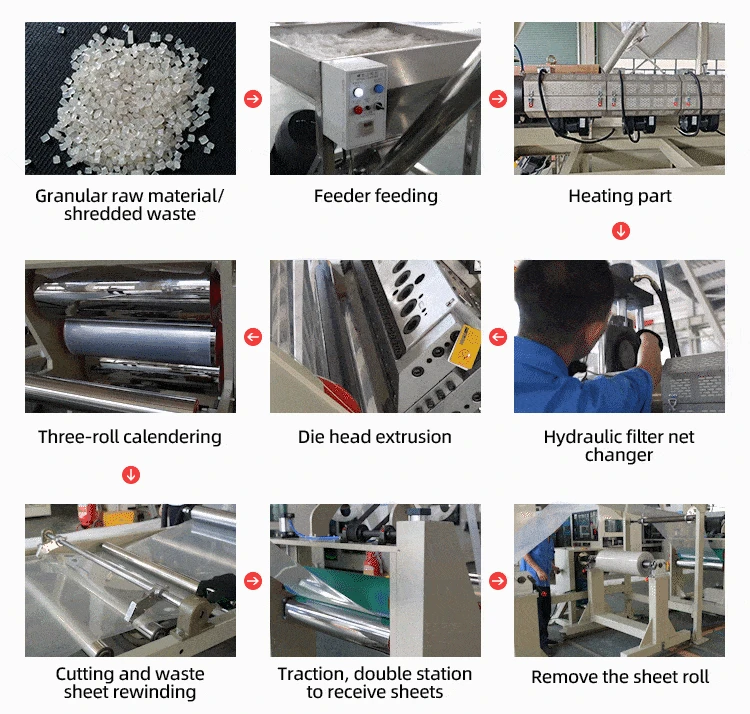

PP/PS Sheet Making Machine---- Application
PP/PS Sheet Making Machine----Technical Parameters
| Model | TJ-750E |
| Maximum output | 400kg/h@0.7mm |
| Suitable Sheet | PP,PS |
| Sheet Width (Max.) | 750mm |
| Mould width | 950mm |
| Sheet Thickness | 0.3-2.0mm |
| Compressed air source pressure | 0.6-0.8Mpa |
| Screw Rod Dia | 125mm |
| Screw L/D Ratio | 35:1 |
| Max. Output | 400kg/hour |
| Rated Current | 500A |
| Rated Powe | 320kW |
| Energy consumption | 220kW |
| Main Motor Power | 160kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L15388*W3615*H2900mm |
| Weight | About 12T |
PP/PS Sheet Making Machine----Specifications
