Milk Cup Making Machine
Model: TQC-750
Mould Size (Max.): 750mm x 480 mm
Forming Depth (Max.): 180mm
Sheet width (Max.): 770m
Main Motor Power: 188.55KW
Heating Power: 146KW
Dimension: L8500*W2200*H3200mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
Milk Cup Making Machine is designed with most advanced thermoforming technology, a combination of mechanical, electrical and pneumatic components. And the whole system was controlled by PLC.
The machine has man-interface operation which sends sheet by chain, running by cam, forming by up and down mould and cutting by mould knives.
It combines the sheet sending, heating, stretching, forming, cutting into one process. The machine is suitable for PP, PE, PS, ABS material.
They are widely used in producing disposable tablewares as various kinds of cups like ice cream cups, milk cups, jelly cups,cup covers, instant noodle bowls, toy boxes, etc. The forming area is 750 x 480mm, forming depth 180mm, max production speed 55 cycle/min.
Paramenters of Milk Cup Making Machine
| Model | TQC-750 |
| Mould Size (Max.) | 750*480mm |
| Sheet width | 770mm(Max) |
| Max. Forming Depth | 180mm |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 770mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 3.0m³/min |
| Water Consumption | 0.7m³/h |
| Rated Power | 173Kw |
| Heating Power | 146Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L8500*W2300*H3300mm |
| Weight | About 8T |
Products Description
Ideal Applications
The TQC-750 is engineered for mass production of:
Beverage Cups: Water cups, Coffee cups, Bubble tea cups (PP/PET).
Dairy Packaging: Yogurt cups, Ice cream cups, Jelly cups.
Eco-Friendly Packaging: PLA biodegradable cups and bowls.
Invest in High Speed: Ready to upgrade your output to 42 cycles/minute?

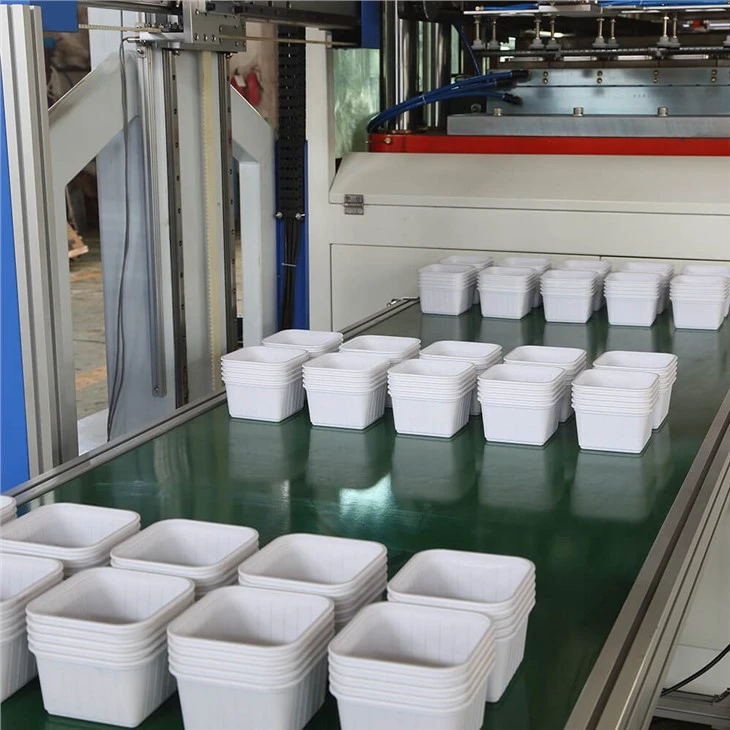

Milk Cup Making Machine----Samples
Functional Characteristics Of Milk Cup Making Machine?
- Fully servo-driven, silent, vibration-free, excellent thermoforming, and high speed.
- Compact design, occupying minimal floor space.
- Integrates sheet feeding, heating, stretching, forming, and trimming in one process.
- Automatic unloading device allows adjustable production parameters without material waste.
- One-to-one intelligent temperature control system in the electric furnace for even heating, energy efficiency, rapid temperature rise, and three low-temperature baking cycles.
- Servo-driven forming and cutting molds with bi-directionally adjustable stroke; the upper mold's closing direction is electrically adjustable for easy height adjustments and faster, vibration-free operation.
- PLC for automatic cutting, counting, and transportation.
- Only 1-2 operators needed for packing.
