Yogurt Cup Making Machine
Nom du produit : Plastic cup lid forming machine
Tension : 380V 3P 50HZ
Capacité de production :15-35 cycle/min
Plastic Type : PP, PS, PET, HIPS, PE
Usage :to produce plastic lids,medicine/food/daily/electronics/hardware

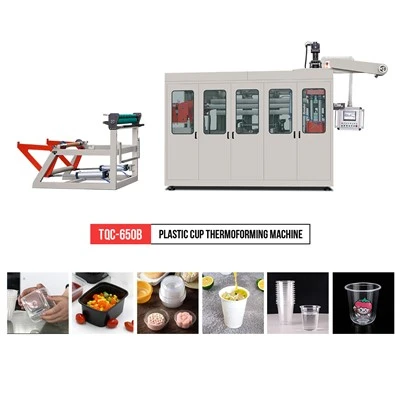

TQC-650B plastic thermoforming machine(yogurt cup making machine) adopt servo motor for sheet feeding and streching, PLC for programe, touch screen for operation, stable, low noise and high efficiency. Suitable for producing plastic cups, yogurt cup, fruit containers, bowls, trays, fast food boxes and etc.
Features of Yogurt Cup Making Machine
1. Suitable for Multiple Plastic Materials
The machine supports PP, PET, PLA, PVC, HIPS, BOPS, and other thermoforming materials, making it suitable for disposable food packaging and eco-friendly biodegradable cup production.
2. Full Servo Hydraulic Control System
The machine adopts a full servo hydraulic control system to ensure smooth operation, stronger forming power, and more stable product quality during high-speed production.
3. Large Forming Area and High Production Speed
With a maximum forming area of 750 × 480mm and production speed up to 35 strokes per minute, the machine is suitable for medium and large-scale disposable cup manufacturing.
4. PLC Intelligent Touch Screen Control
The touch screen control system supports electrical adjustment, recipe storage, temperature control, and remote maintenance, helping operators reduce workload and improve production efficiency.
Yogurt Cup Making Machine of Parameters
| Model | TQC-650B |
| Max Forming Area | 650*320mm |
| Max Forming Depth | 125mm |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 660mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 2.0m³/min |
| Water Consumption | 0.5m³/h |
| Rated Power | 98Kw |
| Heating Power | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7000*W2000*H3100mm |
| Weight | About 6T |
Yogurt Cup Making Machine---Finished Product Samples:
FAQ
Can this machine produce Biodegradable (PLA) cups?
Yes, absolutely. PLA material is sensitive to temperature. The TQC-750S features German Heaters with Segment Control, allowing for precise temperature management to form PLA sheets perfectly without melting or deforming them.
What is the actual production capacity?
The machine runs at a maximum speed of 42 cycles per minute. Your total output depends on the mold layout (cavities). For example, if you use a 32-cavity mold for small water cups, the output would be 32 x 42 = 1,344 cups per minute.
How does the control system work?
The machine uses a Micro PLC system combined with a Man-Machine Interface (touchscreen). This allows the entire operation-from material feeding to cutting-to be automated and easily monitored by a single operator.
