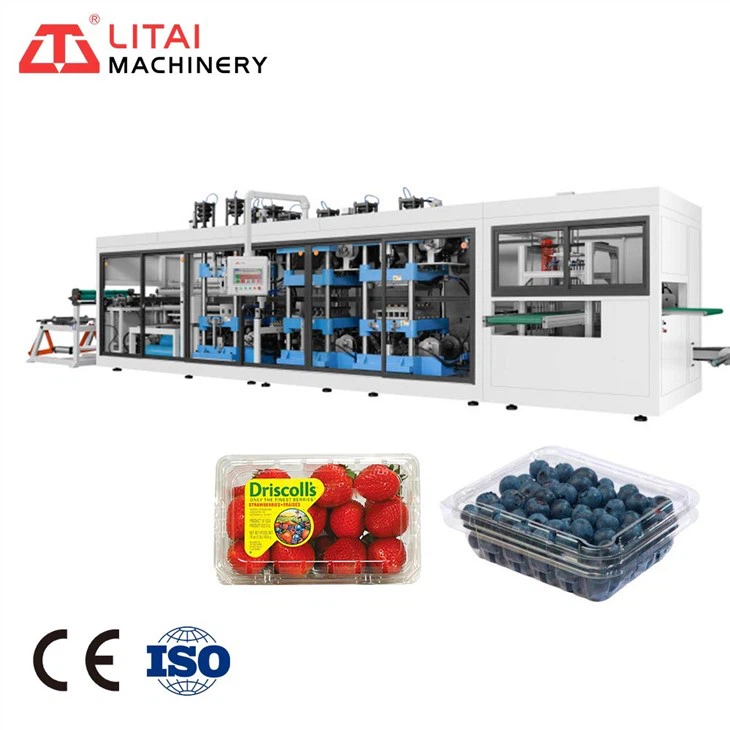

Plastic Clamshell Making Machine
Model: TTF-700AF
Max.Forming Area: 700*550 mm
Max.Forming Height: 120mm
Sheet thickness：0.2-2mm
Forming Speed (Max.): 35times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
Plastic Clamshell Making Machine uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product transportation, and edge material winding.
It is suitable for processing different materials, such as PP, PS, HIPS, PET, PVC, PLA etc. processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.
It is used to produce different sizes of strawberry fruit box, cake box, egg trays, lids, fruit container box and etc.The machine is full automatic driven by servo motor.
Plastic Clamshell Making Machine of Technical parameter
| Model | TTF-700AF |
| Station | Four station |
| Mould Size (Max.) | 700*600 mm |
| Forming Depth (Max.) | 120mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 35times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.6m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 730mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 211Kw |
| Heating power | 118Kw |
| Procedure | Forming-punching-cutting-stacking |
| Dimension | L13000*W4500*H2800mm |
| Weight | About 25.0T |

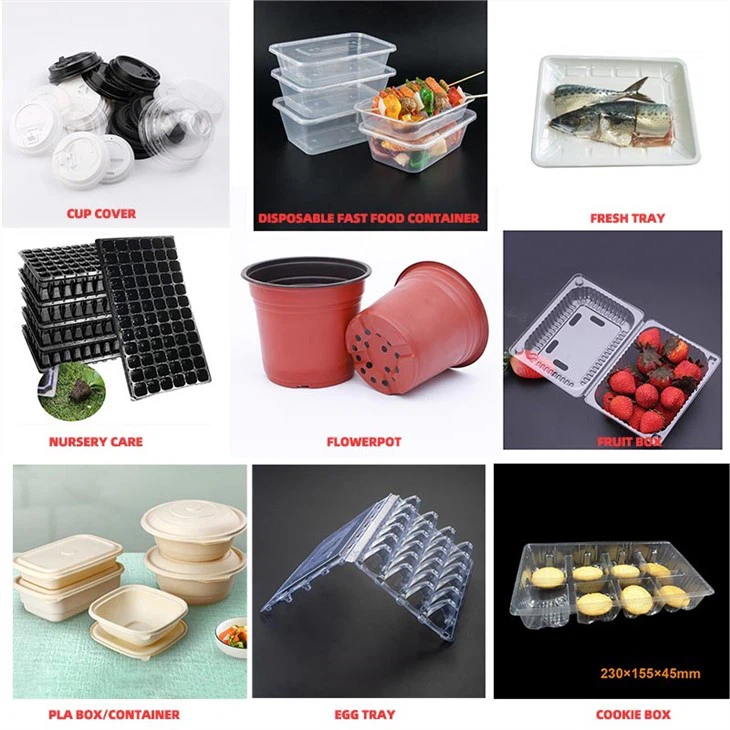

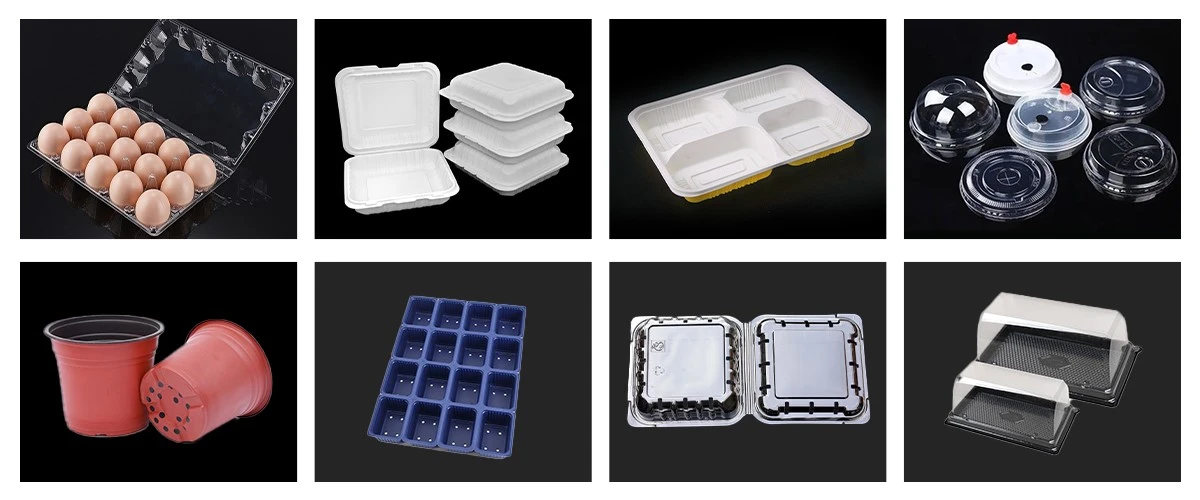

Finished Product Display
A machine is widely used in the processing of PP, PE, PVC, PS, PET, and other plastic sheets. It can produce various food packaging products such as plastic cups, plastic boxes, plastic plates, plastic trays, plastic bowls, and so on.
Plastic Clamshell Making Machine of Feature:
*It adopts touch screen and PLC which is easy to control.
*Oven system automatically move out when the power is off,offering a quite safe working condition.
*Easy to change and install moulds, and different moulds decide the products, no matter the size or the shape.
*It's a motorized "un-rewinder" to feed the film into the thermoforming machine. No need to pull the sheet directly.
*Hanging type of microcomputer whose frame is from Germany, hi-technology
*Reliable performance, endurance,simple operation, safety and excellent productivity.

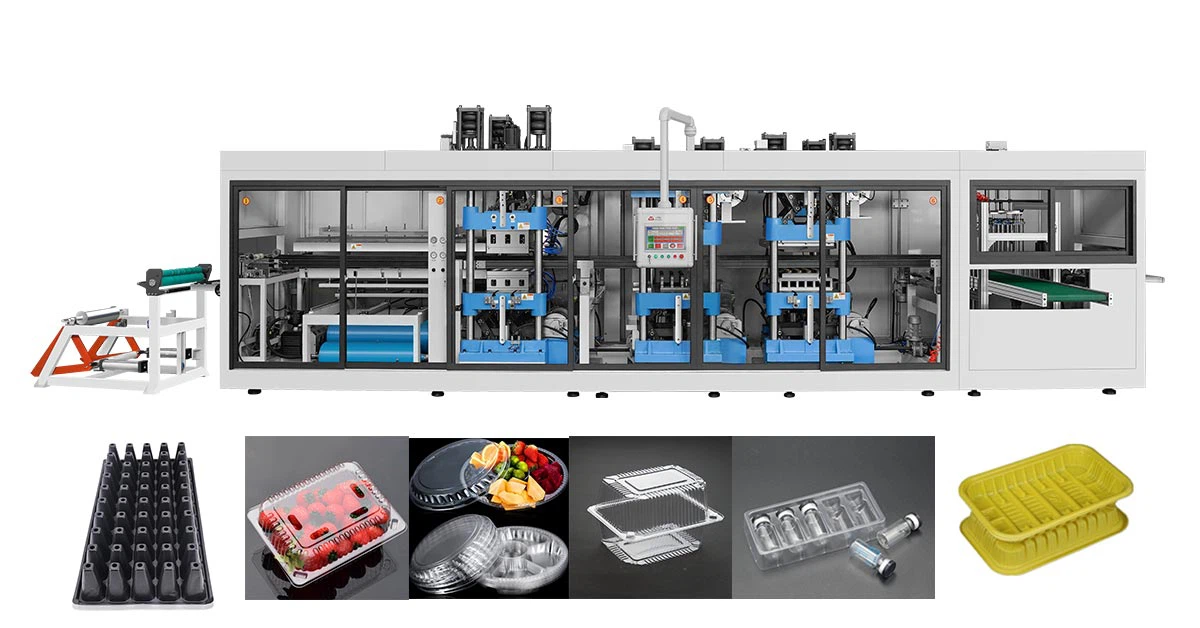

Machine detail
FAQ
1. Can this thermoforming machine handle both vacuum and pressure forming methods?
Yes, the thermoforming machines support both vacuum forming and pressure forming techniques, allowing flexible production depending on mold complexity.
2. What thermoplastic materials are compatible with these thermoforming machines?
These machines are compatible with a wide range of thermoplastics including PET, PVC, Polypropylene (PP), and Polystyrene (PS).
3. Are fully automatic configurations available for these thermoforming machines?
Yes, the product range includes manual, semi-automatic, and fully automatic thermoforming machines featuring automatic sheet feeding, cutting, stacking, and inline quality control.
4. What industries commonly use these thermoforming machines?
Industries such as food packaging, automotive manufacturing, medical devices, electronics, and consumer goods extensively utilize these thermoforming machines.
5. How does the machine ensure precision for complex mold shapes?
The machines use precise temperature control and pressure regulation, combined with high-quality molds to achieve detailed and consistent product shapes.
