PET Plastic Container Making Machine
Model: TTF-520AF
Station：Four station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-1.6mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire

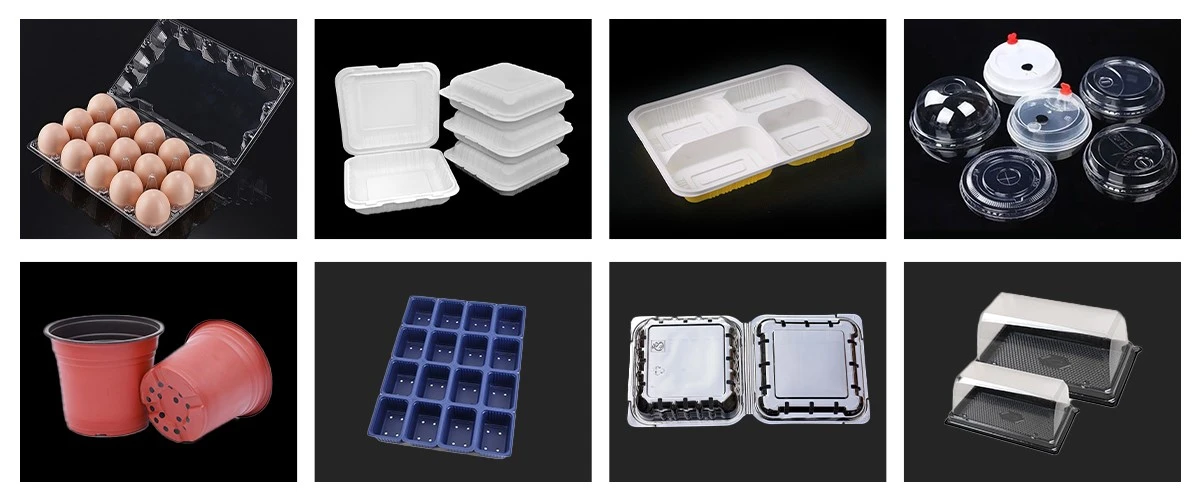

Application: trays, containers, boxes, lids, etc.

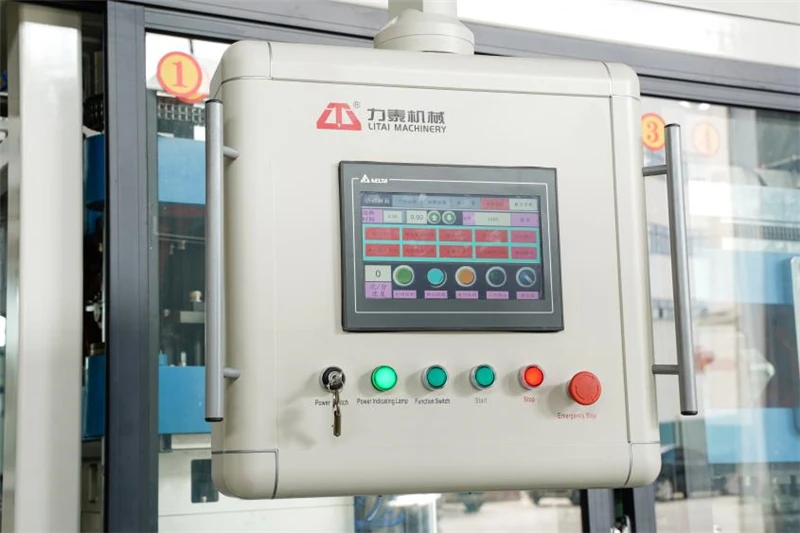

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
PET Plastic Container Making Machine---Application

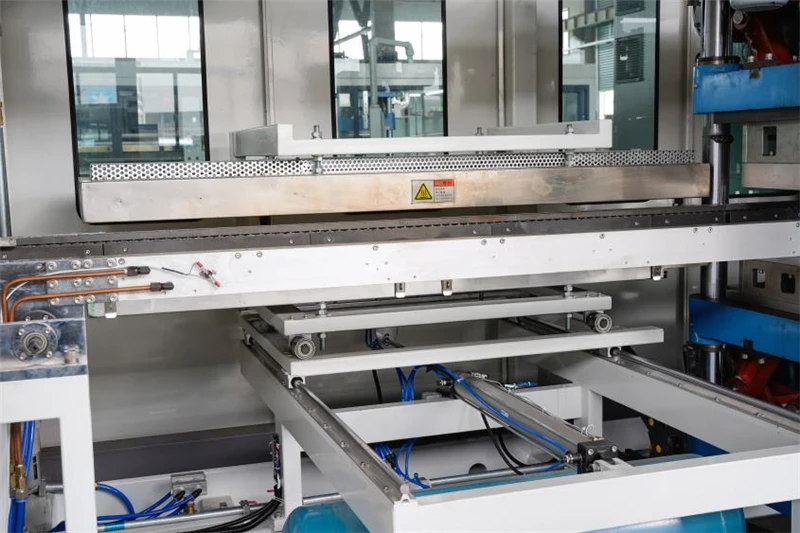

Suitable for PP, BOPS, HIPS, PET, PVC& PS etc sheet materials , it adopts Positive and negative forming way to meet different kinds of plastic containers request. this machine with Multi-zone upper and lower ovens incorporating an infrared heating system to ensure the heating more stable and efficiency. This machine is widely used in food package industrials. such as plastic box ,cake containers, egg trays , take away food trays ,coolfresh fodd containers etc.......
PET Plastic Container Making Machine--- Technical Parameters
| Model | TTF-820AF | TTF-700AF | TTF-520AF |
| Mould Size (Max.) | 820*650mm | 700*550 mm | 520*400mm |
| Forming Depth (Max.) | 140mm | 120mm | 110mm |
| Sheet thickness | 0.2-1.6mm | ||
| Forming Speed (Max.) | 30times/min | ||
| Air pressure | 0.6-0.8mpa | ||
| Air consumption | 4.2m³/min | 3.6m³/min | 3.0m³/min |
| Water consumption | 1.0m³/h | 0.7m³/h | |
| Sheet width (Max.) | 850mm | 730mm | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | ||
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire | ||
| Rated power | 246Kw | 211Kw | 136Kw |
| Heating power | 171Kw | 118Kw | 75Kw |

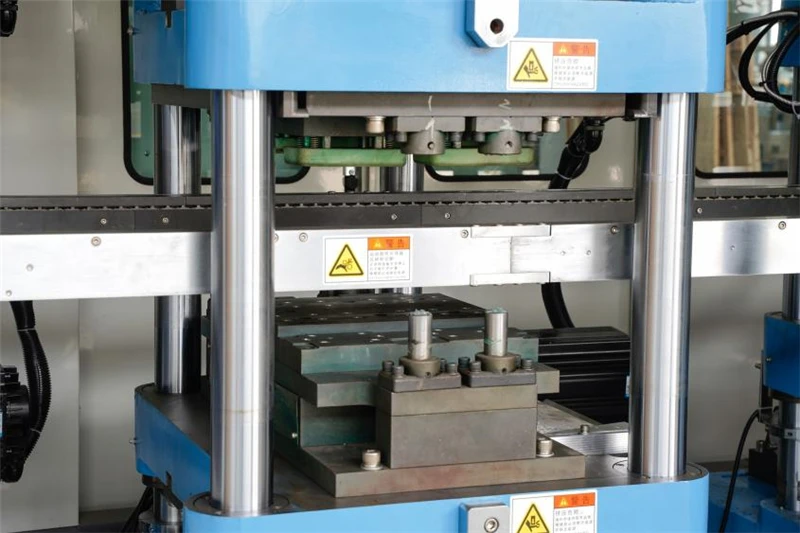

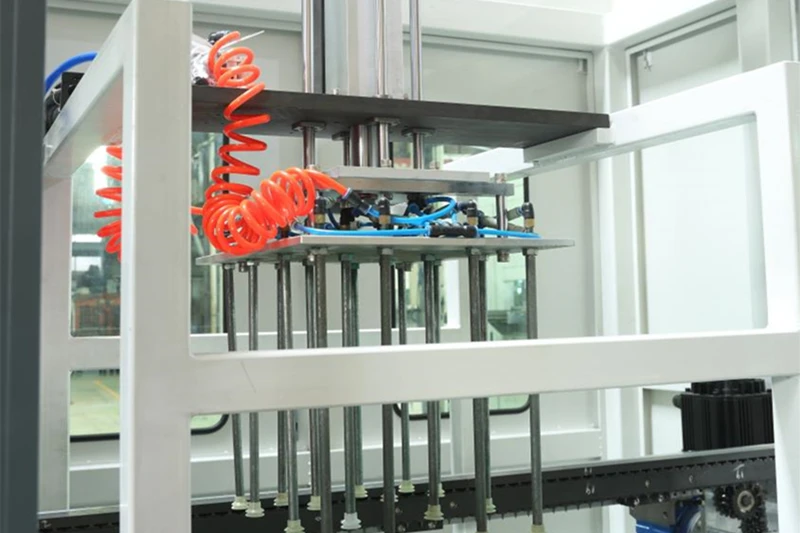

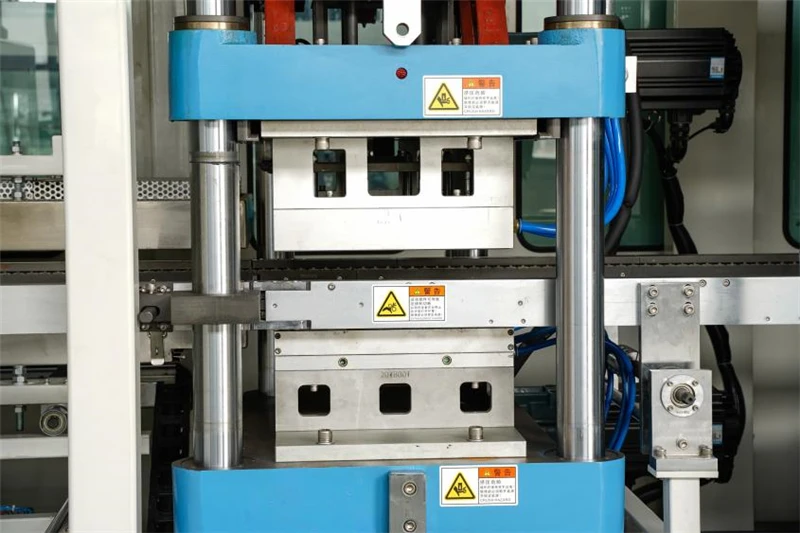

| Procedure | Forming-punching-cutting-stacking | ||
| Dimension | L13000*W4300*H2800mm | L13000*W4500*H2800mm | L10800*W4650*H2670mm |
| Weight | About 21.0T | About 25.0T | About 11.0T |
FAQ
1: What is a thermoforming machine used for?
A thermoforming machine is primarily used to shape plastic sheets into custom packaging, trays, containers, and product components. It is widely applied in industries such as food packaging, medical device production, automotive parts, and consumer goods. By heating plastic sheets and forming them over molds, thermoforming machines provide high-efficiency, cost-effective, and precise plastic forming solutions suitable for large-scale manufacturing.
2: What type of plastic is used for thermoforming?
The most commonly used plastics for thermoforming include PP, PS, HIPS, PET, PVC, PLA etc. These materials are selected for their excellent moldability, durability, and clarity, making them suitable for packaging, trays, and protective components. Material choice depends on factors such as product application, temperature resistance, and food safety requirements, ensuring reliable performance in industrial and consumer applications.
3: Is thermoforming safe for food packaging?
Yes, thermoforming is safe for food packaging when using FDA-approved plastics such as PET, PP, or PS. Thermoformed containers and trays provide hygienic, durable, and customizable solutions for fresh, frozen, and processed foods. Proper selection of materials and adherence to food safety standards ensure that thermoforming machines produce compliant packaging suitable for commercial and retail food applications.
