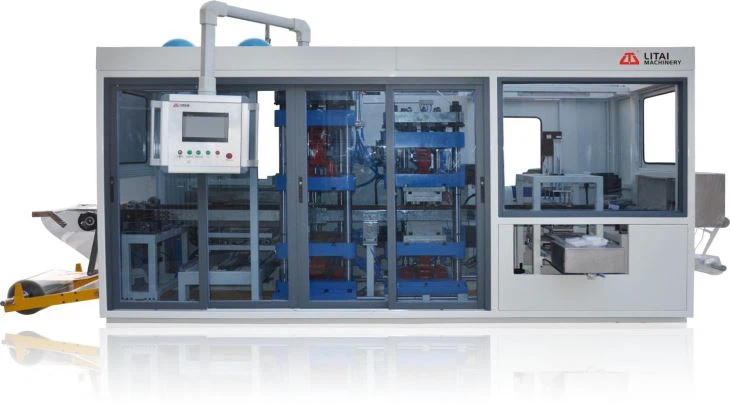

PET Food Container Making Machine
Model: TTF-520A
Station：Three station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-2mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
PET Food Container Making Machine maximum forming area of the machine is 700mm x 550mm, the maximum forming depth is 120mm, and the fastest forming speed is 30 times per minute. This machine is driven by a full servo motor, ensuring stable operation, low noise, and high efficiency. It is widely used in the production of plastic pallets, plastic boxes, plastic covers, takeaway boxes, egg trays, and other packaging products. By heating the plastic sheet and forming it in the mold, plastic products of various shapes can be produced. Compared with traditional single-station or double-station thermoforming machines, the three-station design greatly improves production efficiency and product quality.
PET Food Container Making Machine---Technical Parameter
| Model | TTF-520A |
| Station | Three station |
| Mould Size (Max.) | 520*400mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 40times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 120Kw |
| Heating power | 75Kw |
| Procedure | Forming-cutting-stacking |
| Dimension | L9300*W4200*H2800mm |
| Weight | About 9.0T |
PET Food Container Making Machine---Application&Features
1. It is widely used in plastic trays,containers,boxes,lids,etc
2. Positive and negtive pressure thermofoming machine.
3. Heating adopt "Elstein" ,famous brand vacuum insulation cotton.
4. PLC and humanized color touch screen control operation interface.
5. Mould automatic memory system.
Structure & Design
Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency

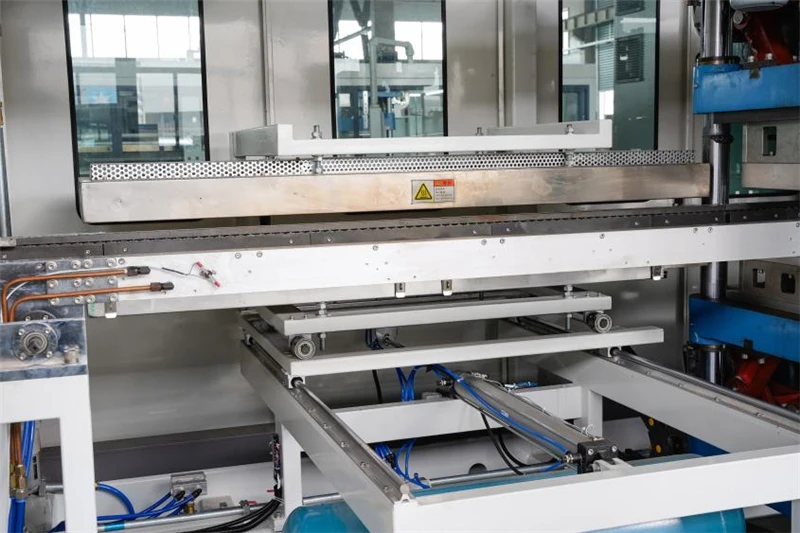

Heating Device
Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

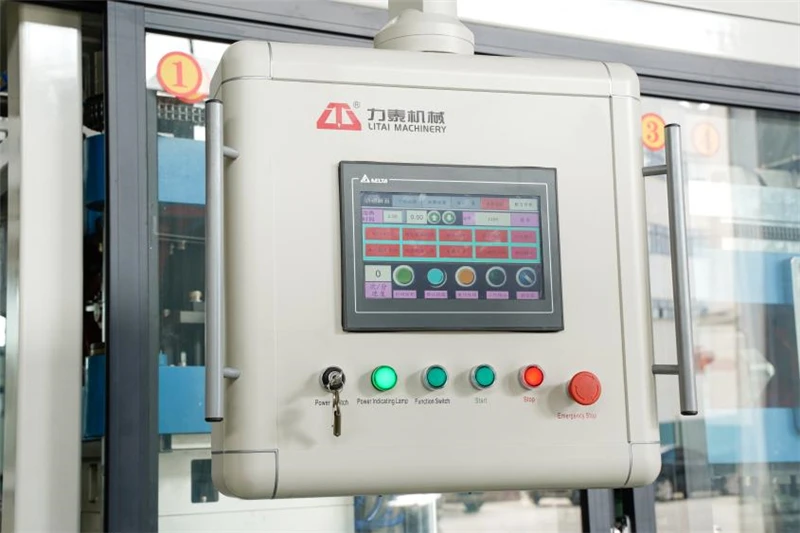

Operation Screen
Live Data Display – Shows temperature, pressure, and cycle status in real time.
mergency Stop & Alarms – Ensures quick response to operational hazards.
Multi-Language Support – Accommodates global operators.

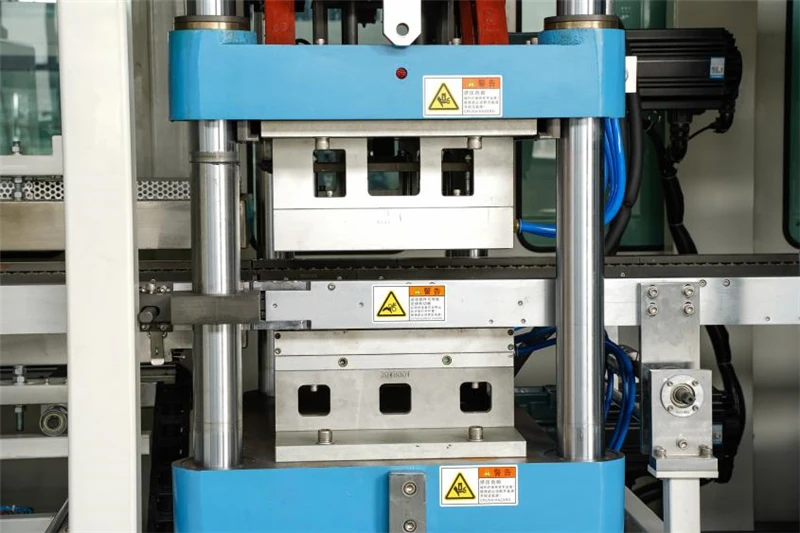

Forming Station
Max mould size:520*400mm
Max depth:110mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

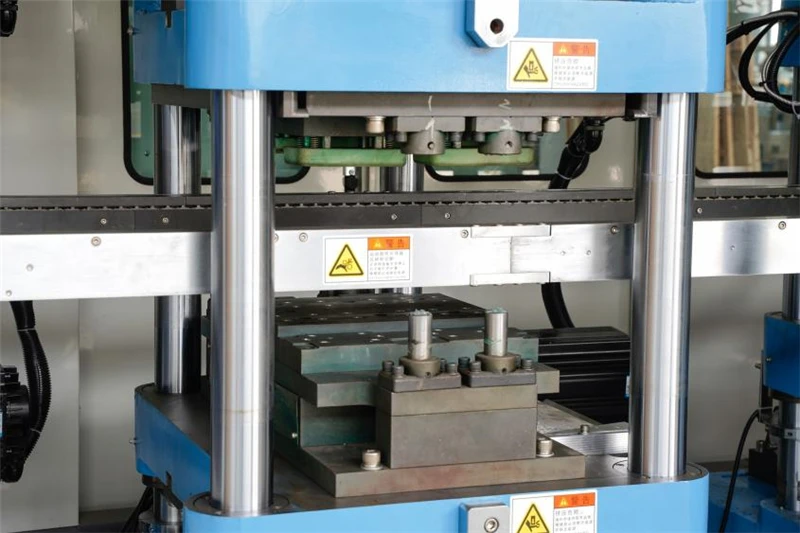

Cutting Station
Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

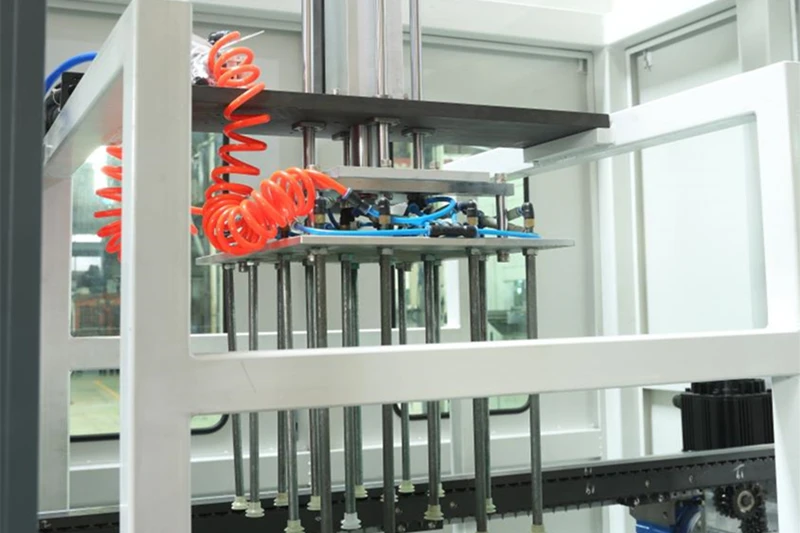

Stacking Station
Different stacking schemes can be formulated according to the customer's requirements.

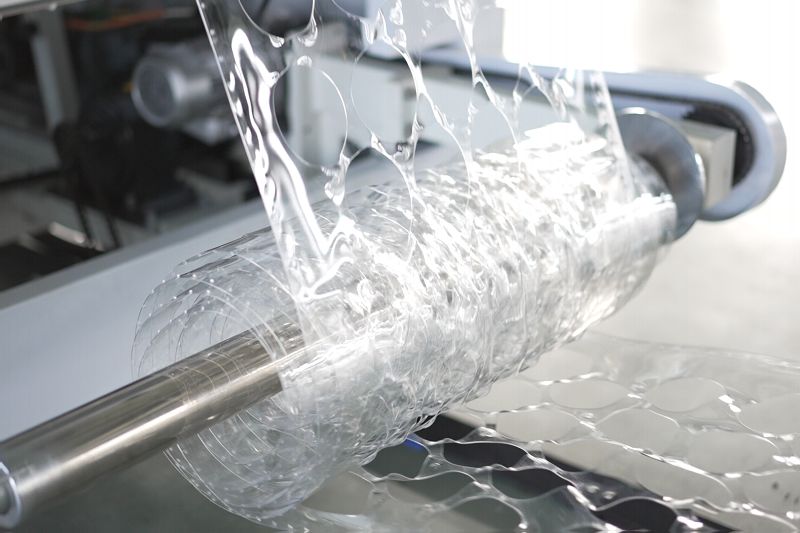

Waste Recycling
Edge trim is fed to the waste rewinding system for recycling. Its special clutch automatically cuts power when the roll becomes too large, preventing overload and extending motor lifespan.
