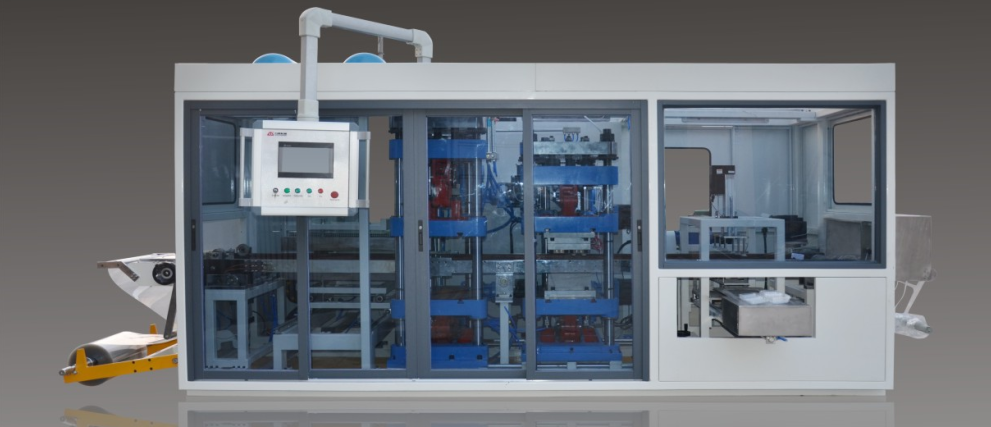

Disposable Plastic Food Container Machine

Disposable plastic Food Container Machine uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product transportation, and edge material winding.
Wide material compatibility: Suitable for PP, PE, PVC, PET and other thermoplastic materials, processing sheet thickness from 0.2 mm films to 2 mm sheets. This Food Container Machine is designed to process PP, PS, HIPS, PET, and PVC sheets into a wide range of products such as plastic cups, lids, bowls, trays, plates.

Application of Disposable Plastic Food Container Machine

Food container machine is positive and negative pressure combined which is totally driven by servo motor.  The machine include sheet loading-sheet heating-forming-cutting-stacking-waste material rewinding, the whole line is driven by servo motor.

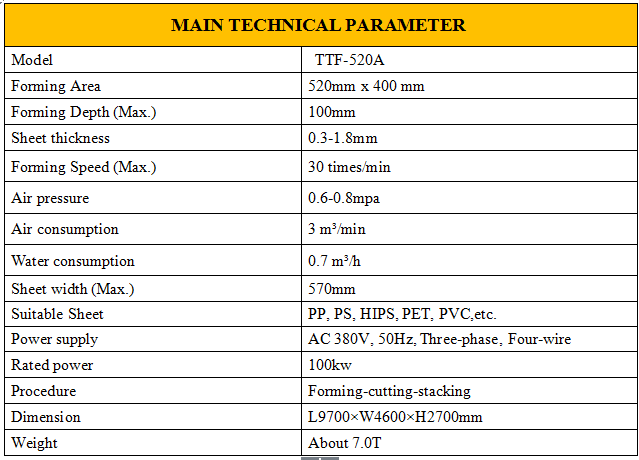

Parameters of Disposable Plastic Food Container Machine:

 Disposable Plastic Food Container Machine Specification:

1.upper mould and lower mould in every station uses servo motor to control the operatipn

2. The lubricating oil injected into the guide plate can be maintained for about half a year after a full injection. It is recommended to add once every 2-3 months. The filling is semi solid grease, which will not leak out on the machine to keep the machine clean.

3. The distance between two station can be adjusted through touch screen

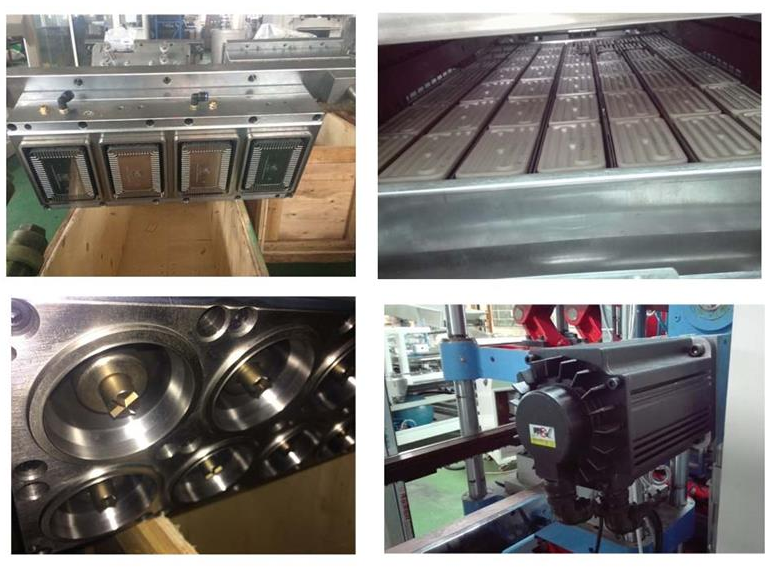

Machine detail

Explore the detailed structure and configuration to see how our machine ensure precision, stability, and efficiency.

Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

Operation Screen

Live Data Display – Shows temperature, pressure, and cycle status in real time.

mergency Stop & Alarms – Ensures quick response to operational hazards.

Multi-Language Support – Accommodates global operators.

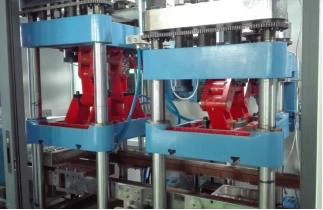

Forming Station

Max mould size:700*550mm
Max depth:120mm
Servo driven plug assist on top forming station
Stable square struction,provide stable forming

Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

Stacking Station

Different stacking schemes can be formulated according to the customer's requirements.

Waste Recycling

Edge trim is fed to the waste rewinding system for recycling. Its special clutch automatically cuts power when the roll becomes too large, preventing overload and extending motor lifespan.
