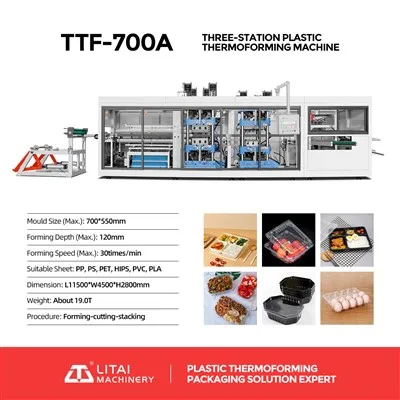

Plastic Plates Making Machine
Model: TTF-700A
Max.Forming Area: 700*550 mm
Max.Forming Height: 120mm
Sheet thickness：0.2-1.6mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire

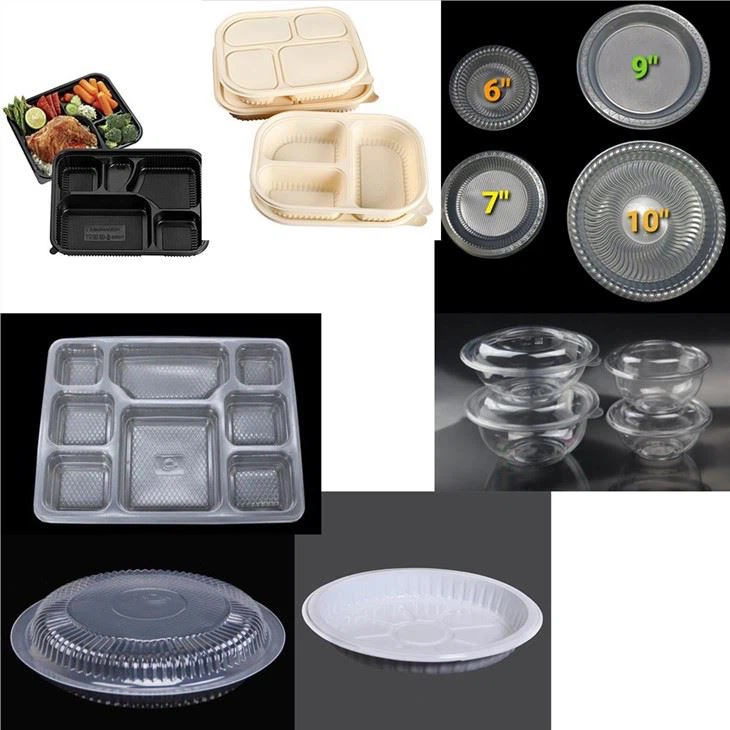

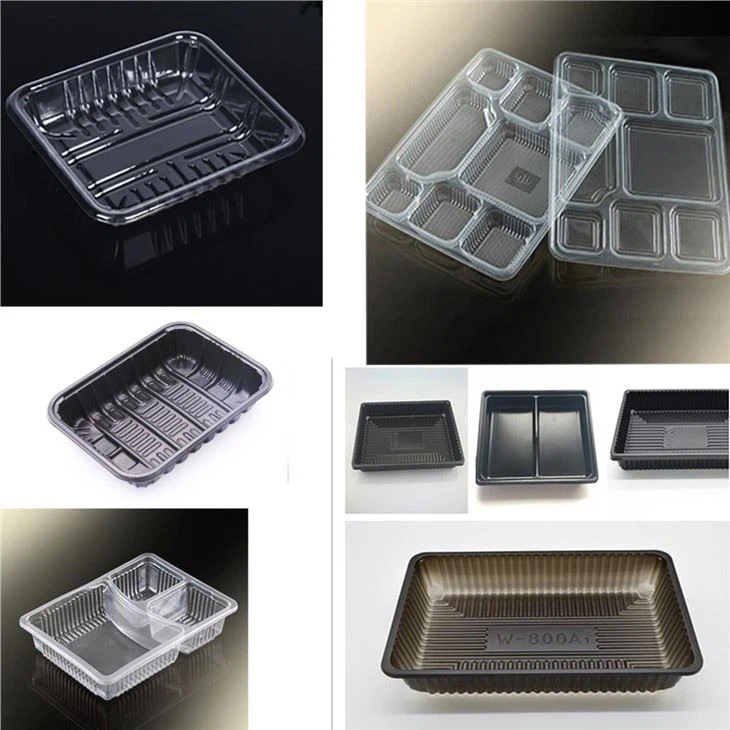

Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
TTF series automatic plastic making machine is the core product of our latest development of LITAIMACHINERY. The machine integrates feeding, heating, forming, cutting, stacking, and waste recycling. Versatile and suitable for most customer requirements, it can produce plastic trays, containers, boxes, lids, etc. The machine is completely driven by Delta servo motors. Smooth operation, low noise, high efficiency and good quality.
Plastic Plates Making Machine of Product Paramenters:
|
Station |
Four stations |
Three station |
Four stations |
Three station |
|
Model |
TTF-700AF |
TTF-700A |
TTF-520AF |
TTF-520A |
| Forming Area | 700mm x 600 mm | 520mm x 400 mm | ||
| Forming Depth (Max.) | 135mm | 110mm | ||
| Sheet thickness | 0.2-2.0mm | |||
| Forming Speed (Max.) | 30times/min | |||
| Air pressure | 0.6-0.8mpa | |||
| Air consumption | 3.6 m³/min | 3.0 m³/min | ||
| Water consumption | 0.7 m³/h | |||
| Sheet width (Max.) | 730mm | 570mm | ||
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | |||
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire | |||
| Used power | 105Kw | 95Kw | 55Kw | 50Kw |
| Rated power | 210Kw | 190kw | 110Kw | 100Kw |
| Heating power | 118Kw | 75Kw | ||
| Procedure | Forming-punching-cutting-stacking | Forming-cutting-stacking | Forming-punching-cutting-stacking | Forming-cutting-stacking |
| Dimension | L13000*W4700*H2750mm | L11500*W4700*H2750mm | L11000*W4600*H2700mm | L9700*W4600*H2700mm |
| Weight | About 25.0T | About 19.0T | About 11.0T | About 9.0T |
Working Principle：
Plastic Plates Making Machine for Features

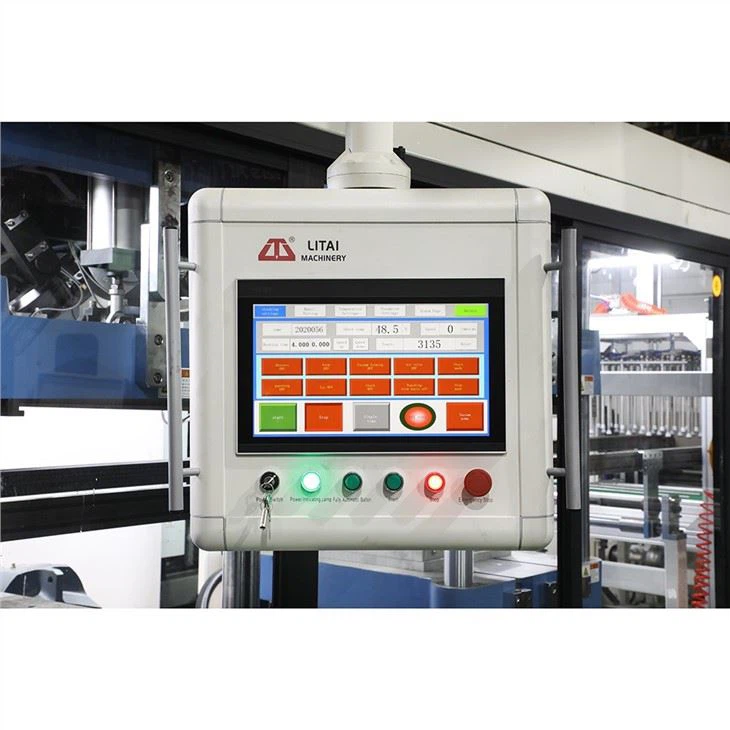

- Due to advanced automatic system, absolute value servo control system and operation interface of number axis aided parameter display for controlling, the series of thermoforming machine shows superior performance for processing PP, PS, OPS, PE, PVC, APET, CPET, etc.
- According to ergonomic principle, we design a simple mould replacing system, which can shorten the mould replacing time.
- The cooperation between cutting type of steel blade and design of stacking equipment can improve manufacturing speed and ensure maximum production area.
- Advanced heating system adopts new temperature control module with short response time can increase efficiency and reduce energy consumption..
- The series of TTF series thermoforming machine has low noise at working and has high reliability, which is very convenient for maintenance and operation.
Detailed Description：

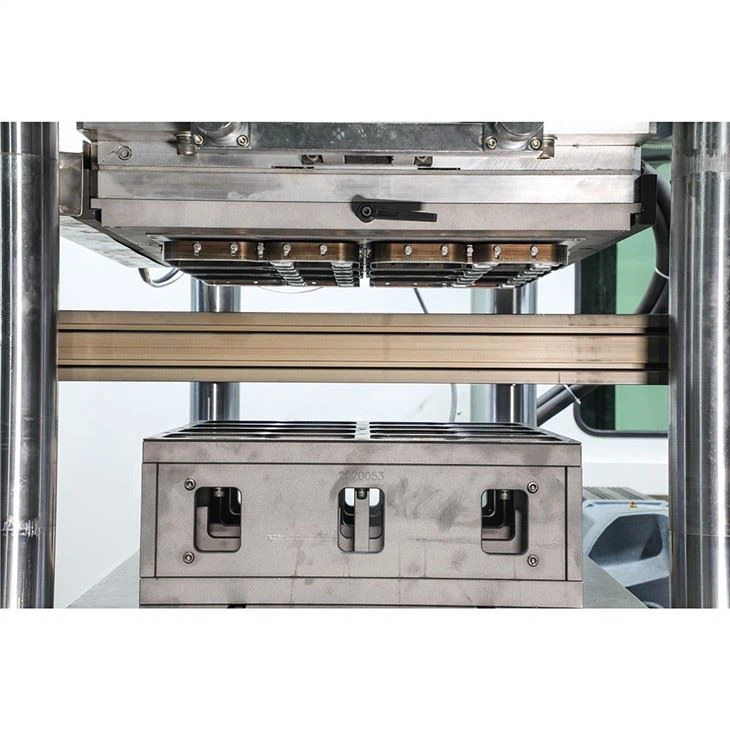

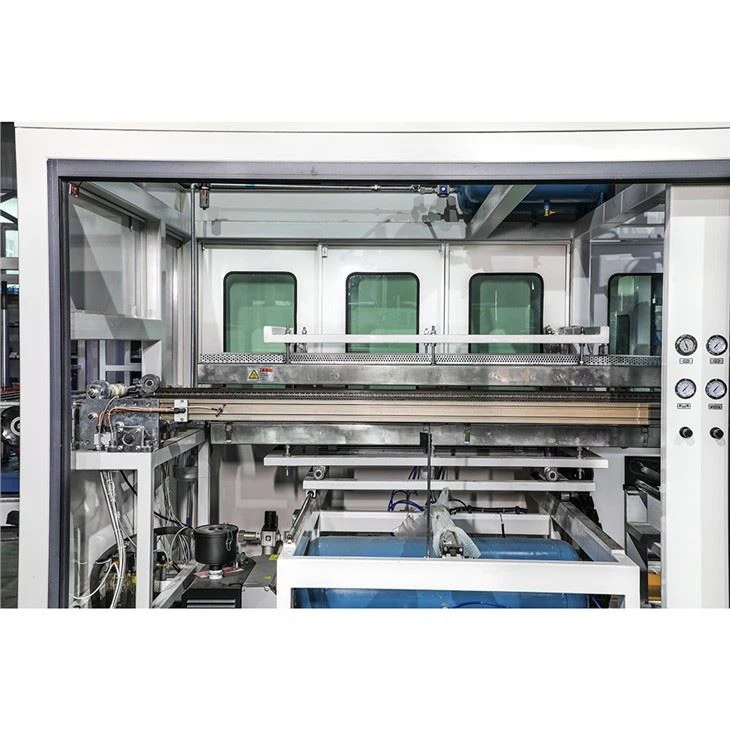

Every station is driven by the eccentric crank linkage structure.

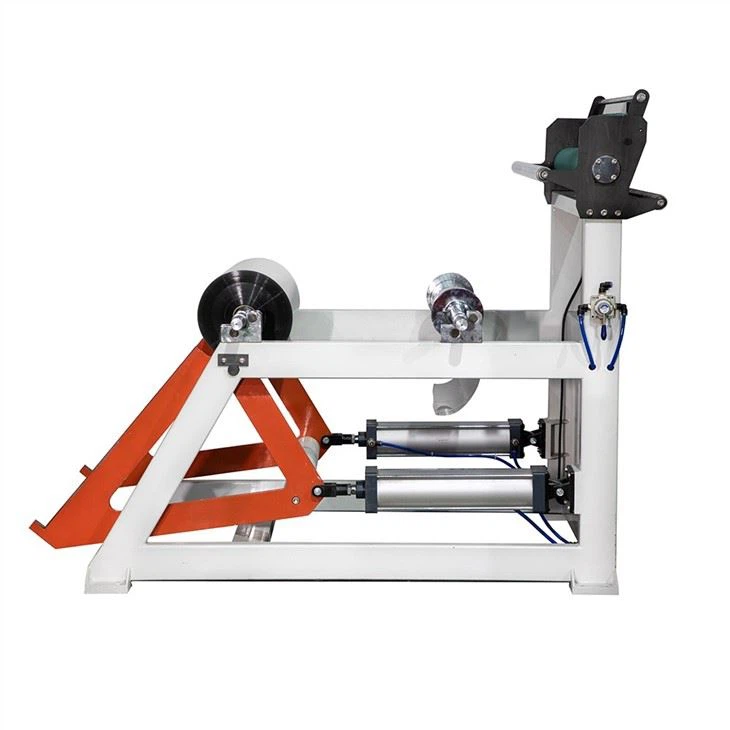

Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.

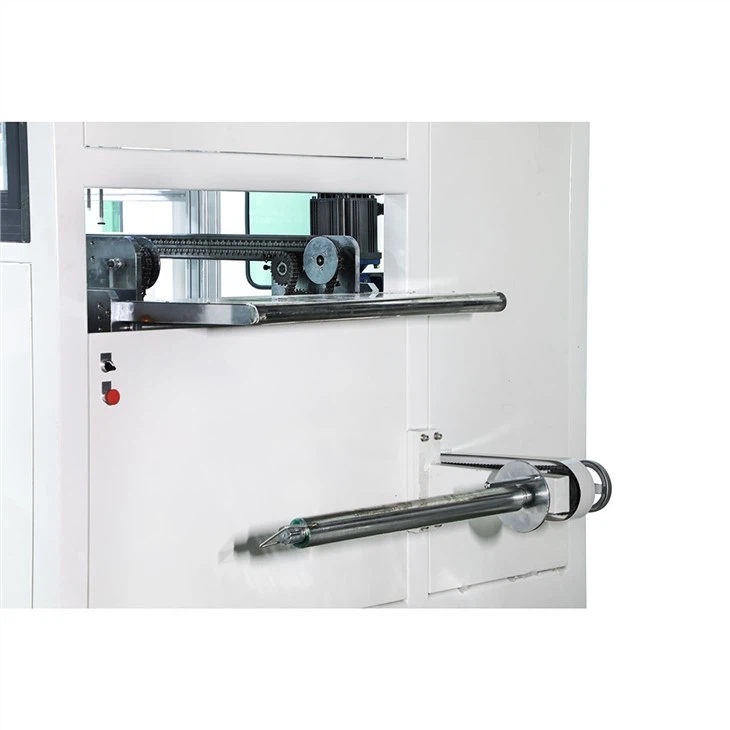

The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.
The machine adopts PID temperature system, it shows high precision, and temperature control tolerance ＜1℃.
There is a rapid mould change device, which shortens the time for mould change extremely.
Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.
