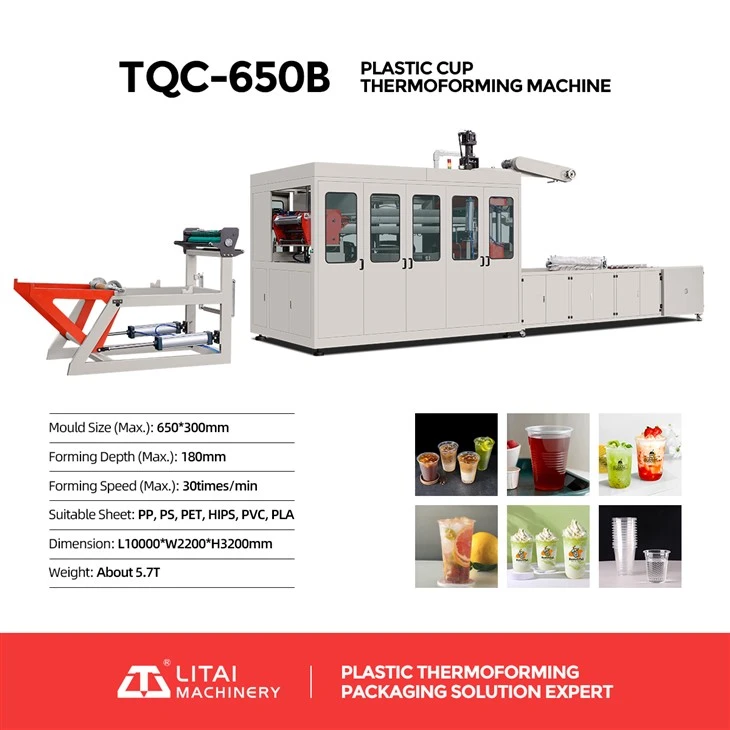

Water Cup Thermoforming Machine
High Efficiency: Reduces cycle time by 30% with servo-motor drive.
Precision: ±0.01mm repeatability for complex forming.
Certified: CE & ISO 9001 Compliant standards.
Customizable: Worktable size and stroke tailored to needs.
The TQC-650B is a versatile Plastic Thermoforming Machine for PP, PS, HIPS, PET, PVC, PLA etc. Fully automatic PLC control for making cups, bowls, and lids. Speed: 35 cycles/min.
Technical Parameter:
| Model | TQC-650B |
| Max Forming Area | 650*320mm |
| Max Forming Depth | 125mm |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 660mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 2.0m³/min |
| Water Consumption | 0.5m³/h |
| Rated Power | 98Kw |
| Heating Power | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7000*W2000*H3100mm |
| Weight | About 6T |

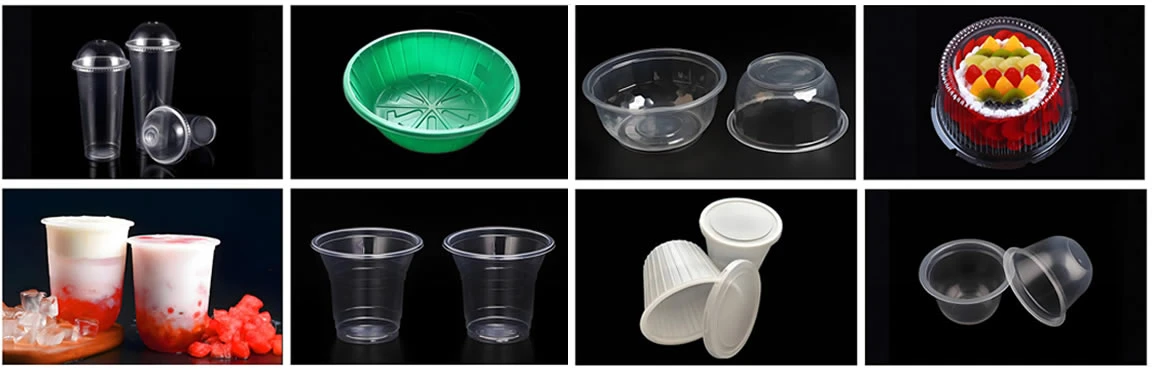

Sample Picture:
Machine Description:
-This machine adopts servo motor for sheet feeding and stretching, with characters of stable, easy operation, low noise.
-Adopts hydraulic four-pillar structure with the advantage of stable.
-It can produce various sizes of water cups by changing different moulds.
-It is mainly designed to produce water cup which is reusable and disposable,eco-friendly.
-Reliable quality, long life span,low noise, compact structure of the whole machine
-Completly automatic,strong mold locking ability, high production speed but short process
-It is a combination of mechanical,electrical and pneumatic components,and the whole system was controlled by micro PLC.it is operates with man-interface,which can works all by itself.
