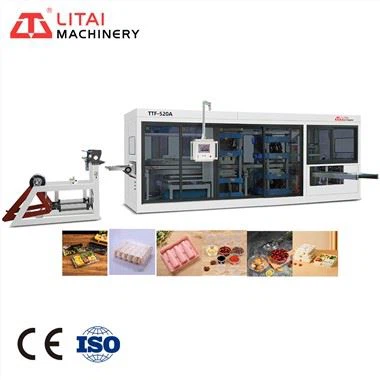

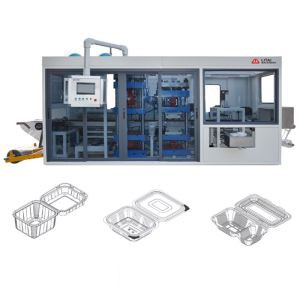

Disposable Food Box Making Machine

Disposable Food Box Making Machine

Suitable for PVC, PET, PP, PS, etc, the machine furnace produce heat to soften the plastic sheet, then vacuum pump sucks the plastic sheet down to the forming mould area to finish the forming, different forming mould enable to have different forming shape. It's suitable for the blister packaging in toys, hardware, food, electronic products, medicine, commodity, etc. Disposable food box making machine disposable take away box making machine packing machine for food.
Send Inquiry
Product Introduction

Application:

Suitable for PVC, PET, PP, PS, etc, the machine furnace produce heat to soften the plastic sheet, then vacuum pump sucks the plastic sheet down to the forming mould area to finish the forming, different forming mould enable to have different forming shape. It's suitable for the blister packaging in toys, hardware, food, electronic products, medicine, commodity, etc. Disposable food box making machine disposable take away box making machine packing machine for food.

Sample:

Product Paramenters:

Technical Parameters
Station Four stations Three station Four stations Three station
Model TTF-700AF TTF-700A TTF-520AF TTF-520A
Forming Area 700mm x 600 mm 520mm x 400 mm
Forming Depth (Max.) 135mm 110mm
Sheet thickness 0.2-2.0mm
Forming Speed (Max.) 30times/min 30times/min
Air pressure    0.6-0.8mpa
Air consumption    3.6 m³/min 3.0 m³/min
Water consumption    0.8 m³/h 0.7 m³/h
Sheet width (Max.)  730mm 550mm
Suitable Sheet  PP, PS, HIPS, PET, PVC, PLA etc.
Power supply  AC 380V, 50Hz, Three-phase, Four-wire
Used power 105Kw 95Kw 55Kw 50Kw
Rated power  210Kw  190kw 110Kw 100Kw
Heating power  118Kw 75Kw
Procedure  Forming-punching-cutting-stacking  Forming-cutting-stacking Forming-punching-cutting-stacking Forming-cutting-stacking
Dimension  L14000*W4700*H2750mm  L13000*W4700*H2750mm L11000*W4600*H2700mm L9700*W4600*H2700mm
Weight  About 25.0T  About 19.0T About 11.0T About 9.0T


What We Can Do?

You just tell me the sample size & photo that you want,let us do the remaining work:

  1. Recommend and manufacture suitable machine for you.

       2. Before delivery, we will test the machine until you are completely satisfied.

(You can come to our factory to inspect the running production line.)

3. After-sales service:
(1) Free Spare Parts;
(2) Machine installation and commissioning;(3) Training your workers;
(4) Machine maintenance and repair service ;
(5) Video/Online technical support.

4.LITAI project service:

(1) Complete production line;
(2) Drawing for factory layout and other information for helping customer to build the factory;
(3) Electric cabinet, water pump, air compressor, etc. that will be used in the new factory;
(4) Raw material;
(5) After warranty service.

Shipment:

Company Introduction:

We are a professional manufacturer of plastic sheet extrusion lines, thermoforming machines & auxiliary equipment in China. Our company has been a professional technician team with rich experience on the R&D of plastic sheet extrusion lines, disposable food box making machine disposable take away box making machine packing machine for food thermoforming equipment and forming molds for many years.

We can provide our clients with complete services from machine and mold design, manufacture, installation, debugging to worker training. We have got ISO9001:2000 Quality Management System and CE certificates. With the market as our guide and continuous creation and renovation, we have a good image in packaging and relative industries with high quality and good services. Our products are well sold throughout the country and exported to many different areas, such as Southeast Asia, Russia, Europe, the Middle East, Africa and America. Our company welcome all clients to visit our factory for the future communication and cooperation.
