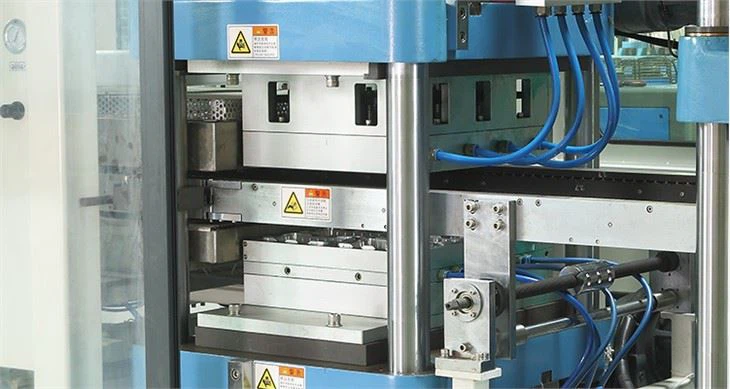

Mooncake Box Plastic Cake Box Thermoforming Machine
Model: TTF-520A
Station：Three station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-1.6mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
Mooncake Box Plastic Cake Box Thermoforming Machine of APPLICATION

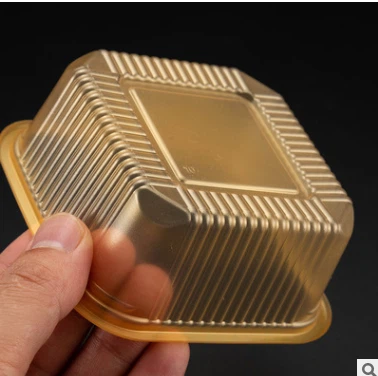

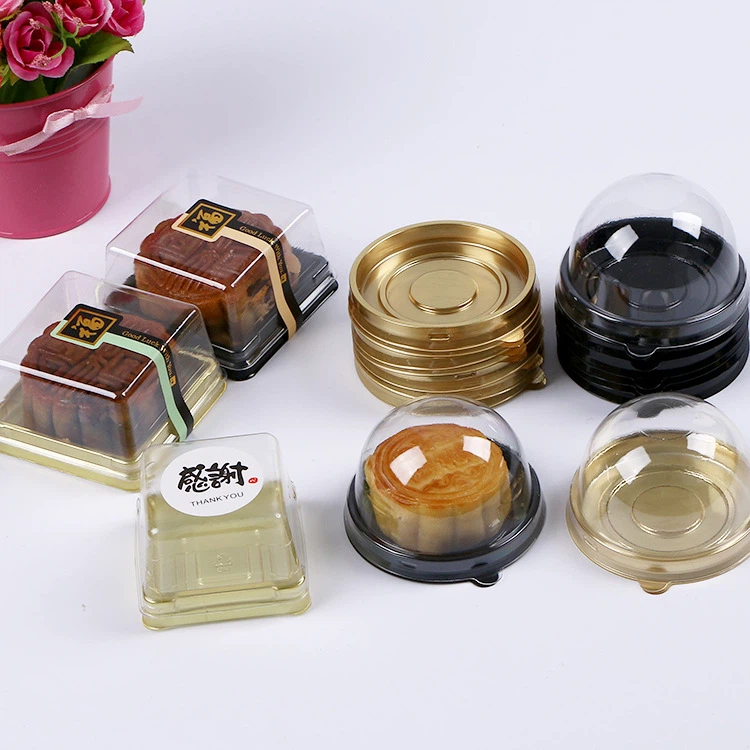

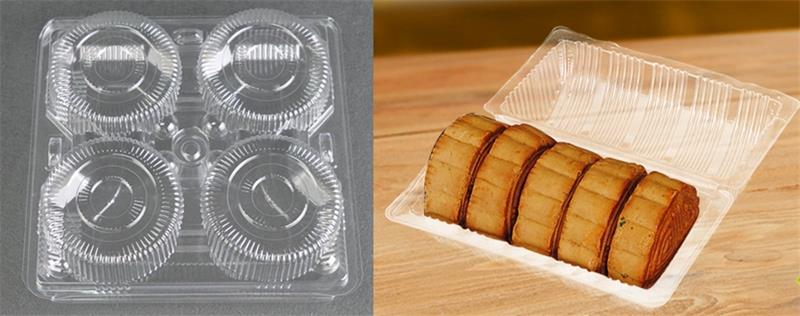

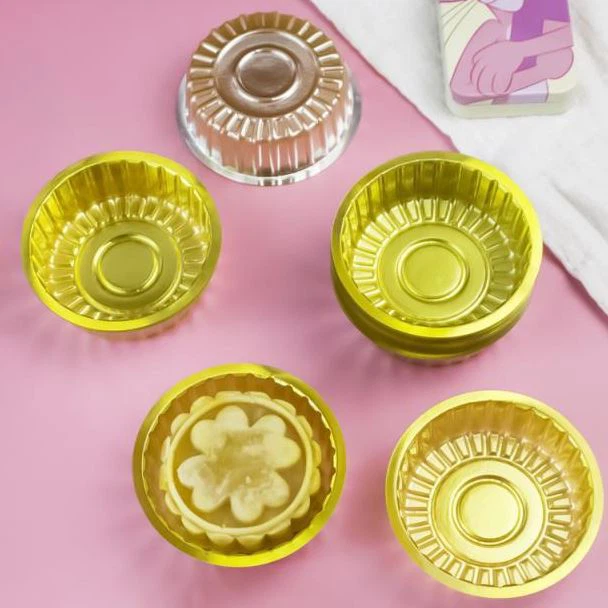

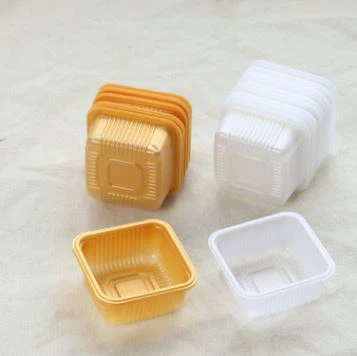

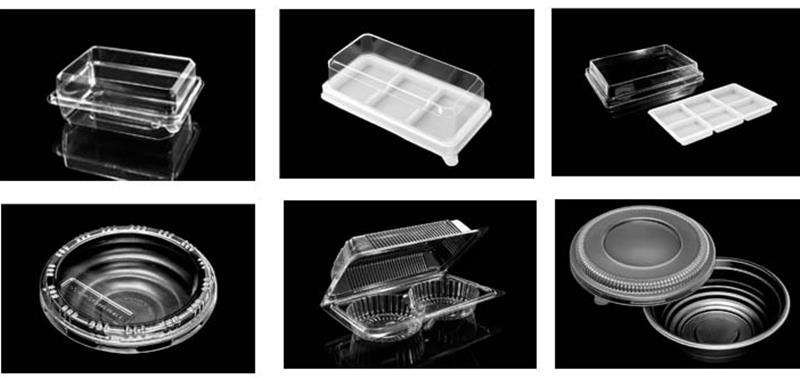

Mooncake plastic box thermoforming machine is used to producing different kinds of plastic biscuit tray, chocolate tray, electric packaging, cosmetic packaging, egg trays, food box, fruit box and etc. Suitable material is PP/PS/PET/PVC/HIPS/Corn starch and etc.
Mooncake Box Plastic Cake Box Thermoforming Machine of Technical Parameter:
| Model | TTF-520A |
| Station | Three station |
| Mould Size (Max.) | 520*400mm |
| Forming Depth (Max.) | 110mm |
| Sheet thickness | 0.2-2mm |
| Forming Speed (Max.) | 40times/min |
| Air pressure | 0.6-0.8mpa |
| Air consumption | 3.0 m³/min |
| Water consumption | 0.7m³/h |
| Sheet width (Max.) | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire |
| Rated power | 120Kw |
| Heating power | 75Kw |
| Procedure | Forming-cutting-stacking |
| Dimension | L9300*W4200*H2800mm |
| Weight | About 9.0T |

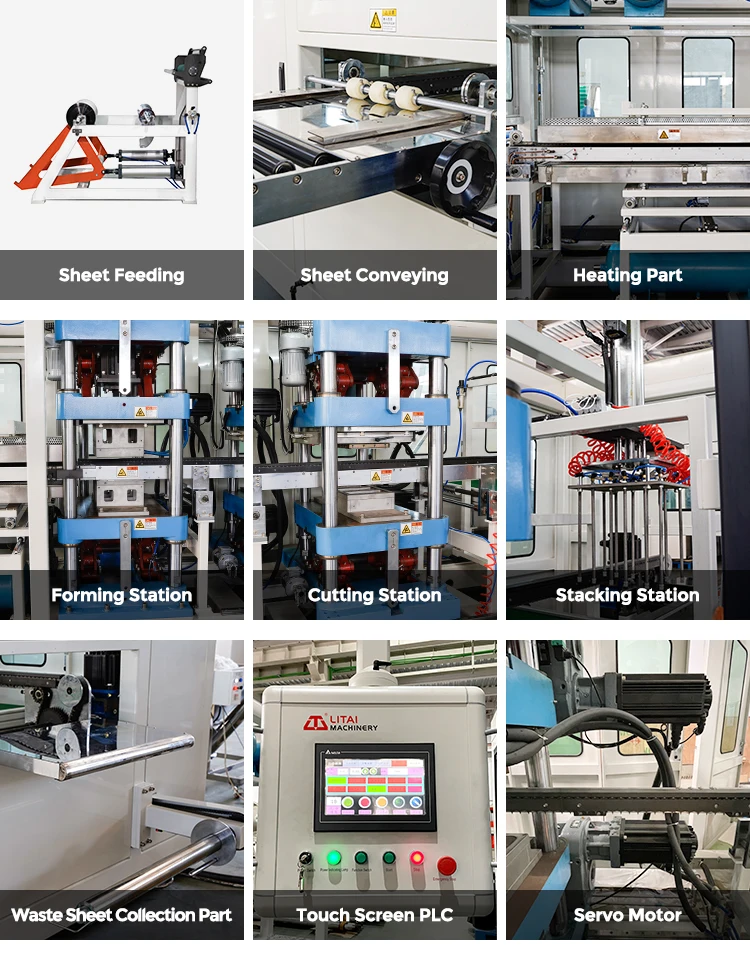

Mooncake Box Plastic Cake Box Thermoforming Machine of Features
1. The machine is fully automatic driven which only needs one labor to operate the machine
2. The machine is controlled by PLC and touch screen
3. Sheet loading part is sparated with the machine which can load the max sheet with 500KG
FAQ
1. What exhibition you will attend?
We attend Chinaplas, Germany K show, American NPE plastic show, Plasindia, PlastEurasia, Rabplast and etc.
2. What products you have?
We have PP/PS/PET sheet extruder, plastic thermoforming machine, crusher online, mould, auxiliary equipment and other machines.
3. What is the production time for your machine?
It is normally 45days after we receiving the deposit.
4. How much space does the machine need?
We will give you machine layout according to customer's factory szie
5. How long is the machine guarantee time?
It is 13months after the shipping date
