Single-line multi-station thermoforming machine

This Single-line multi-station thermoforming machine is totally driven by servo motor,which conclude forming,puching,cutting and stacking these four steps,with the great running by Aluminum rail and chain,its heating-resistance is better.Also,chains are with tooth,can hold the sheets tightly. What's more,it has some great advantages as lower noise,high efficieny,high speed and easy to adjust stretching stroke. Auxiliary equipment are chiller,air tank and air compressor.

As one of the top companies this area in China,LITAI MACHINERY produce this high qulity machine,to bring more convenient service to customers.TTF-520AF is  surely a good choice.

Single-line Multi-station Thermoforming Machine of Parameter:

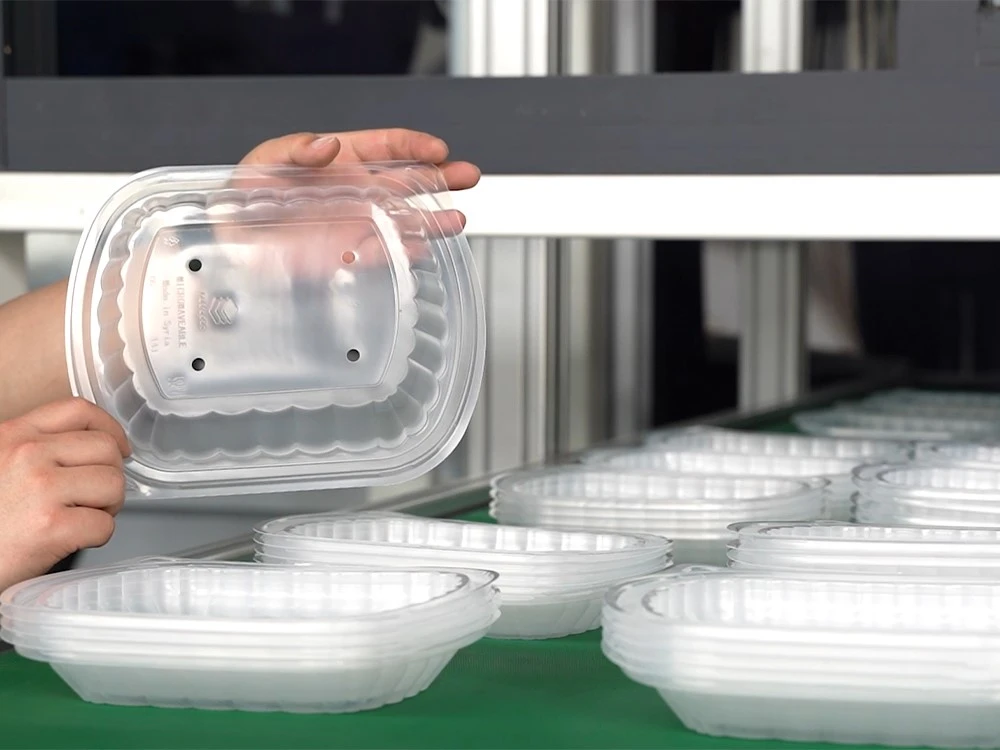

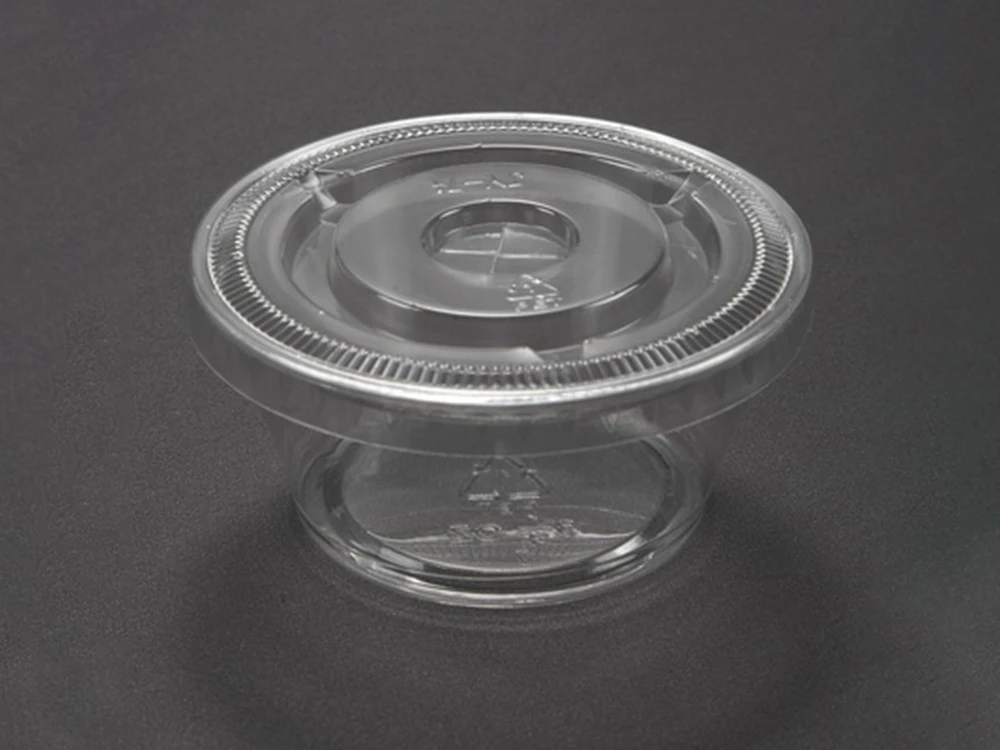

Finished Product Display

A plastic thermoforming machine is widely used in the processing of PP, PE, PVC, PS, PET, and other plastic sheets. It can produce various food packaging products such as plastic cups, plastic boxes, plastic plates, plastic trays, plastic bowls, and so on.



Structure & Design

Feeding Device

Labor & Cost Savings
Improved Efficiency & Productivity
Able to work with double roll
Max.roll diameter: 1000mm

Heating Device

Energy Efficiency save 30%
Elstein ceramic heaters, individually adjustable(line by line)
Can control the temperature by PLC directly

Operation Screen

Live Data Display – Shows temperature, pressure, and cycle status in real time.

mergency Stop & Alarms – Ensures quick response to operational hazards.

Forming Station

Max mould size:520*430mm
Max depth:110mm
Servo driven plug assist on top forming station

Punching Station

Servo motor driven, punching holes more accurate and complete Long-life, durable needle

Cutting Station

Servo motor driven Movable cutters, to adjust the cutting by itself High-quality cutters, save spare parts costs Top nut locking structure, providing stronger force

Stacking Station

Different stacking schemes can be formulated according to the customer's requirements.

Waste Recycling

Waste Rewinding System: The edge material is sent to the waste rewinding system for recycling by the conveying system.

FAQ

1: What is a thermoforming machine used for?

A thermoforming machine is primarily used to shape plastic sheets into custom packaging, trays, containers, and product components. It is widely applied in industries such as food packaging, medical device production, automotive parts, and consumer goods. By heating plastic sheets and forming them over molds, thermoforming machines provide high-efficiency, cost-effective, and precise plastic forming solutions suitable for large-scale manufacturing.

2: What type of plastic is used for thermoforming?

The most commonly used plastics for thermoforming include PP, PS, HIPS, PET, PVC, PLA etc. These materials are selected for their excellent moldability, durability, and clarity, making them suitable for packaging, trays, and protective components. Material choice depends on factors such as product application, temperature resistance, and food safety requirements, ensuring reliable performance in industrial and consumer applications.

3: Is thermoforming safe for food packaging?

Yes, thermoforming is safe for food packaging when using FDA-approved plastics such as PET, PP, or PS. Thermoformed containers and trays provide hygienic, durable, and customizable solutions for fresh, frozen, and processed foods. Proper selection of materials and adherence to food safety standards ensure that thermoforming machines produce compliant packaging suitable for commercial and retail food applications.
