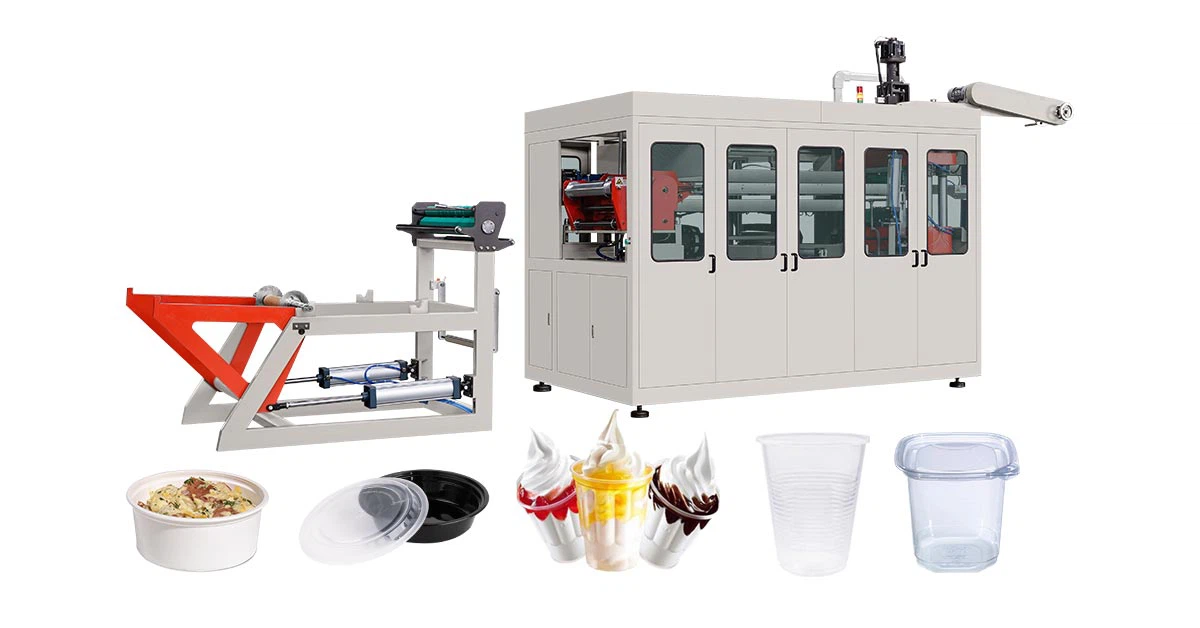

Full Automatic Cup Thermoforming Machine
Model: TQC-650B
Mould Size (Max.): 650mm x 300 mm
Forming Depth (Max.): 125mm/180mm
Sheet width (Max.): 660mm
Main Motor Power: 98Kw
Heating power: 78KW
Dimension: L7000 x W2000 x H3100mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
Full Automatic Cup Thermoforming gather forming, cutting and pile up functions. It is suitable for PP,PS,PET sheet thermal forming. Through changing mold, this machine can make disposable cup lids, food box, plate, bowl, tray, cake plate.
The completed production process is vacuum forming, positioning cutting, edgematerial separation, finished products pileup and transferring. Comparing with traditional machines, the most advantage of full automatic thermoforming machine is to save labor and plant, high production efficiency, and good looking finished products.
The TTF series full automatic thermoforming machine is studied by us on base of many years' manufacturing experience of traditional forming machine.
Sample pictures:

Parameters of Full Automatic Cup Thermoforming Machine
| Model | TQC-650B |
| Mould Size (Max.) | 650*300mm |
| Sheet width | 660mm(Max) |
| Max. Forming Depth | 125-180mm(custom height) |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 660mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 2.0m³/min |
| Water Consumption | 0.5m³/h |
| Rated Power | 98Kw |
| Heating Power | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L7000*W2000*H3100mm |
| Weight | About 6T |
FAQ
Q: where is your factory and how to get there?
A: Our factory located in Gexiang Industrial Zone, Feiyun town, Ruian city, Zhejiang province, China. Customer can fly to Wenzhou airport, then we will pick you up by car.
Q: When the machine have problems,how you can sove it?
A: First, a 1-year warranty with free consumable spare parts. Second, every machine is installed and tested for one week in our factory, so it's ready for production on arrival. if any problem occurs, send us video or photos-we're available 24/7 to guide you step by step. Fourth, if you can't solve it yourself, we can dispatch an engineer to your factory.
Q: Are all machinery your factory made?
A: Our factory make cup lid automatic thermoforming machine, plastic thermoforming machine, sheet extruder.We don't make cup filling and sealing machine.
Q: Do you have any technical supports?
A: Yes,We have a professional team of engineers who owned many installation,debug and training experiences abroad,are available to service machinery overseas.
Q: How can I know the machinery quality before I order?
A: We will invite you visiting our factory to check the machines quality,and show the machine running for you in our factory.If you don't have time to visit our factory we will record the video for you and try our best meet your requirement.We also can provide different test certificate as your requirement.
