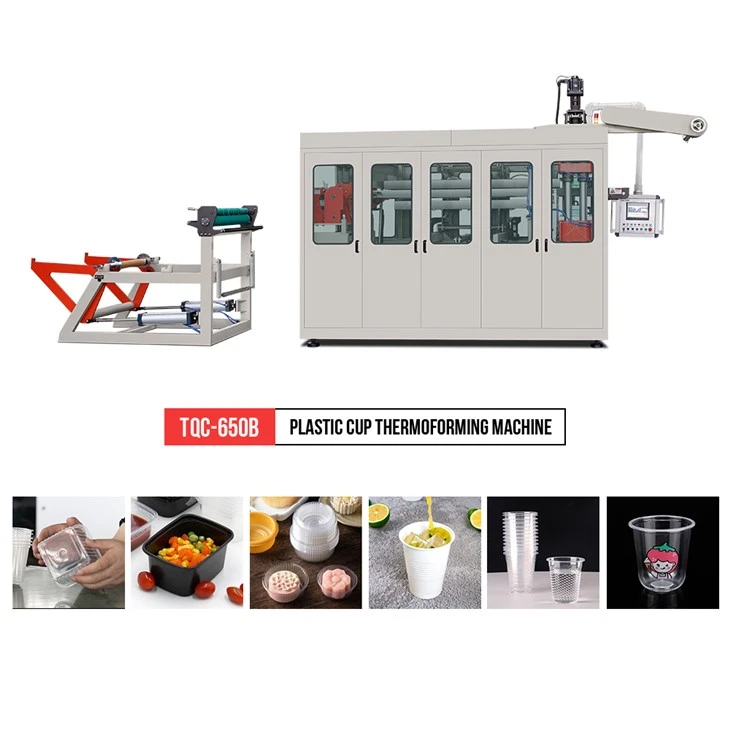

Ice Cream Cup Box Production Line

Model: TQC-650B
Mould Size (Max.): 650mm x 300 mm
Forming Depth (Max.): 125mm/180mm
Sheet width (Max.): 660mm
Main Motor Power: 98Kw
Heating power: 78KW
Dimension: L7000 x W2000 x H3100mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials

Send Inquiry

Product Introduction

This ice cream cup box production line is designed to process PP, PS, HIPS, PET, and PVC sheets into a wide range of products such as plastic cups, lids, bowls, trays, plates. It is ideal for manufacturing disposable tableware and plastic cups such as cold drink cups, yogurt cups, jelly cups, ice cream cups, snack boxes, plastic bowls, and milk tea lids.
The forming area is 650 x 320mm, forming depth 180mm, max production speed 35 cycle/min. Supports PP, PET,PVC,PS, HIPS and Biodegradable PLA sheets.

APPLICATION of Ice Cream Cup Box Production Line:

1. Ice cream cup box production line is suitable for producing different kinds of ice cream cups, yogurt cups, noodle box, bowls, lids and ect.

2. Suitable material: PP, PS, PET, HIPS, PVC

3. The model is designed with four pillar structure which is more stable.

Ice cream cup lids4.jpg

Ice Cream Cup Box Production Line of Parameters

Model	TQC-650B
Mould Size (Max.)	650*300mm
Sheet width	660mm(Max)
Max. Forming Depth	125-180mm(custom height)
Max. Forming Speed	30times/min
Sheet Thickness	0.3-1.8mm
Suitable Sheet Width	660mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Air Pressure	0.6-0.8mpa
Air Consumption	2.0m³/min
Water Consumption	0.5m³/h
Rated Power	98Kw
Heating Power	78Kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L7000W2000H3100mm
Weight	About 6T

Advantages of Our Plastic Glass Making Machine

1. Auto-Makes Cups Fast

This machine can produce 400 to 600 cups of coffee per hour, so an operator can produce 3,200 to 4,800 cups of coffee a day.

2. Works With Paper & Plastic

It takes 20 minutes to switch between materials - just switch the raw materials and adjust some Settings.

3. Makes Sturdy, Leak-Proof Cups

It uses precise folding (for paper) or molding (for plastic) to create a tight seal, so the cup won't drip or collapse when it's full.

4. Easy To Use

The control is very simple: Select your cup size from the panel (for example, 250 milliliters of coffee), fill it with a paper roll or plastic pellets, and then press "Start".
