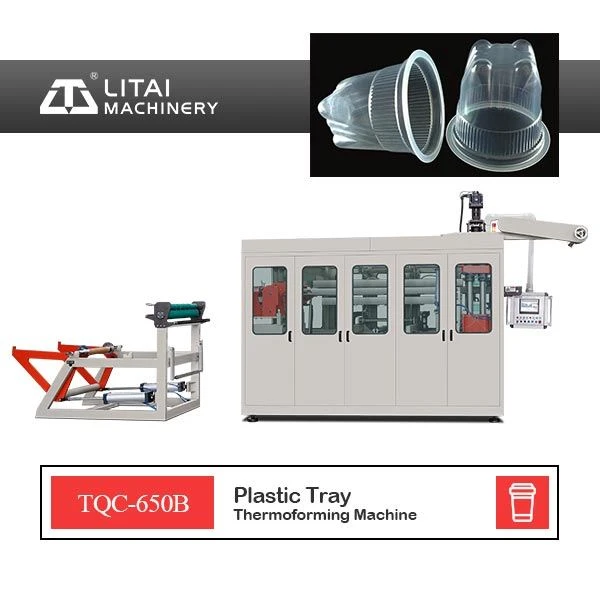

Jelly Cup Making Machine

Model: TQC-650B
Mould Size (Max.): 650mm x 300 mm
Forming Depth (Max.): 125mm/180mm
Sheet width (Max.): 660mm
Main Motor Power: 98Kw
Heating power: 78KW
Dimension: L7000 x W2000 x H3100mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials

Send Inquiry

Product Introduction

The TQC-650B is a versatile jelly cup making machine for PP, PS, HIPS, PET, PVC, PLA etc. Fully automatic PLC control for making cups, bowls, and lids. Speed: 35 cycles/min.TQC series plastic cup thermoforming machine adopts servo motor for sheet feeding and plug streching,PLS for Program,touch screen for operation,stable,low noise,high effciency,suitable for producing disposable products like plastic bowls,cups,trays,plates.etc.

Jelly Cup Making Machine of Paramonters：

Model	TQC-650B
Forming Area	650mm*320mm
Forming Depth (Max.)	125mm
Sheet thickness	0.3-1.8mm
Forming Speed (Max.)	20-25times/min
Max Sheet Width	660mm
Air pressure	0.6-0.8Mpa
Water consumption	0.5 m³/h
Rated Power	98Kw
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Power supply	AC 380V, 50Hz, Three-phase, Four-wire
Dimension	L7000W2000H3100mm
Weight	About 5T

our machine advantage

Application of Jelly Cup Making Machine:

TQC series plastic cup machine(cup jelly machine) is our latest developed core product. Sheet feeding and stretching part are driven by servo motor. Machine produces disposable products, such as plastic cup, bowl, lid, and box through the workflow of sheet feeding, sheet heating, forming, cutting and blowing, widely used and suitable for most of the customer requested. PLC for program, manual interface for operation, stable, low noise, and high efficiency.

product-1152-371

SUMMARY OF MACHINE

1. Automatic sheet feeder with square steel structure, high wear resistance, more stable, efficiently, the accuracy of feeding size could be improved by automatic feeding.

2. Material holder combines with the machine, which is controlled by cylinder, can move up and down. It is easy for operation, and saving more space.

3. Machine adopts PID temperature system, it shows high precision, and temp control tolerance＜1℃.

4. Movably mould device is conveniently to assemble and dismantle mold, and the vibration of the machine could be reduced by machine's counterbalance valve controls the opening and closing speed, good stability, conducive to forming.
