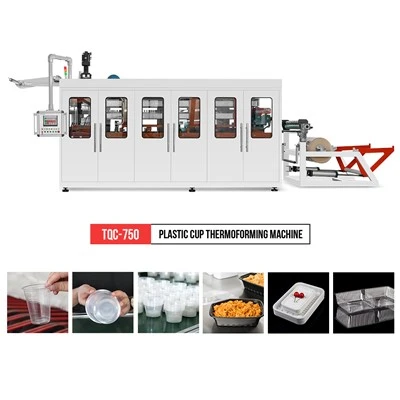

Plastic Cup Thermoforming Line
Model: TQC-750
Mould Size (Max.): 750mm x 480 mm
Forming Depth (Max.): 180mm
Sheet width (Max.): 770m
Main Motor Power: 188.55KW
Heating Power: 146KW
Dimension: L8500*W2200*H3200mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
TQC-750 servo plastic cup thermoforming machine is suitable for thermoforming of PP, PS, PET, PVC and other plastic sheets. Professional in producing all kinds of cup shape products, such as disposable plastic bowls, plastic plates, plastic water cups, disposable coffee cups, milk tea cups, plastic cup, plastic lids, plastic jelly cups, etc.
Plastic Cup Thermoforming Line
Plastic cup thermoforming machine is using PP/PS/PET/PVC/HIPS/Corn Starch sheet to make disposable plastic bowls, lids, cups, containers and etc.
Plastic Cup Thermoforming Line Parameters
| Model | TQC-750 |
| Mould Size (Max.) | 750*480mm |
| Max. Forming Depth | 125-180mm(custom height) |
| Max. Forming Speed | 30times/min |
| Sheet Thickness | 0.3-1.8mm |
| Suitable Sheet Width | 770mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 3.0m³/min |
| Water Consumption | |
| Rated Power | 173Kw |
| Heating Power | 146Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L8500*W2300*H3300mm |
| Weight | About 8T |
Features:
1.Machine is controlled by PLC and touch screen
2. Machine stretching part adopt servo motor which is stable operation
3. The whole machine is driven by hydraulic system
4. PLC and touch screen adopt Simens
