Plastic Cup Producing Line
Model: TFC-730
Mould Size (Max.): 730×320mm
Forming Depth (Max.): 180mm
Sheet width (Max.): 510-760mm
No-load Speed: 48 Cycles/Min
Main Motor Power: 11.8KW
Heating power: 150.2KW
Dimension: L11000*W2900*H3500mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials
Main Features
1.The machine adopt hydraulic pressure system, stable running, small noise/2. Completely automatic and fast production speed. 3. Easy for mould changing by forklift4. The whole machine compact. one mould has all functions, forming, cutting, cooling and finished products blowing. 5. Machine can be lubricated automatically.Parameters of Plastic Cup Producing Line
| Model | TFC-730 |
| Mould Size (Max.) | 730*320mm |
| Sheet width | 510~760mm |
| Max. Forming Depth | 180mm |
| Max. Forming Speed | 16-42times/min |
| Sheet Thickness | 0.3-2.0mm |
| Suitable Sheet Width | 510-760mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. |
| Air Pressure | 0.6-0.8mpa |
| Air Consumption | 4-5m³/min |
| Water Consumption | 15.6m³/h |
| Rated Power | 188.5Kw |
| Heating Power | 151.7Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire |
| Dimension | L10700*W3000*H3215mm |
| Weight | About 15T |
Structure & Design
Heating Device
The upper heating size is 3263x900mm with 13 zones, and the lower heating size is 3023x900mm with 12 zones. total 25 zones of PID automatic temperature control regulation.It is equipped with German ceramic heaters with insulation, quick response rate, short processing time, and save energy.
Forming Station
It adopts 17.3kw servo motor.
The upper mould can be adjusted by hand, to fit for products in different height.
The mould platform adopts high-strength ductile iron,the connecting rods of each joint are processed from high-strength cast steel (ZG45).
Robotic Arm
The machine is equipped with a suction-cup robotic arm that picks up the cups from the forming mold and places them into the stacking unit.
Cup Stacking Unit
The stacking unit is configured according to the mold layout, with vertical guide posts installed to keep the cups securely positioned between them and prevent falling. Once the preset stacking quantity is reached, the unit is transferred along the guide rail into the flipping mold.
Flipping Mold
After the cups are pushed into the flipping mold, the mold rotates 90° clockwise and moves along the upper guide rail to the conveyor. The cup pushing mechanism then ejects the cups from the mold onto the conveyor belt.
Cup Pushing Device
Driven by a servo motor, the cup pushing device slides upward to transfer the cups from the stacking unit into the flipping mold.
Conveyor Belt
The cup pushing device ejects the cups from the flipping mold onto the conveyor belt, which then transports them to the packaging machine.
Online Crushing
The production waste is conveyed through the upper track of the machine into the online crusher, where it is crushed into plastic granules for reuse.
FAQ
1. Can this machine produce Biodegradable (PLA) cups?

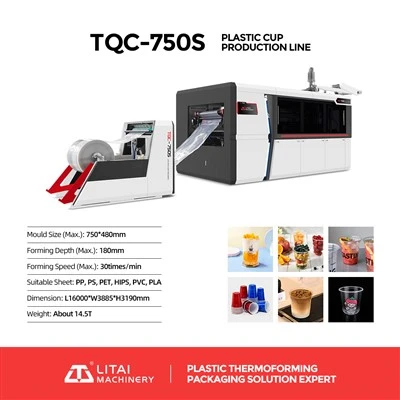

Yes, absolutely. PLA material is sensitive to temperature. The TQC-750S features German Heaters with Segment Control, allowing for precise temperature management to form PLA sheets perfectly without melting or deforming them.
2. What is the actual production capacity?
The machine runs at a maximum speed of 42 cycles per minute. Your total output depends on the mold layout (cavities). For example, if you use a 32-cavity mold for small water cups, the output would be 32 x 42 = 1,344 cups per minute.
3. How does the control system work?
The machine uses a Micro PLC system combined with a Man-Machine Interface (touchscreen). This allows the entire operation-from material feeding to cutting-to be automated and easily monitored by a single operator.
