Full Automatic Cup Machine

The full automatic cup machine is designed with most advanced thermoforming technology, a combination of mechanical, electrical and pneumatic components. And the whole system was controlled by PLC. The machine has man-interface operation, preheating by heat conduction oil roller, send sheet by chain, running by cam, press by servo-motor, forming by air pressure. It combines the preheating, material feeding, heating, drawing, forming, cutting, rewinding into one process.

It is widly used for thermoforming packaging container, such as PP/PET cups, boxes, bowls, all thin wall thickness containers. Also milk cups, jelly cups, snow cake cups, disposable drinking water cup, instant noodles bowl, snack box, food box etc.

Full Automatic Cup Machine----Technical parameters

Samples:

FAQ

1. Can this machine produce Biodegradable (PLA) cups?

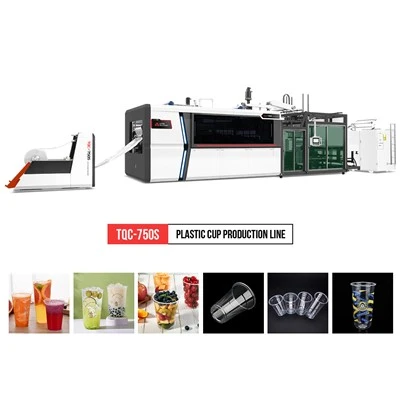

Yes, absolutely. PLA material is sensitive to temperature. The TQC-750S features German Heaters with Segment Control, allowing for precise temperature management to form PLA sheets perfectly without melting or deforming them.

2. What is the actual production capacity?

The machine runs at a maximum speed of 42 cycles per minute. Your total output depends on the mold layout (cavities). For example, if you use a 32-cavity mold for small water cups, the output would be 32 x 42 = 1,344 cups per minute.

3. How does the control system work?

The machine uses a Micro PLC system combined with a Man-Machine Interface (touchscreen). This allows the entire operation-from material feeding to cutting-to be automated and easily monitored by a single operator.
