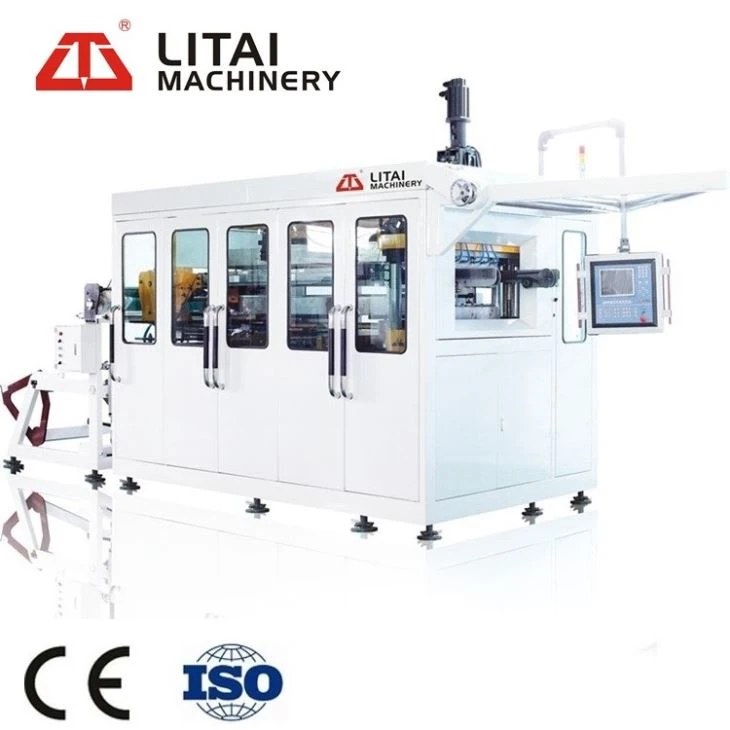

Pp Cup Forming Machine

LITAI offers a range of Pp Cup Forming Machine designed for high-speed production of disposable cups using materials such as PP, PS, HIPS, PET, PVC, PLA etc. These machines utilize thermoforming technology, combining heating, forming, cutting, and stacking into a seamless process.

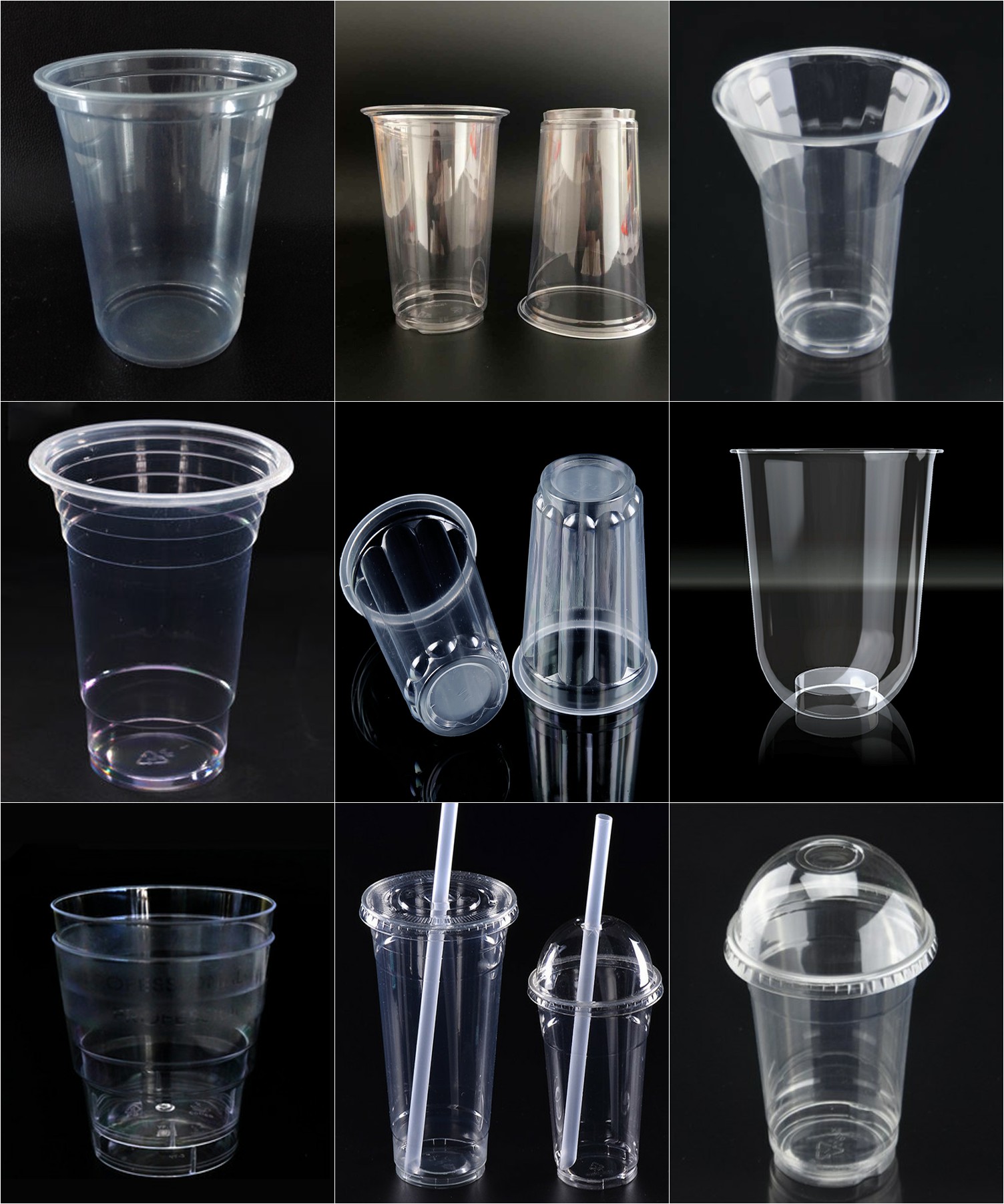

They are ideal for producing cold drink cups, ice cream cups, yogurt containers, deli cups, and even custom packaging lids, meeting the needs of both large-scale factories and OEM/ODM lines.
TQC series PET Cup Making Machine suitable for producing plastic cups(PET, PP, PS material), fruit containers, bowls, trays, fast food boxes and etc.

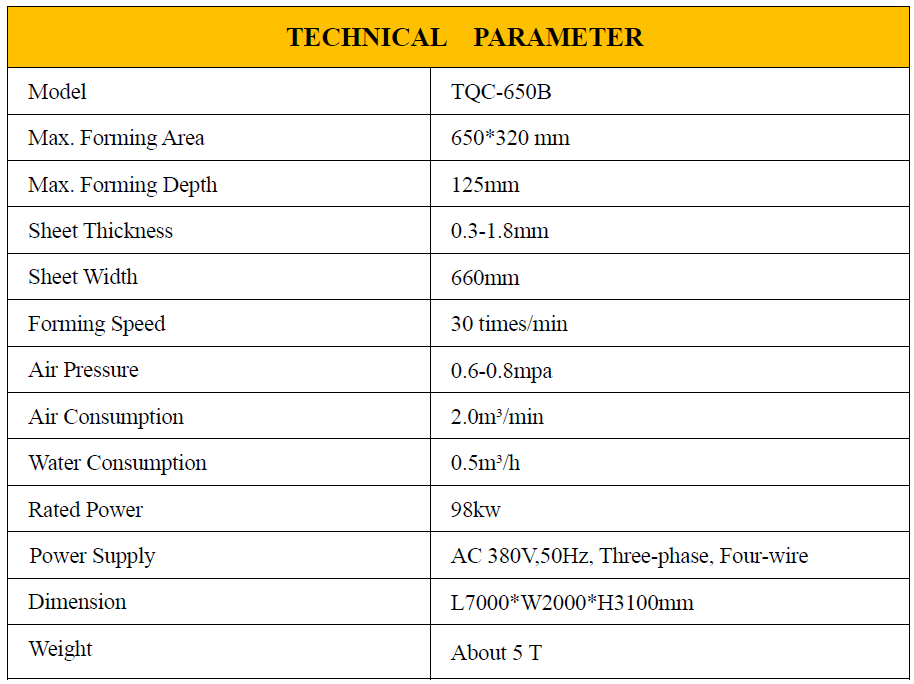

Pp Cup Forming Machine---- Parameters

Pp Cup Forming Machine----Application

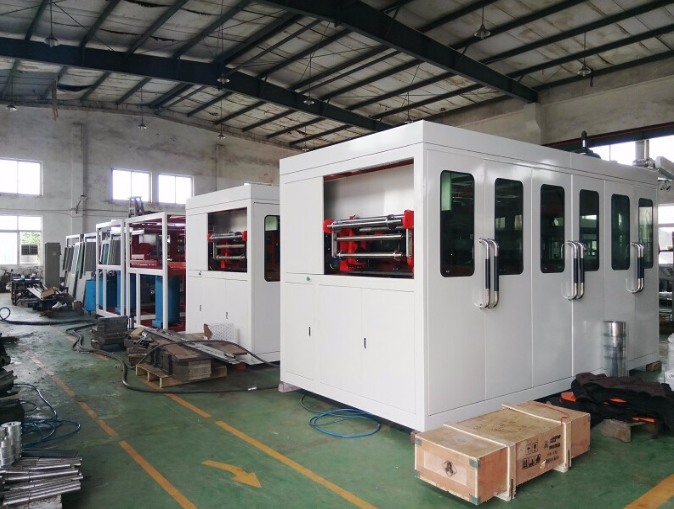

This machine adopts four-column design, which can obtain larger forming area and larger output, and adopts servo motor feeding, stretching and PLC control system, Germany energy-saving heater, saving 70% energy.Can produce all kinds of disposable plastic cups, cold drink plastic containers, yogurt, ice cream, fast food or noodles, as well as medicine, toys, periodicals, textile, light industry and other kinds of commodity packaging.

Pp Cup Forming Machine Featurer

1.Auto-unwinding rack:

Disposable plastic cup making machine designed for overweight material by using pneumatic structure. Double feeding rods are convenient for conveying materials, which not only improves the efficiency but reduces the material waste.

2.Heating:

Plastic glass making machine upper and down heating furnace, can move horizontally and vertically to ensure that the temperature of the plastic sheet is uniform during the production process. Sheet feeding is controlled by servo motor and the deviation is less than 0.01mm. The feeding rail is controlled by closed-loop waterway to reduce the material waste and cooling.

3.Mechanical arm:

Plastic cup forming machine can automatically match the molding speed. The speed is adjustable according to different products. Different parameters can be set. Such as picking position, unloading position, stacking quantity, stacking height and so on.

4.Waste winding device:

Plastic Cup Thermoforming Machine adopts automatic take-up to collect surplus material into a roll for collection. Double cylinder structure makes the operation easy and convenient. The outer cylinder is easy to take down when the surplus material reach a certain diameter, and the inner cylinder is working at the same time. This plastic glass machine operation will not interrupt the production process.

Machine Packing&Shipping

Why choose us

1. Over 18 years in plastic thermoforming machine design and manufacture.

2. An experienced R&D department design suitable machine for you.Customized is available all the time.

3. Exported to over 80 countries

4. 100% export,and almost 20% rising every year.
