Plastic Salad Bowl Making Machine

Model: TQC-650B
Mould Size (Max.): 650mm x 300 mm
Forming Depth (Max.): 125mm/180mm
Sheet width (Max.): 660mm
Main Motor Power: 98Kw
Heating power: 78KW
Dimension: L7000 x W2000 x H3100mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials

Send Inquiry

Product Introduction

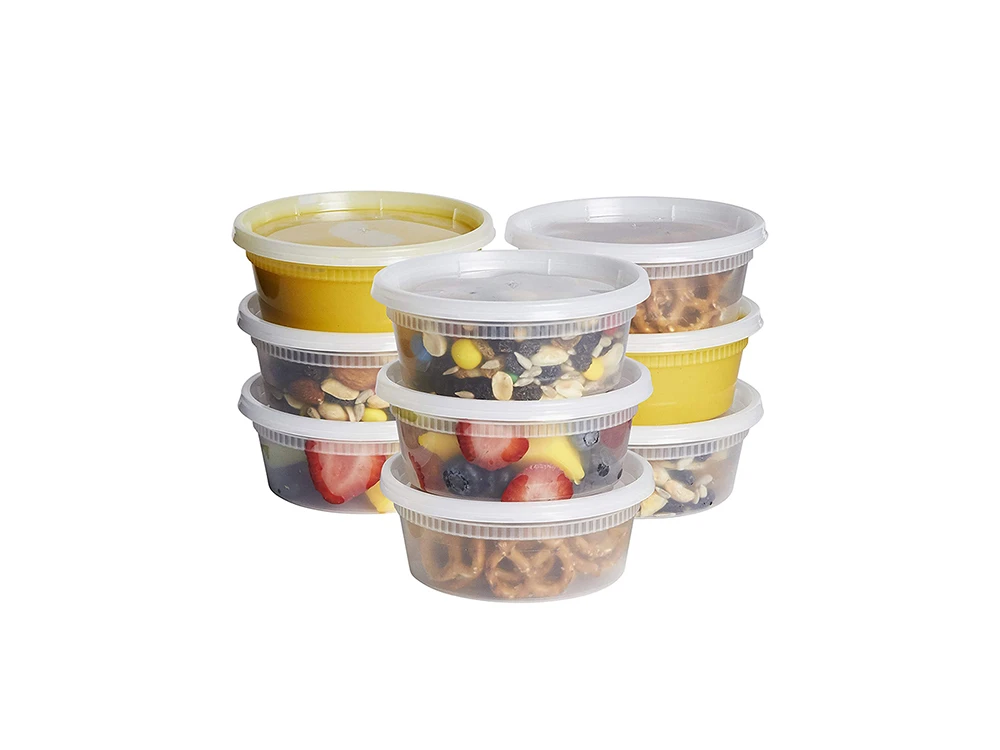

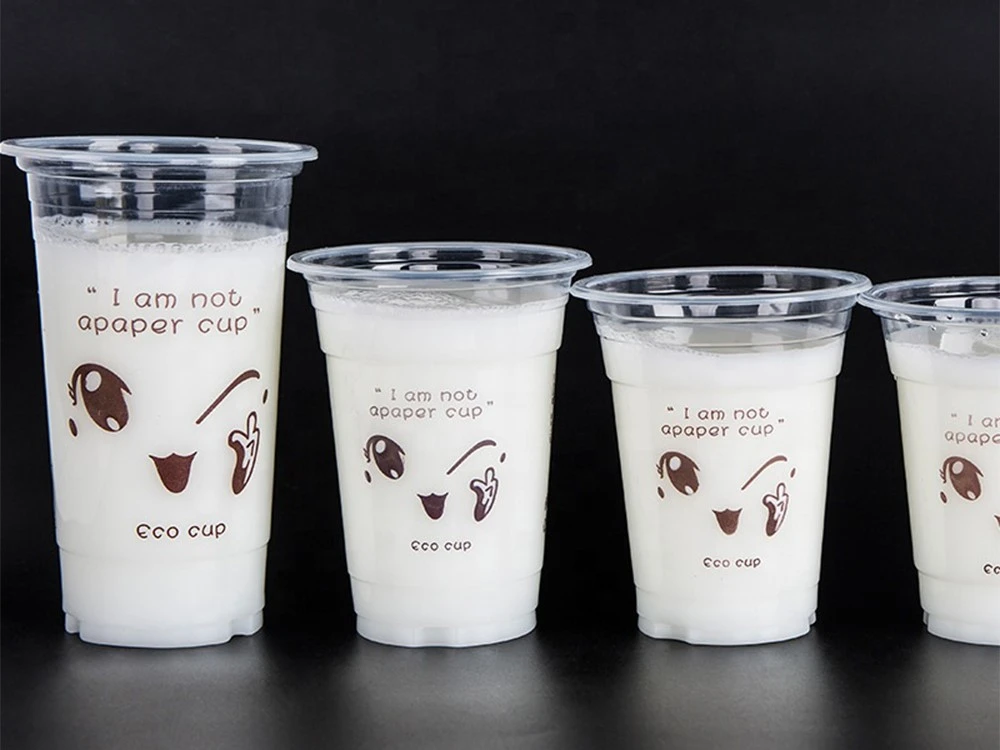

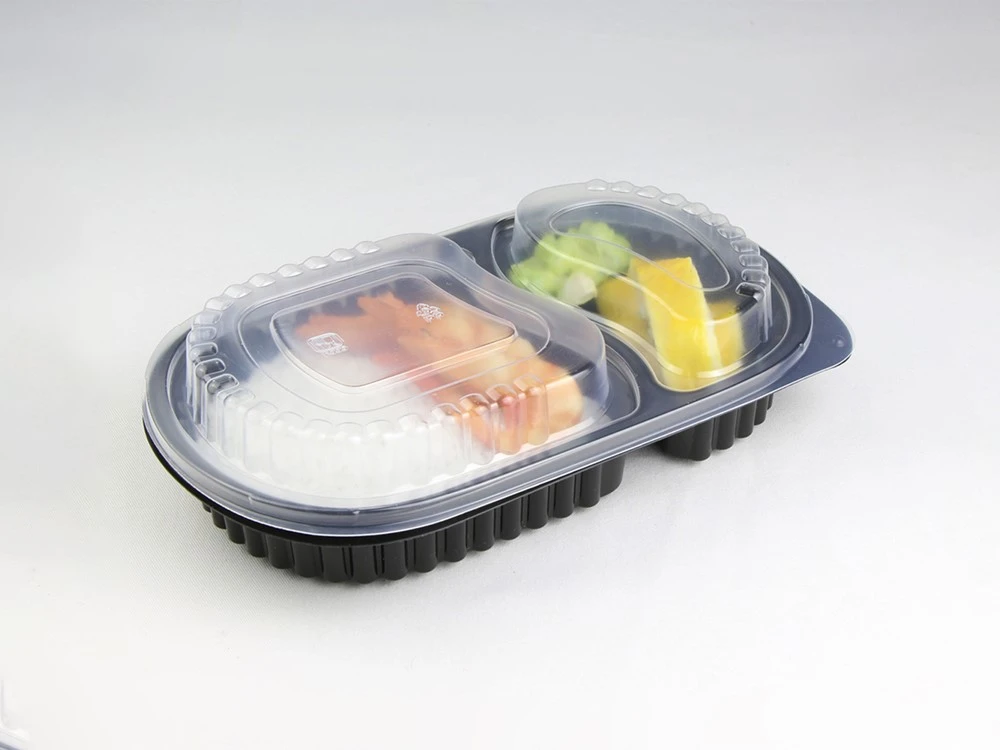

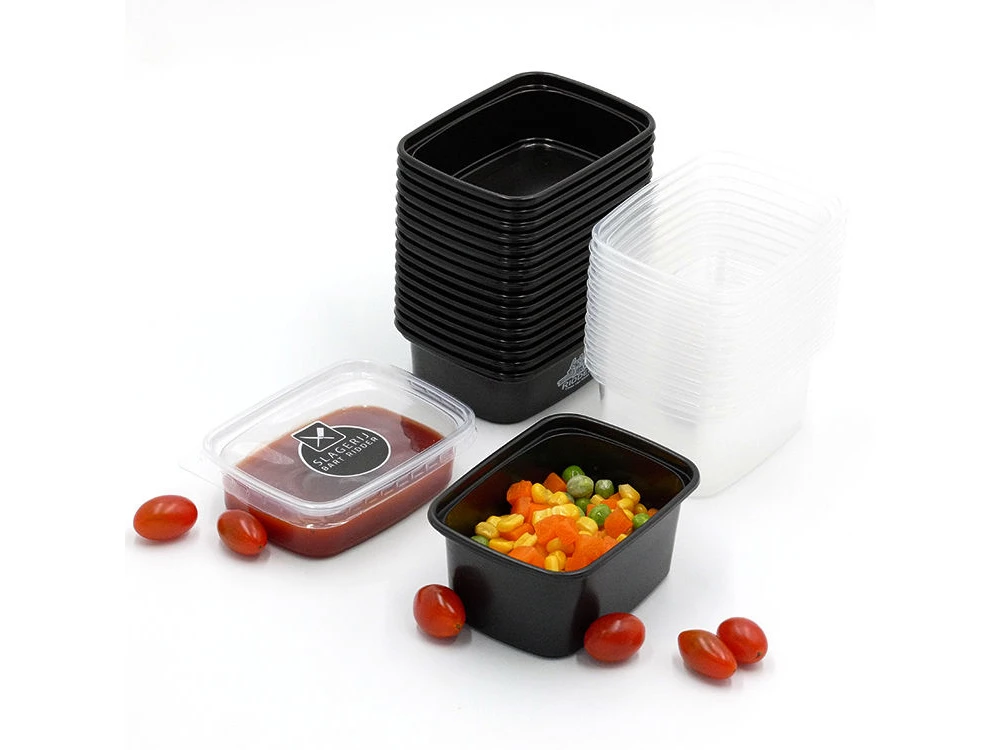

TQC-650B Plastic salad bowl making machine is suitable for producing plastic cup bowl box containers and lids. The whole machine is controlled by PLC and Servo system (Equipped with a stretching servo motor), the positioning is more accurate and the thermoforming is more stable. The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with positive pressure forming to become different kinds of jelly cups, beverage cups, packaging boxes high grade containers, and so on. The forming area is 650 x 320mm, forming depth 180mm, max production speed 35 cycle/min.

Parameter of Plastic Salad Bowl Making Machine

Model	TQC-650B
Mould Size (Max.)	650*300mm
Sheet width	660mm(Max)
Max. Forming Depth	125-180mm(custom height)
Max. Forming Speed	30times/min
Sheet Thickness	0.3-1.8mm
Suitable Sheet Width	660mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Air Pressure	0.6-0.8mpa
Air Consumption	2.0m³/min
Water Consumption	0.5m³/h
Rated Power	98Kw
Heating Power	78Kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L7000W2000H3100mm
Weight	About 6T
