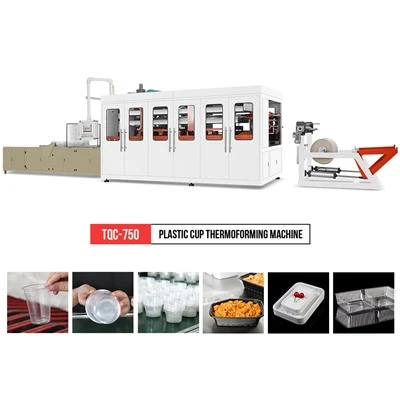

Disposable Plastic Bowl Making Machine
Plastic thermoforming machine adopts servo motor for sheet feeding and stretching, PLC for programme, touch screen for operation, stable, low noise, high efficiency. suitable for producing plastic bowl, cups, plates etc
Send Inquiry
Product Introduction
Disposable Plastic Bowl Making Machine Technical Parameter:
| Model | TQC-750S | TQC-750 | TQC-650B |
| Mould Size (Max.) | 750*480mm | 750*480mm | 650*300mm |
| Max. Forming Depth | 180mm | 125-180mm(custom height) | 125mm |
| Max. Forming Speed | 30times/min | ||
| Sheet Thickness | 0.3-1.8mm | ||
| Suitable Sheet Width | 770mm | 660mm | |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | ||
| Air Pressure | 0.6-0.8mpa | ||
| Air Consumption | 3.0m³/min | 2.0m³/min | |
| Water Consumption | 0.7m³/h | 0.5m³/h | |
| Rated Power | 207Kw | 173Kw | 98Kw |
| Heating Power | 180Kw | 146Kw | 78Kw |
| Power Supply | AC 380V,50Hz, Three-phase, Four-wire | ||
| Dimension | L7900*W2300*H3400mm | L8500*W2300*H3300mm | L7000*W2000*H3100mm |
| Weight | About 8.2T | About 8T | About 6T |
Detail of Disposable Plastic Bowl Making Machine
Disposable Plastic Bowl Making Machine Application
1.Max speed of disposable plastic bowl making machine can reach 25times/min.
2.Suitable Material: PP/PS/PET/PVC/HIPS
3. Sheet is automatically feeding by YASKAWA servo motor
4. Plug Stretching is driven by YASKAWA servo motor
