PET Plastic Sandwich Tray Making Machine
Model: TTF-820AF
Max.Forming Area: 820*650mm
Max.Forming Height: 140mm
Max.Sheet Thickness(mm): 1.2 mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire

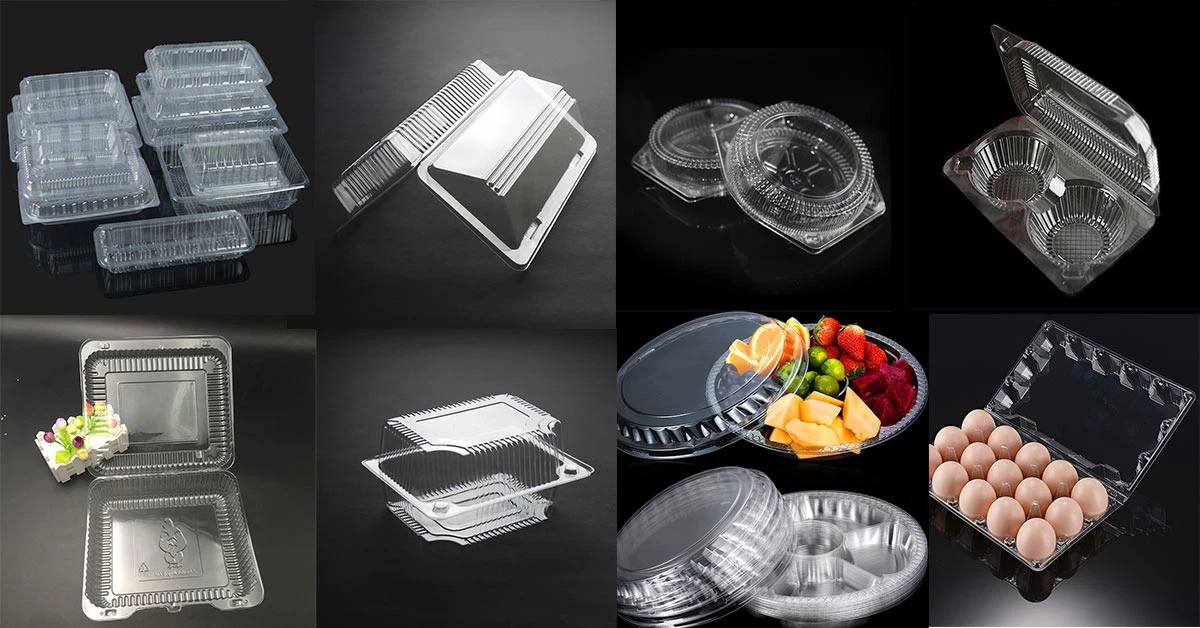

Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
Send Inquiry
Product Introduction
The machine is forming, cutting and stacking in one line. The machine is full automatic and there is no secondary pollution. It's high level of hygiene. High production safety factor. and save more than 80% of labor.
PET Plastic Sandwich Tray Making Machine of Technical Parameter
| Model | TTF-820A | TTF-700A | TTF-520A |
| Mould Size (Max.) | 820*650mm | 700*550 mm | 520*400mm |
| Forming Depth (Max.) | 140mm | 120mm | 110mm |
| Sheet thickness | 0.2-1.6mm | ||
| Forming Speed (Max.) | 30times/min | ||
| Air pressure | 0.6-0.8mpa | ||
| Air consumption | 4.0m³/min | 3.4m³/min | 3.0m³/min |
| Water consumption | 0.7m³/h | ||
| Sheet width (Max.) | 850mm | 730mm | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | ||
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire | ||
| Rated power | 199Kw | 188Kw | 120Kw |
| Heating power | 140Kw | 118Kw | 75Kw |
| Procedure | Forming-cutting-stacking | ||
| Dimension | L11800*W4300*H2800mm | L11500*W4500*H2800mm | L8200*W4650*H2670mm |
| Weight | About 16.5T | About 19.0T | About 9.0T |
PET Plastic Sandwich Tray Making Machine for Feature
- 1.The whole machine is fully servo driven and has no noise. No vibration.
- 2. It's suitable for PP/PS/PET/PVC/HIPS/Corn starch and etc.
- 3. The electric furnace automatically removes the device, and can stop and start at any time without breaking the sheet in the middle of production, without wasting the sheet;
- 4. Automatic die cutting, counting, automatic conveying
- 5. The automatic feeding system is between 600-1500KG according to the customer's practice.

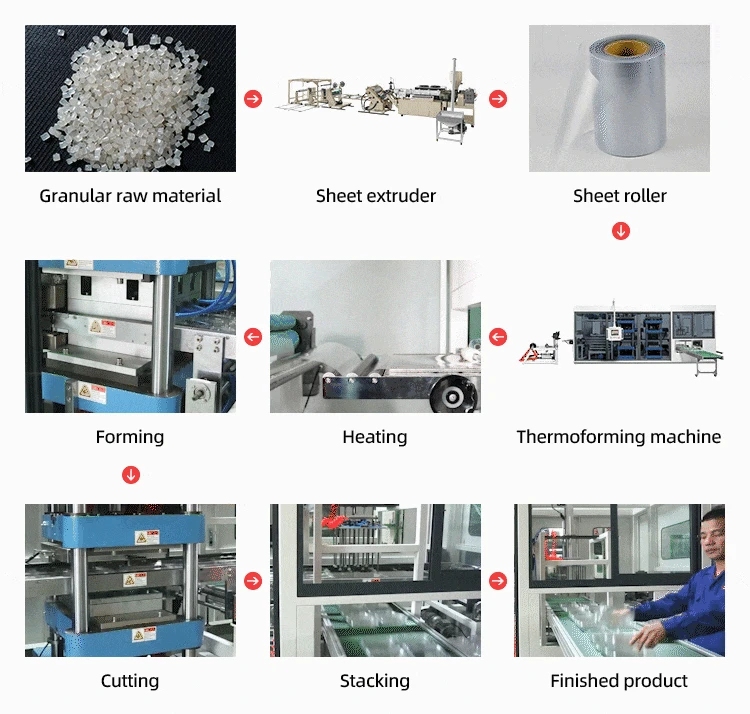

- 6. All the waste material can be crushed to granule and re-used by sheet extruder
Machine Details
Why Choose LITAI's Thermoforming Machine?
- Integrated production line: Combines forming, precision servo cutting, and automatic stacking into one efficient workflow.
- Energy and cost efficiency: Smart heaters and servo systems reduce operating costs.
- Easy to operate: Simple PLC and touchscreen interface require minimal training to get started.
- High flexibility: Adjustable parameters accommodate different materials, sizes, and product designs.
- Proven reliability: Built with industrial-grade components to minimize downtime and extend service life.
- Direct factory support: With over 20 years of professional experience in automated production equipment, LITAI provides comprehensive customer service and technical support.
