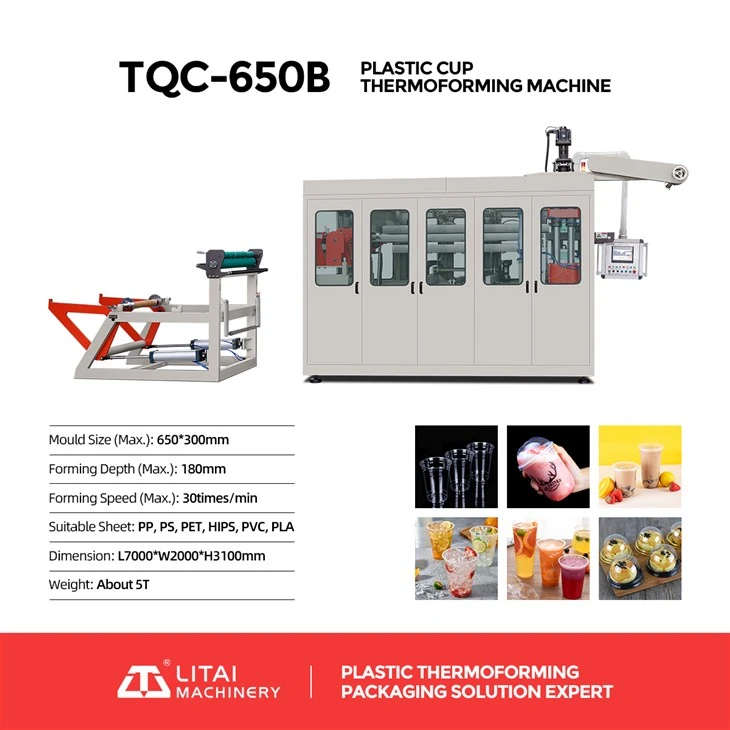

Plastic Disposable Cup Machine

Model: TQC-650B
Mould Size (Max.): 650mm x 300 mm
Forming Depth (Max.): 125mm/180mm
Sheet width (Max.): 660mm
Main Motor Power: 98Kw
Heating power: 78KW
Dimension: L7000 x W2000 x H3100mm
Suitable Sheet Material:PP / PET / PVC / PS / HIPS / GPPS / Biodegradable Materials

Send Inquiry

Product Introduction

LITAI offers a range of Plastic Disposable Cup Machine designed for high-speed production of disposable cups using materials such as PP, PS, HIPS, PET, PVC, PLA etc. These machines utilize thermoforming technology, combining heating, forming, cutting, and stacking into a seamless process.

They are ideal for producing cold drink cups, ice cream cups, yogurt containers, deli cups, and even custom packaging lids, meeting the needs of both large-scale factories and OEM/ODM lines.

Plastic Disposable Cup Machine Technical Parameters

Model	TQC-650B
Max Forming Area	650*320mm
Max Forming Depth	125mm
Sheet Thickness	0.3-1.8mm
Suitable Sheet Width	660mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Air Pressure	0.6-0.8mpa
Air Consumption	2.0m³/min
Water Consumption	0.5m³/h
Rated Power	98Kw
Heating Power	78Kw
Power Supply	AC 380V,50Hz, Three-phase, Four-wire
Dimension	L7000W2000H3100mm
Weight	About 6T

Plastic Disposable Cup Machine-----Machine Details

product-750-970

Plastic Disposable Cup Machine ----- Application

Plastic Disposable Cup Machine which follows the high efficiency, energy saving and low cost of customers, uses plastic sheet thermoforming machine. It is integrated design of machine, electricity and gas, using microcomputer and programmable controller (PLC) control, man-machine interface operation, forming process, that is, sending sheet, heating, forming, cutting, stacking. The use of links to reduce manual, convenient operation, improve production efficiency, reliability, high degree of automation, special for hot forming and product automatic flow production equipment.

product-1200-500
