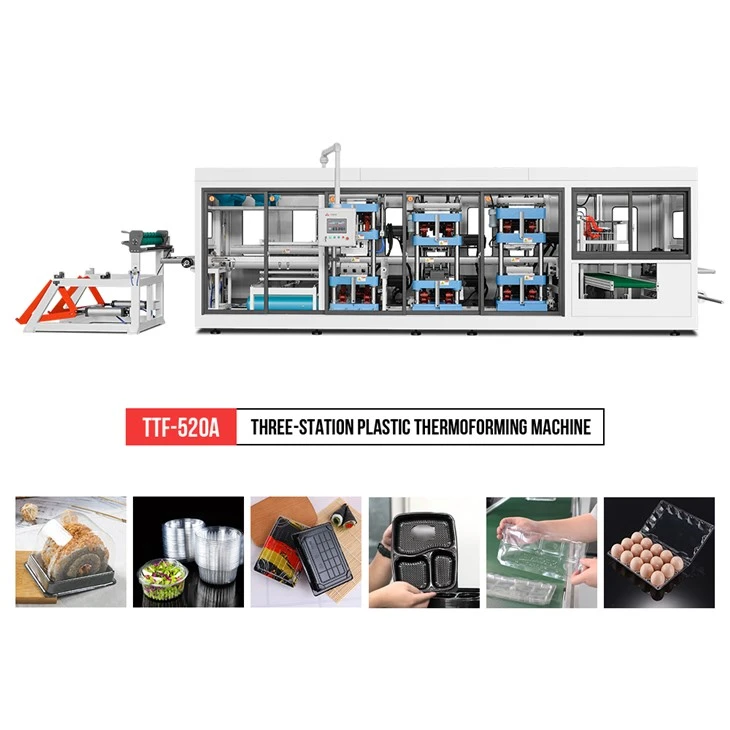

PET Disposable Plastic Food Fruit Tray Making Machine
Model: TTF-520A
Station：Three station
Max.Forming Area: 520*400mm
Max.Forming Height: 110mm
Sheet thickness：0.2-1.6mm
Forming Speed (Max.): 30times/min
Power supply: AC 380V, 50Hz, Three-phase, Four-wire
Application: trays, containers, boxes, lids, etc.
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Suitable Material: PP, PS, HIPS, PET, PVC, PLA etc.
Send Inquiry
Product Introduction
The machine is suitable for producing all sizes of packing containers under high-speed vacuum function-positive and negative pressure forming processing. Plastic containers produced by this machine can be used for packing of food, tourist goods, cosmetic products, toy, electrical elements and hard-ware of daily use, etc.It's suitable for PVC, HIPS, PET, PS, EPS, corn starch material.
SAMPLE
Parameters of PET Disposable Plastic Food Fruit Tray Making Machine
| Model | TTF-820A | TTF-700A | TTF-520A |
| Mould Size (Max.) | 820*650mm | 700*550 mm | 520*400mm |
| Forming Depth (Max.) | 140mm | 120mm | 110mm |
| Sheet thickness | 0.2-2mm | ||
| Forming Speed (Max.) | 30times/min | ||
| Air pressure | 0.6-0.8mpa | ||
| Air consumption | 4.0m³/min | 3.4m³/min | 3.0m³/min |
| Water consumption | 0.7m³/h | ||
| Sheet width (Max.) | 850mm | 730mm | 550mm |
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | ||
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire | ||
| Rated power | 199Kw | 188Kw | 120Kw |
| Heating power | 140Kw | 118Kw | 75Kw |
| Procedure | Forming-cutting-stacking | ||
| Dimension | L11800*W4300*H2800mm | L11500*W4500*H2800mm | L8200*W4650*H2670mm |
| Weight | About 16.5T | About 19.0T | About 9.0T |
Specialist of PET Disposable Plastic Food Fruit Tray Making Machine:
- 1. The machine is servo motor driven system which ensures the operation is stable and maintenance is more convenient.
- 2. Each station is fixed by four column structure which is driven by servo motor
- 3. Servo motor drives film feeding and stretch forming, with high motion accuracy and convenient control.
- 4. Germany imported heater has high thermal efficiency, low energy consumption and long service life.
